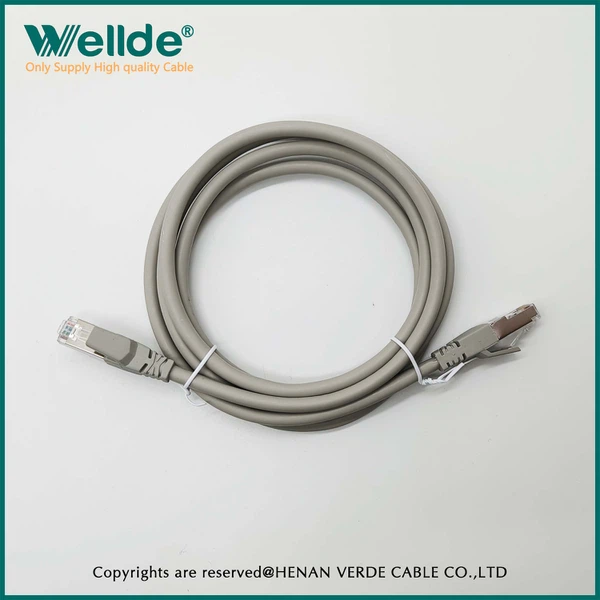

AWG24 50µ Cat6A patch cord network cable low-smoke zero-halogen sheath gray.
1,Product Description
1.The height of the crystal head after small diamond riveting is 5.89~6.15mm;
2. Short circuit and open circuit tests: 100%;
3. High-Voltage Test: 300V/DC;
4. Insulation impedance: 10MQ MIN;
5. Conductance impedance: 3Q MAX.
For further details, please refer to the accompanying blueprint.
Application Scenario: The network connection wire suitable for places such as homes, offices, and schools. Suitable for connections to switches, routers, computers, and other devices.
Packaging and Specifications:
Packaging: Each roll contains a specific number of network cables, with the exact quantity determined by the product specifications.
Length: Determined by product specifications, common lengths include 1m, 2m, 3m, and so on.
Color: Gray,and any color you want.
Note: During the installation and use process, please adhere to the product instructions and relevant safety regulations. Please avoid excessively bending or twisting the network wire to prevent damage to the internal structure or affecting transmission performance.
2,Product Data
Structure of 23awg Utp Cat6 Cable:
|
Conductor |
23 AWG copper wire |
|
Insulation |
HDPE, white insulated wire with color marks |
|
Insulation pair color |
White-blue/blue, white-orange, white-green/green, white-brown/ brown |
|
shielding |
Non- UTP type |
|
Jacket |
PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 5.8 +/- 0.5 mm |
|
Rip cord |
Without rip cord, or as per customers' option |
|
printing |
As per customers' requirements |
Testing standard:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T, 1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties of 23awg UTP Cat6 Cable:
|
Max pulling force |
80N |
|
Min. bent radius |
65mm |
|
Nominal weight |
50Kg/Km |
|
Work temperature |
-15~+70℃ |
|
Install temperature |
+5~+40℃ |
|
Combustion property |
IEC332.1,VW1,IEC332.3 or as per sheathing types |
|
Product length |
Standard length305m,or 500mm,1000mm as per requirements |
Electrical property:
|
Frequency (Mhz) |
RL (dB) |
ATT (Db/100m) |
NEXT (dB) |
PSNEXT (dB) |
ELFEXT (dB) |
Property Impedance (ohm) |
|
0.772 |
19.2 |
1.8 |
76 |
74 |
70 |
100±15 |
|
1 |
20 |
2 |
74.3 |
74.3 |
67.8 |
|
|
4 |
23 |
3.8 |
65.3 |
63.3 |
55.8 |
|
|
8 |
24.5 |
5.3 |
60.8 |
58.8 |
49.7 |
|
|
10 |
25 |
6 |
59.3 |
57.3 |
47.8 |
|
|
16 |
25 |
7.6 |
56.2 |
54.2 |
43.7 |
|
|
20 |
25 |
8.5 |
54.8 |
52.8 |
41.8 |
|
|
25 |
24.3 |
9.5 |
53.3 |
51.3 |
39.8 |
|
|
31.25 |
23.6 |
10.7 |
51.9 |
49.9 |
37.8 |
|
|
62.5 |
21.5 |
15.4 |
47.4 |
45.4 |
31.9 |
|
|
100 |
20.1 |
19.8 |
44.3 |
42.3 |
27.8 |
|
|
200 |
18 |
29 |
39.8 |
37.8 |
21.8 |
|
|
250 |
17.3 |
32.8 |
38.3 |
36.3 |
19.8 |
3,Product Video
4,Product Images
5,FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3:Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
