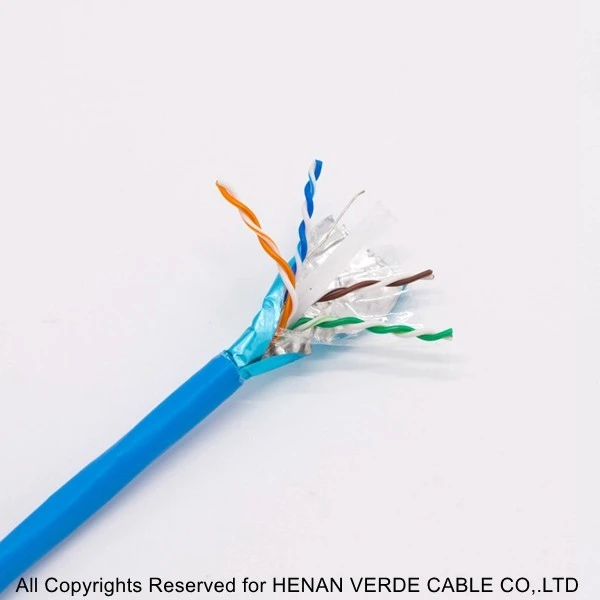

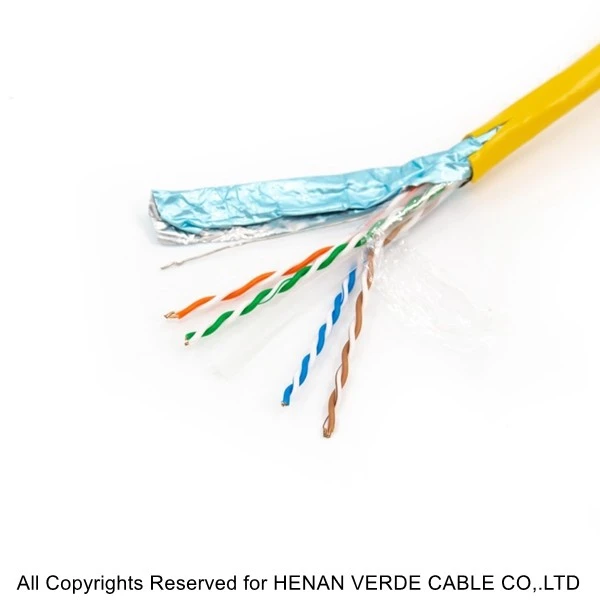

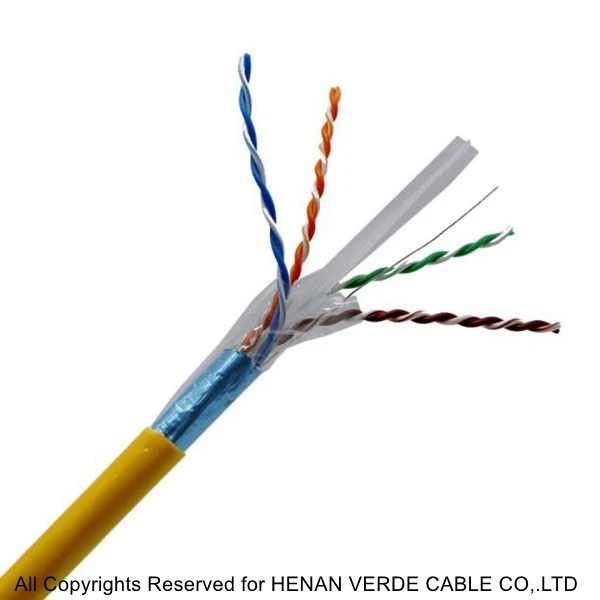

4 pair 23 AWG FTP Cat 6 Cable with Shield
Product Description:
Solid oxygen free copper conductor 4 twisted insulated pairs, Aluminum foil shield, PVC jacket Cat6 cable. Different colors such as gray black white blue orange for jacket can be customized.
Type: FTP Shield Cat6
Application: LAN, Network ,Signal and data communication, Computer, Patch cord
Structure of FTP Cat6 Cable:
Conductor | 23 AWG solid copper wire |
Insulation | HDPE |
Insulation Pair color | White-blue/blue, white-orange, white-green/green, white-brown/ brown |
Drain wire | Tinned copper wire |
shielding | Aluminum plastic composite type |
Jacket | PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 7.0 +/- 0.5 mm |
Rip cord | Cross core, poly ribbon, without rip cord, or as per customers’ option |
printing | As per customers’ requirements |
Testing standard of FTP Cat6 Cable:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties of FTP Cat6 Cable:
Max pulling force | 80N |
Min. bent radius | 65mm |
Nominal weight | 60Kg/Km |
Work temperature | -15~+70℃ |
Install temperature | +5~+40℃ |
Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
Product length | Standard length305m,or 500mm,1000mm as per requirements |
Electrical property:
Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
0.772 | 19.2 | 1.8 | 76 | 74 | 70 | 100±15 |
1 | 20 | 2 | 74.3 | 74.3 | 67.8 | |
4 | 23 | 3.8 | 65.3 | 63.3 | 55.8 | |
8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | |
10 | 25 | 6 | 59.3 | 57.3 | 47.8 | |
16 | 25 | 7.6 | 56.2 | 54.2 | 43.7 | |
20 | 25 | 8.5 | 54.8 | 52.8 | 41.8 | |
25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | |
31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.8 | |
62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | |
100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | |
200 | 18 | 29 | 39.8 | 37.8 | 21.8 | |
250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
Our cable workshop View
