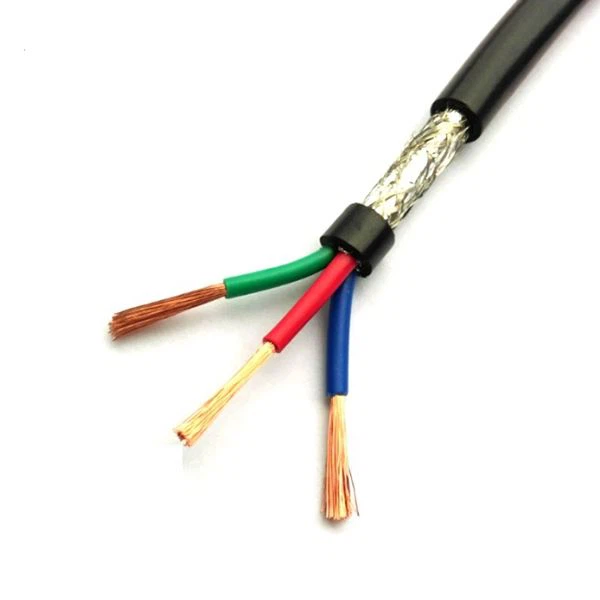

Structure for 3.5mm Digital Audio Cable:

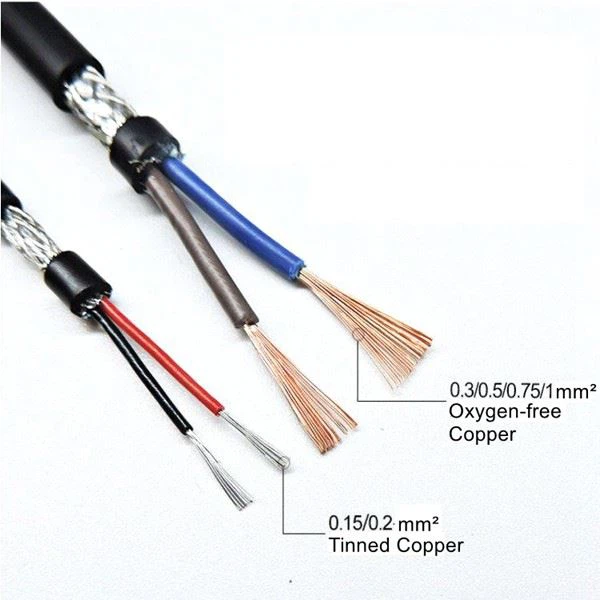

Conductor: oxygen-free soft copper wire/ Tinned soft copper wire
Insulation: Polyolefin, foamed polyolefin, PVC
Shielding: Aluminum foil, Copper wire braiding or winding
Sheath: PE，PVC
Number of pairs: 1~200
Copper mesh weave density: ≥80%
Application of 3.5mm Digital Audio Cable:
The 3.5mm digital audio cable is mainly used to transmit audio signals. It can transmit analog signals of 150KHz and below and digital signals of 2048kbit/s and below. Under certain conditions, it can also be used to transmit digital signals of 2048kbit/s or more. The audio cable is suitable for the city communication cable designed for the city communication network, and the telecommunication lines in the city, suburbs and local areas of factories and mines.
Electrical Characteristics:
Rated voltage: 300V/300V 300V/500V
Application temperature (℃): -40～60
Packing length: 100 meters/roll
Feature of 3.5mm digital audio cable:
Insulated cores of different colors are twisted into pairs.
The high-purity oxygen-free copper core has strong current load capacity, is not easy to generate heat, and has low resistance.
The environmentally friendly PVC material has the characteristics of super insulation, flame retardant, abrasion resistance, frost resistance, tensile resistance and corrosion resistance.

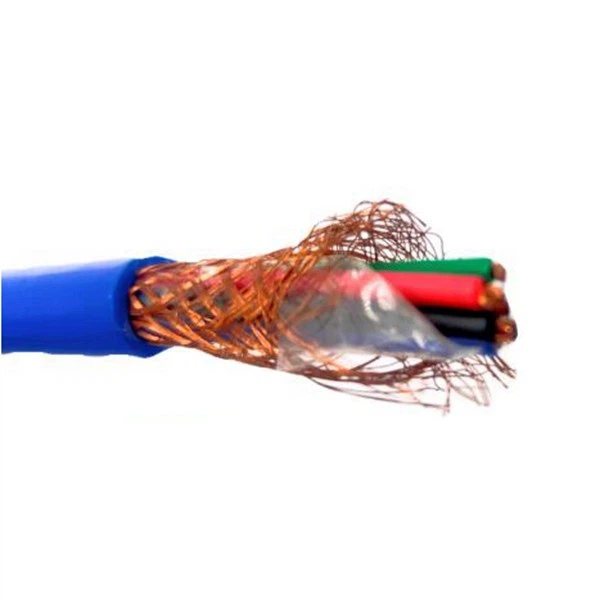

The shielding adopts a double-layer shielding structure with high shielding weave density. The transmission signal does not leak, and the signal transmission performance is better.

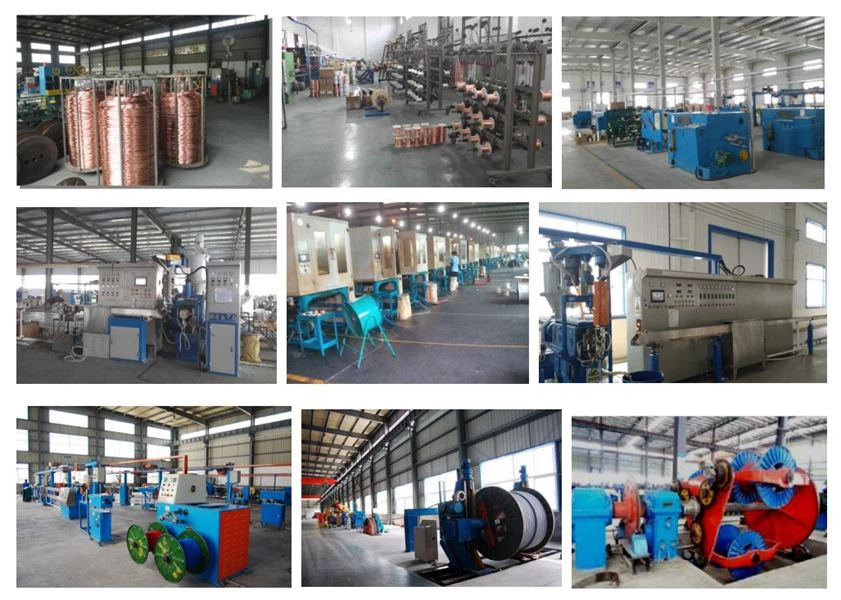

Workshop View:

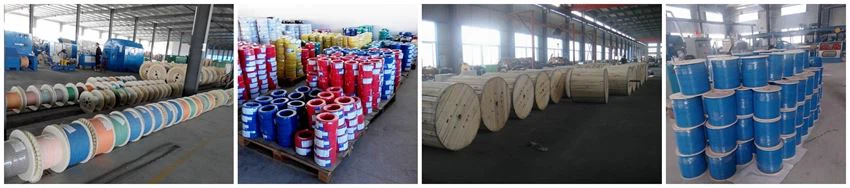

Packing：
