Henan Verde Cable Co., Ltd. is one of the leading manufacturers and suppliers of outdoor utp cat5e in China, featured by quality products and good price. If you're going to wholesale durable outdoor utp cat5e made in China, welcome to get price list from our factory.
Outdoor UTP Cat5e Description:

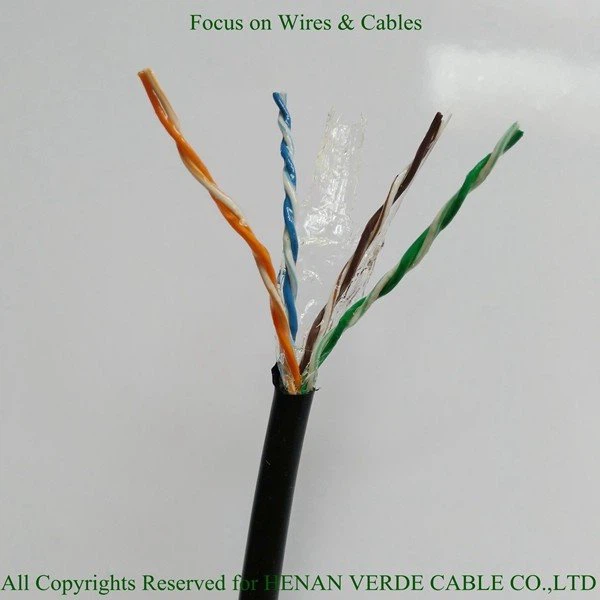

Oiled jelly filled water resistant proof Cat5e UTP cable
Type: UTP Cat 5E
Application: Outdoor Water resistant LAN Cable Network Cables
Structure of Outdoor UTP Cat5e:
Conductor | 24 AWG copper wire |
Insulation | HDPE or foamed PE, white insulated wire with color marks |
Pair color | White-blue/blue,white-orange,white-green/green,white-brown/brown |
shielding | Non UTP type |
Jacket | LLDPE, nominal diameter 6.1+/- 0.5 mm |
Rip cord | Without rip cord,or as per customers’ option |
Auxiliaries | Filling water resistance jelly |
printing | As per customers’ requirements |
Testing standard of Outdoor UTP Cat5e:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
Max pulling force | 50N |
Min. bent radius | 45mm |
Nominal weight | 46Kg/Km |
Work temperature | -15~+70℃ |
Install temperature | +5~+40℃ |
Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
Product length | Standard length305m |
Electrical property:
Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
0.772 | 16.4 | 1.85 | 67 | 64 | 67.8 | 100±15 |
1 | 17 | 2.04 | 65.3 | 62.3 | 63.8 | |
4 | 20 | 4.1 | 56.3 | 53.3 | 51.7 | |
8 | 21 | 5.8 | 51.8 | 48.8 | 45.7 | |
10 | 22 | 6.5 | 50.3 | 47.3 | 43.8 | |
16 | 20 | 8.2 | 47.3 | 44.3 | 39.7 | |
20 | 20 | 9.3 | 45.8 | 42.8 | 37.7 | |
25 | 22.5 | 10.4 | 44.3 | 41.3 | 35.8 | |
31.25 | 18 | 11.7 | 42.9 | 39.9 | 33.9 | |
62.5 | 16 | 17 | 38.4 | 35.4 | 27.8 | |
100 | 15 | 22 | 35.3 | 32.3 | 23.8 |
Electrical property:
Frequency (Mhz) | NEXT(dB/100m) | Return loss(dB/100m) | ||||||
1m | 2m | 5m | 10m | 1m | 2m | 5m | 10m | |
1 | 65 | 65 | 65 | 65 | 19.8 | 19.8 | 19.8 | 19.8 |
4 | 65 | 65 | 65 | 65 | 21.61 | 21.61 | 21.61 | 21.61 |
10 | 65 | 65 | 64.5 | 62.9 | 22.8 | 22.8 | 22.8 | 22.8 |
16 | 62.6 | 62 | 60.5 | 59 | 23.41 | 23.41 | 23.41 | 23.41 |
20 | 60.7 | 60.1 | 58.6 | 57.2 | 23.7 | 23.7 | 23.7 | 23.7 |
31.25 | 56.7 | 56.2 | 54.9 | 53.6 | 23.05 | 23.05 | 23.05 | 23.05 |
62.5 | 51 | 50.4 | 49.2 | 48.1 | 20.04 | 20.04 | 20.04 | 20.04 |
100 | 47 | 46.4 | 45.3 | 44.4 | 18 | 18 | 18 | 18 |
250 | 39.2 | 38.8 | 38.1 | 37.6 | 14 | 14 | 14 | 14 |
Packing: 305meter per box, or 500meter per drum.OEM can be done.
Packing design for Network data cable
One View of Cable Workshop
