Product details of AWG26 Cat6 UTP patch cord with crystal head, blue color.
1,Product Description
1,The height of the crystal head after small steel riveting is 5.89~6.15mm;
2,Short circuit and open circuit tests: 100%.
3,High-Voltage Test: 300V/DC;
4, Insulation impedance: 10MQ MIN;
5, Conductance impedance: 3Q MAX.

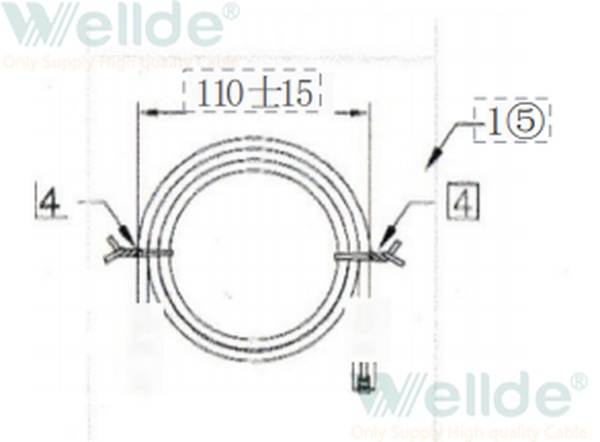

For further details, please refer to the accompanying blueprint.
The AWG26 Cat6 UTP patch cord with crystal head, available in blue, is a high-quality network wire suitable for various network connection requirements.
The product utilizes 26 AWG (American Wire Gauge) copper wire, ensuring excellent conductivity and transmission capability.
The Cat6 rating ensures that this network cable can support frequencies up to 1000MHz, meeting the demands of modern high-speed networks.
The design of UTP (Unshielded Twisted Pair) provides more stable signal transmission and better interference resistance.
The blue appearance makes it easy to identify and install.
Product Features:
High-quality copper wire: Utilizing 26 AWG copper wire ensures excellent conductivity and transmission capability.
Cat6 rating: Supporting frequencies up to 1000MHz, meeting the demands of modern high-speed networks.
UTP design: Provides more stable signal transmission and better interference resistance.
Blue exterior: easy to identify and install.
With a crystal head, convenient for connection and insertion, suitable for various network devices.
2,Product Data
Structure of 23awg Utp Cat6 Cable:
|
Conductor |
23 AWG copper wire |
|
Insulation |
HDPE, white insulated wire with color marks |
|
Insulation pair color |
White-blue/blue, white-orange, white-green/green, white-brown/ brown |
|
shielding |
Non- UTP type |
|
Jacket |
PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 5.8 +/- 0.5 mm |
|
Rip cord |
Without rip cord, or as per customers' option |
|
printing |
As per customers' requirements |
Testing standard:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T, 1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties of 23awg UTP Cat6 Cable:
|
Max pulling force |
80N |
|
Min. bent radius |
65mm |
|
Nominal weight |
50Kg/Km |
|
Work temperature |
-15~+70℃ |
|
Install temperature |
+5~+40℃ |
|
Combustion property |
IEC332.1,VW1,IEC332.3 or as per sheathing types |
|
Product length |
Standard length305m,or 500mm,1000mm as per requirements |
Electrical property:
|
Frequency (Mhz) |
RL (dB) |
ATT (Db/100m) |
NEXT (dB) |
PSNEXT (dB) |
ELFEXT (dB) |
Property Impedance (ohm) |
|
0.772 |
19.2 |
1.8 |
76 |
74 |
70 |
100±15 |
|
1 |
20 |
2 |
74.3 |
74.3 |
67.8 |
|
|
4 |
23 |
3.8 |
65.3 |
63.3 |
55.8 |
|
|
8 |
24.5 |
5.3 |
60.8 |
58.8 |
49.7 |
|
|
10 |
25 |
6 |
59.3 |
57.3 |
47.8 |
|
|
16 |
25 |
7.6 |
56.2 |
54.2 |
43.7 |
|
|
20 |
25 |
8.5 |
54.8 |
52.8 |
41.8 |
|
|
25 |
24.3 |
9.5 |
53.3 |
51.3 |
39.8 |
|
|
31.25 |
23.6 |
10.7 |
51.9 |
49.9 |
37.8 |
|
|
62.5 |
21.5 |
15.4 |
47.4 |
45.4 |
31.9 |
|
|
100 |
20.1 |
19.8 |
44.3 |
42.3 |
27.8 |
|
|
200 |
18 |
29 |
39.8 |
37.8 |
21.8 |
|
|
250 |
17.3 |
32.8 |
38.3 |
36.3 |
19.8 |
3,Product Video
4,Product Images
5,FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3:Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
