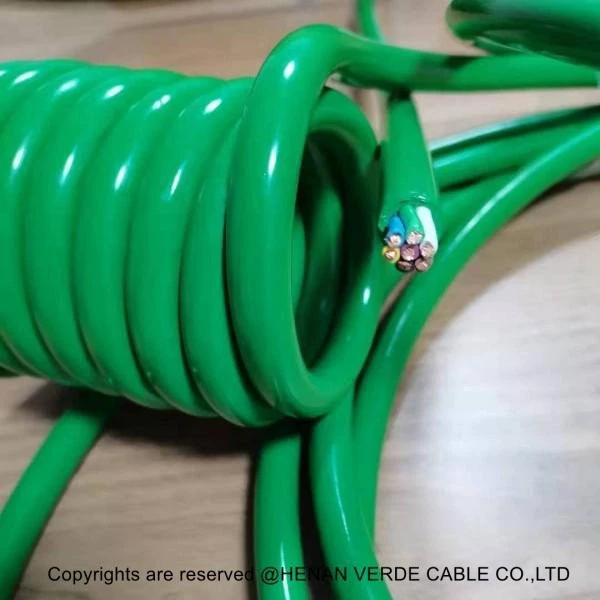

Spiral Power Cable

Spiral Power Cable 1.With more than 15 years experience in cable field,we only produce high quality cable.
2.Spiral coiled cable is with excellent characters with water and Oil Resistance,it can be used for outdoor.
3.Highly elastic and flexible,traveling freely up and down.The coil spiral cable can be widely used for power supplying,care and truck,industrial automation devices and machines.

Send Inquiry

Description

Structure for Coiled Spiral Power cable:

Conductor: fine stranded oxygen free copper wire,

Insulation: PE or PVC or PP insulation

Sheath /Jacket: PUR , or TPE, or PVC

Stretched expanding length: 1.0 m-25.5m
Color: shiny gloss or fog different colors : Black, Red , Green, Blue , Yellow, Orange, White, different colors can be customized.

Spiral Power Cable Application:

For rated AC voltage 450/750V or DC voltage 6V-1000V below .For moving lamps and street lights, for truck and car, for Industrial mechanical machines and equipment,Robot, Medical equipment, Sensor,Electrical Automatic Control System, Electric Instrument , Battery, Interphone , Home Electrical Appliance, and so on.

Structure & Specifications:

Conductor: Tinned copper wire, Solid or multi-strands

Insulation material: PVC / PE / PP / PU /TPE
Sheath material: PU / TPU / PVC
Operating temperature: cold -65 ℃,high temperature 105℃
Coil Spring Length: arbitrary (customized according to customer requirements)

Good flexibility and elasticity Elongation length of up to 3.5-4 times the original length of spring. Have good cold resistance, flame resistance, oil and abrasion resistance. Occasions according to different requirements of production of various kinds of spiral-type spring line.

Coiled Spiral Power Cable Range we can produce:

Nominal cross section: 0.09mm ,0.12, 0.25mm, 0.50mm,1.0mm ~4mm2
Numbers of cores: 1~30 core
Length of coil spring: customized as per your request

Drawing for spiral coil cable
