Henan Verde Cable Co., Ltd. is one of the leading manufacturers and suppliers of flexible high temperature silicone hook up wire in China, featured by quality products and good price. If you're going to wholesale durable flexible high temperature silicone hook up wire made in China, welcome to get price list from our factory.

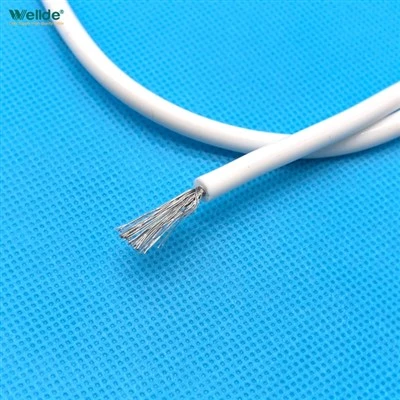

Product overview of silicone cable
When ordinary PVC cables become soft, crack, or fail in high temperature environments, silicone wires still operate stably. The product adopts tin plated copper conductor and high-quality silicone insulation layer, with excellent temperature resistance (-60 ° C~+200 ° C) and soft and easy to bend characteristics.
Product advantages of silicone cable
Extreme temperature resistance: Long term working temperature -60 ° C~+200 ° C, not afraid of high heat environment
Soft and easy to bend: It remains flexible even at low temperatures, making wiring and installation extremely convenient
Tin plated copper conductor: good conductivity, anti-oxidation, easy to solder
Product Information Sheet
| Item | Description |
|---|---|
| Product Name | High-temperature resistant silicone rubber wire |
| Conductor | Stranded tinned copper wires |
| Insulation Material | Extruded silicone |
| Rated Temperature | -60°C ~ +200°C |
| Rated Voltage | 600V |
| Available Colors | Red / Black / White / Orange / Custom |
| Available Sizes | 30AWG - 10AWG (Larger sizes available upon custom request) |
| Packaging | Coil, spool or cut to customer's requirement |
Product Specification Reference Table
The following data is for reference only. If you need precise tolerances and certification documents, please contact us to request the official specification sheet.
| Wire gauge | Conductor structure | Conductor diameter(mm) | Insulation thickness(mm) | Outer diameter(mm) | Reference ampacity(A) |
|
10AWG |
105 × 0.25 |
3.0 |
1.5 |
6.0 |
55 |
|
12AWG |
84 × 0.25 |
2.6 |
1.4 |
5.4 |
45 |
|
14AWG |
57 × 0.25 |
2.2 |
1.3 |
4.8 |
35 |
|
16AWG |
30 × 0.25 |
1.6 |
1.2 |
4.0 |
25 |
|
18AWG |
26 × 0.25 |
1.4 |
1.2 |
3.8 |
20 |
|
20AWG |
26 × 0.16 |
1.1 |
1.2 |
3.5 |
15 |
|
22AWG |
17 × 0.16 |
0.85 |
1.2 |
3.3 |
10 |
|
24AWG |
7 × 0.20 |
0.67 |
1.2 |
3.1 |
6 |
|
26AWG |
7 × 0.16 |
0.55 |
1.2 |
2.9 |
4 |
|
30AWG |
7 × 0.10 |
0.35 |
1.2 |
2.5 |
2 |
Application Scenarios
Lithium batteries and new energy, model aircraft, drones, home appliances, automotive wiring harnesses, etc.
About Us
We are a factory specializing in the research and manufacturing of high-temperature cables and special cables, with over 10 years of experience. Support OEM/ODM customization, color and length customization, and provide UL, CE, RoHS certification documents. Our products are exported to more than 50 countries and regions including Europe, America, Southeast Asia, etc.
FAQ
Q1: What is the maximum tolerance of this silicone wire?
A1: The long-term continuous working temperature can reach+200 ° C, and it can withstand higher temperatures in the short term
Q2: Does the wire have UL certification?
A2: Certificates and testing reports can be obtained by contacting.
Q3: Can I customize the color, length, and wire gauge?
A3: Sure. Support customization of any Pantone color and cutting according to length, with a wire gauge range of 30AWG – 4AWG (customizable).
Q4: What are the minimum order quantity and delivery time?
A4: The minimum order quantity can be negotiated (supporting sample orders), and the regular delivery time is 7-15 days, depending on the quantity.
