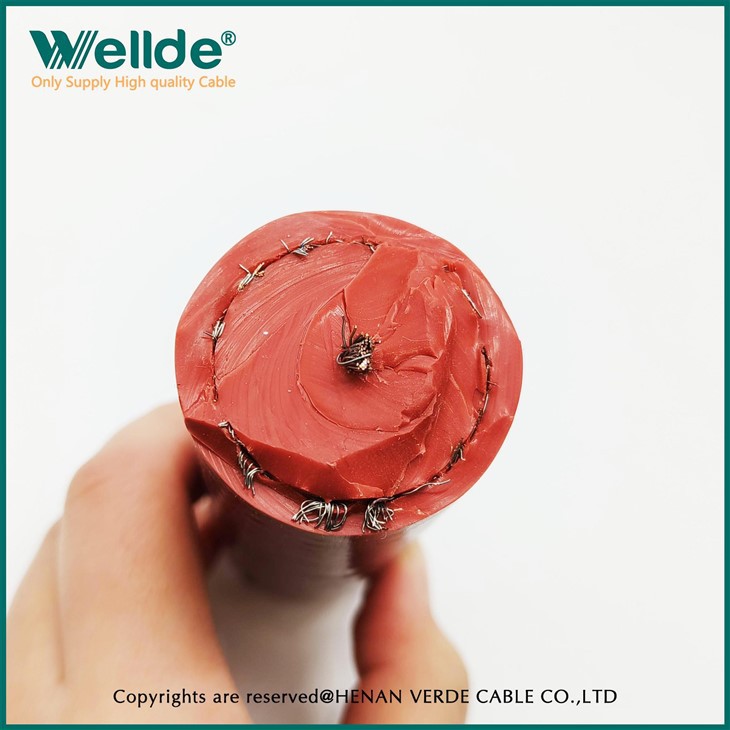

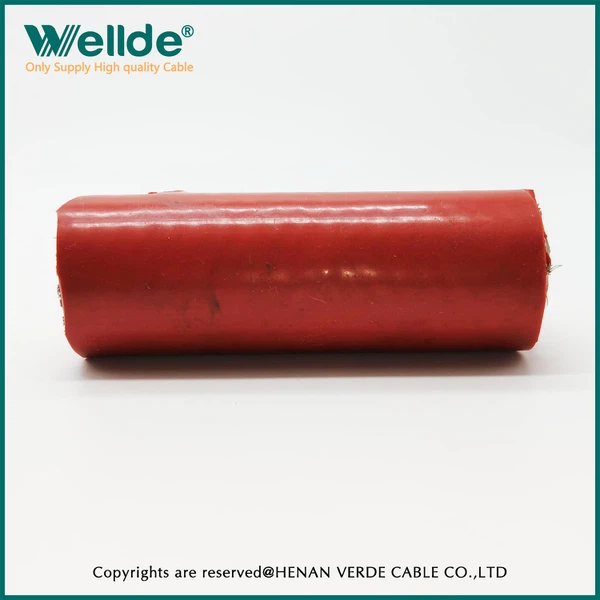

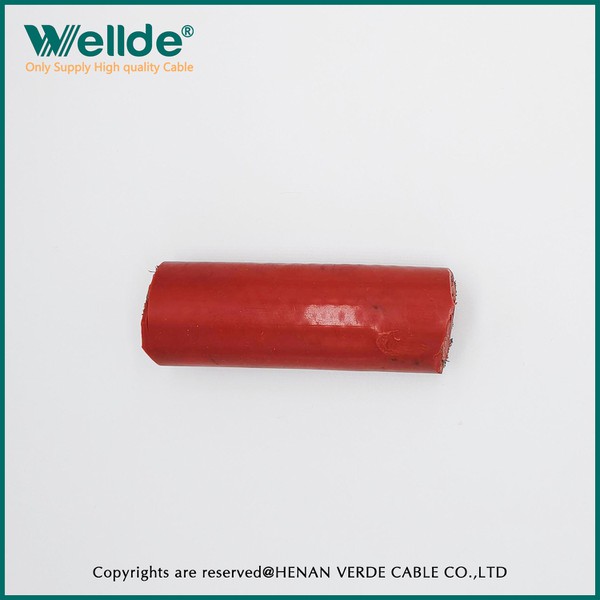

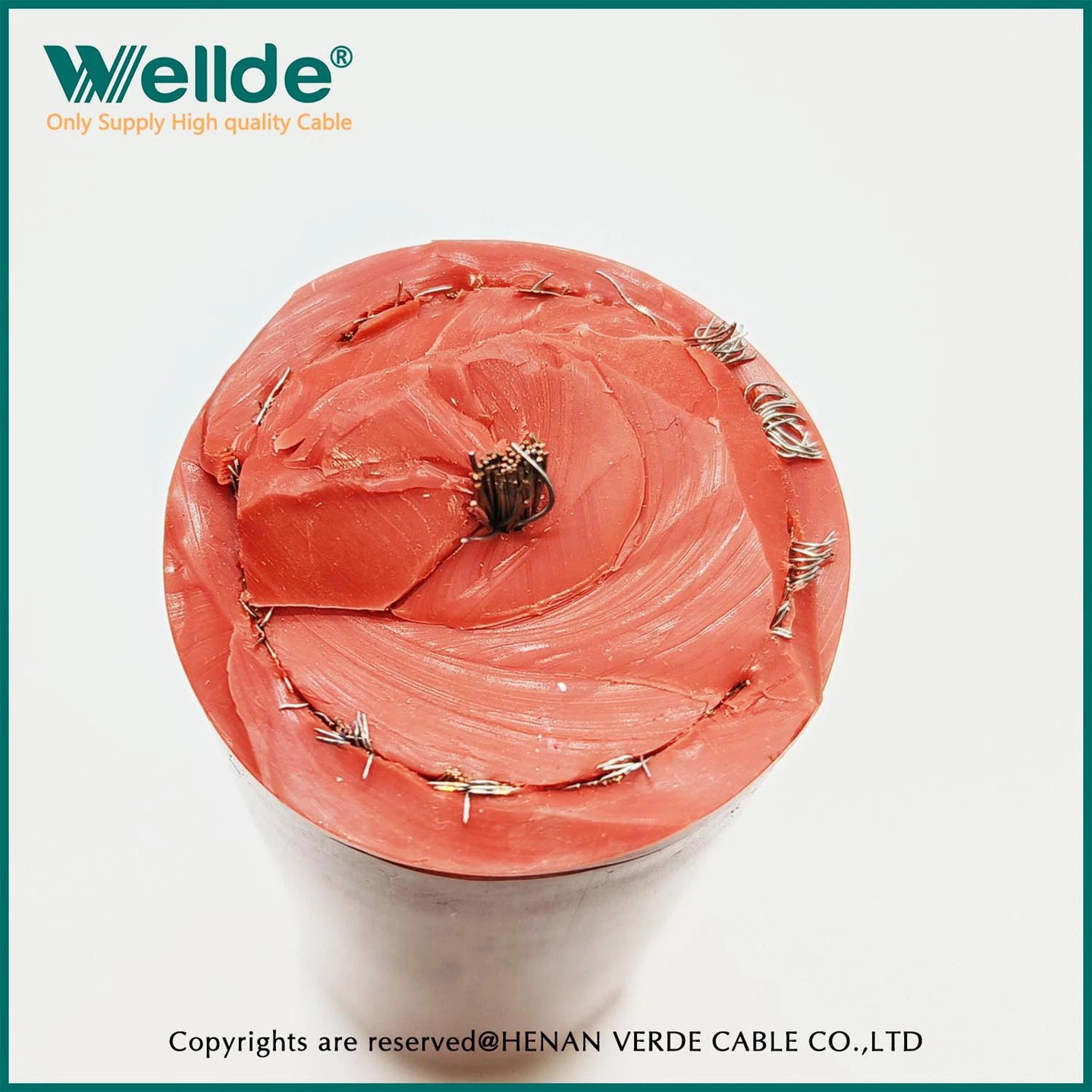

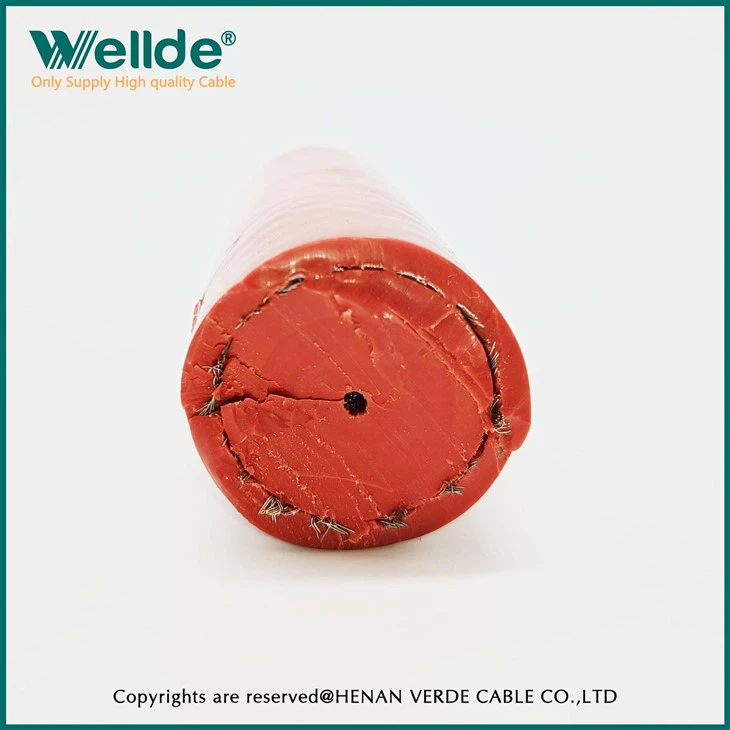

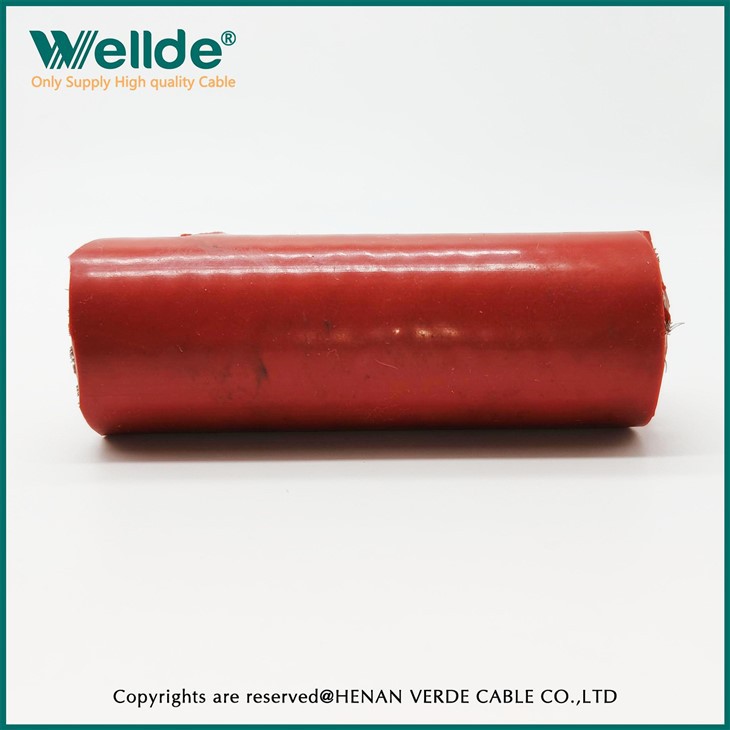

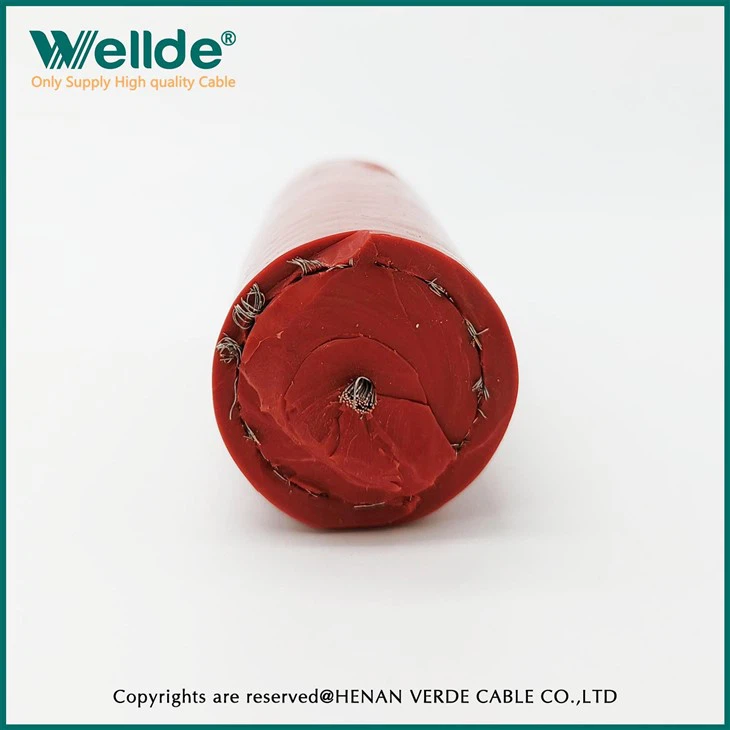

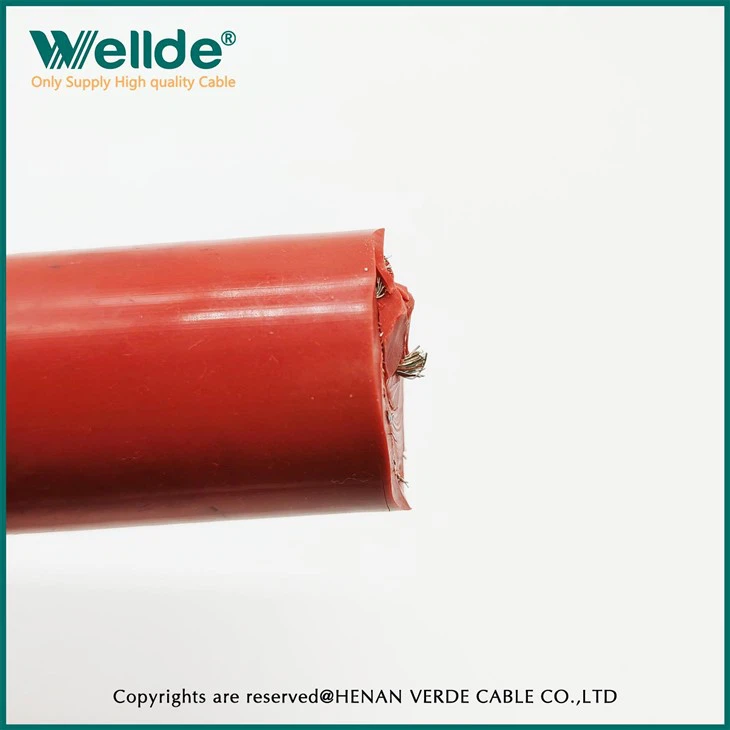

High temperature and high voltage cables, with good conductivity and shielding, are hard and not easy to break. The conductors and sheath inside can be customized according to needs. The inner core is generally copper wire and tinned copper, and the sheath is generally silicone. If you have other needs, you can contact us, and we will provide you with samples.
Application:
High voltage silicone wire cable is mainly used in high voltage electric cabinet,power systems,high voltage electric motor, television receivers, transformer, high voltage test equipment,internal connection of electronic equipment.
Main technical parameters for high voltage silicone wire:
1.Nominal Voltage: 3KV,5KV, 6KV, 10KV, 20KV, 30KVDC, 40KVDC, 50KVDC
2.Temperature Range: -60ºC to 200ºC
3.Conductor:Tinned copper
4.Insulation: Silicone rubber
5.O,D,Allowance:±0.10mm
6.Color:Black,Brown,Red,Green,White ,Blue,Grey ,Transparent- Yellow/green etc
Hot sale color : Red, black, White
|
导体 Conductor |
绝缘厚度 Insulation Thickness mm |
完成外径 Outer Diameter mm |
电气特性 Electrical Properties |
||||
|
截面积 Sectional Area mm2 |
导体构造 Conductor Construction NO.xΦmm |
直径 Diameter mm |
500V |
1000V |
500V |
1000V |
最大导体直流电阻 Max. Conductor Resistance DC 20℃ Ω/km |
|
0.5 |
28/0.15 |
0.90 |
1.0 |
1.2 |
2.90 |
3.30 |
40.1 |
|
0.75 |
24/0.20 |
1.15 |
1.0 |
1.2 |
3.20 |
3.60 |
26.7 |
|
1 |
32/0.20 |
1.30 |
1.0 |
1.2 |
3.30 |
3.70 |
20 |
|
1.5 |
48/0.20 |
1.60 |
1.0 |
1.2 |
3.60 |
4.0 |
13.7 |
|
2 |
40/0.25 |
1.85 |
1.0 |
1.2 |
3.90 |
4.30 |
9.9 |
|
2.5 |
49/0.25 |
2.00 |
1.0 |
1.2 |
4.00 |
4.40 |
8.21 |
|
4 |
56/0.30 |
2.80 |
1.2 |
1.4 |
5.20 |
5.60 |
5.09 |
|
6 |
84/0.30 |
3.60 |
1.2 |
1.5 |
6.00 |
6.60 |
3.39 |
|
10 |
84/0.40 |
4.60 |
1.4 |
1.6 |
7.40 |
7.80 |
1.95 |
|
16 |
126/0.40 |
5.80 |
1.4 |
1.6 |
8.60 |
9.0 |
1.24 |
|
25 |
196/0.40 |
7.60 |
1.6 |
1.8 |
10.80 |
11.2 |
0.795 |
|
35 |
494/0.30 |
8.80 |
1.8 |
2.0 |
12.40 |
12.80 |
0.565 |
|
50 |
396/0.40 |
10.6 |
2.0 |
2.2 |
14.60 |
15.0 |
0.393 |
|
70 |
551/0.0 |
12.8 |
2.0 |
2.2 |
16.80 |
17.20 |
0.277 |
|
95 |
760/0.40 |
14.8 |
2.2 |
2.5 |
19.20 |
19.80 |
0.210 |
|
120 |
608/0.50 |
16.5 |
2.2 |
2.5 |
21.00 |
21.50 |
0.164 |
|
150 185 |
760/0.50 |
18.2 |
2.4 |
2.6 |
23.00 |
23.40 |
0.132 |
|
925/0.50 |
20.0 |
2.4 |
2.6 |
24.80 |
25.20 |
0.108 |
|
|
240 |
1221/0.50 |
23.0 |
2.6 |
2.8 |
28.20 |
28.60 |
0.0817 |
