High Voltage Silicone Wire

High Voltage Silicone Wire 1.We focus on Special Wires and Cables.Silicone wire is one of our best selling item.

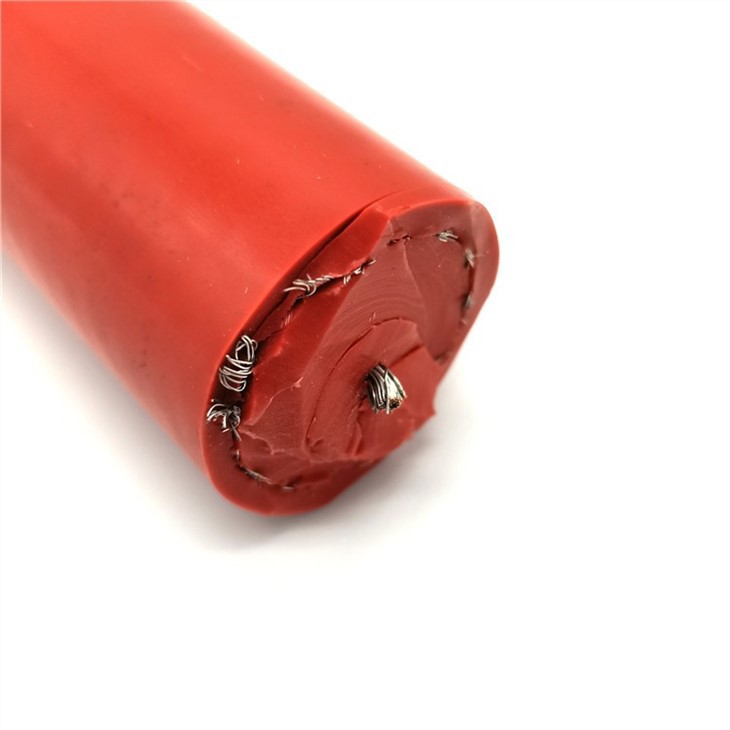

2. The high voltage silicone wire cable can resist 10KV,20KV, 30KV,40KV,50KV up to 100KV.
3.The cable has been exported to Holland,France, Hungary,Australia,Argentina, Mexico,South Africa,USA,Vietnam

Send Inquiry

Description

Application:

High voltage silicone wire cable is mainly used in high voltage electric cabinet,power systems,high voltage electric motor, television receivers, transformer, high voltage test equipment,internal connection of electronic equipment.

Main technical parameters for high voltage silicone wire:

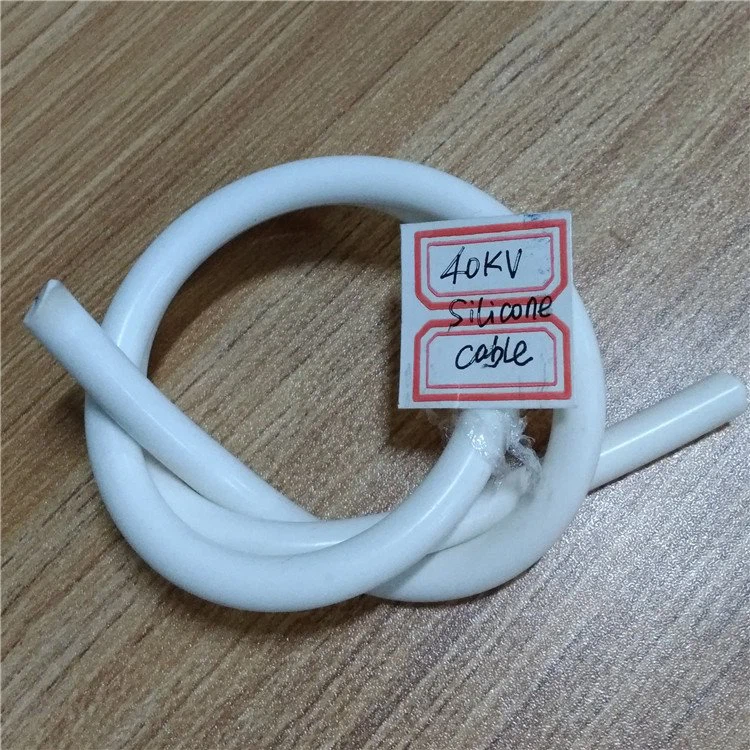

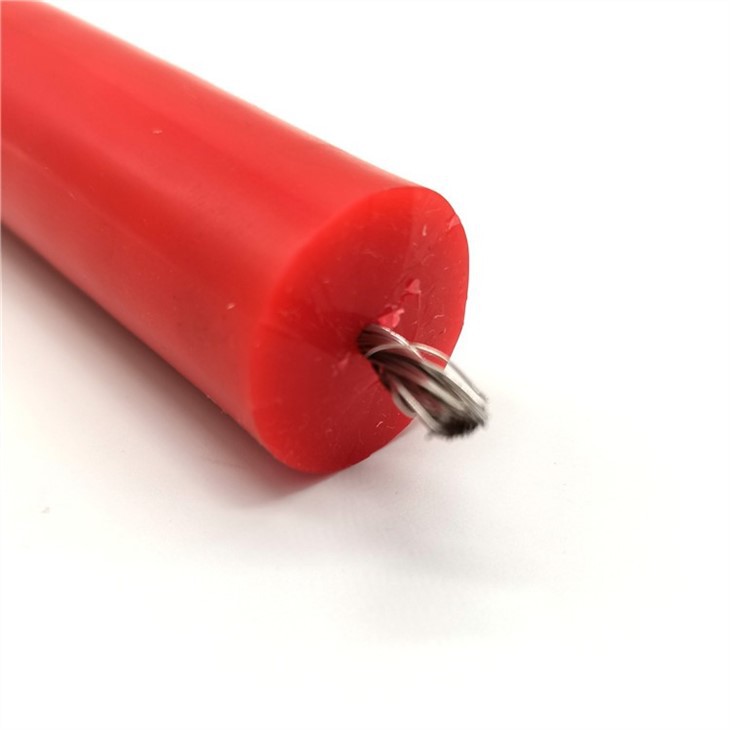

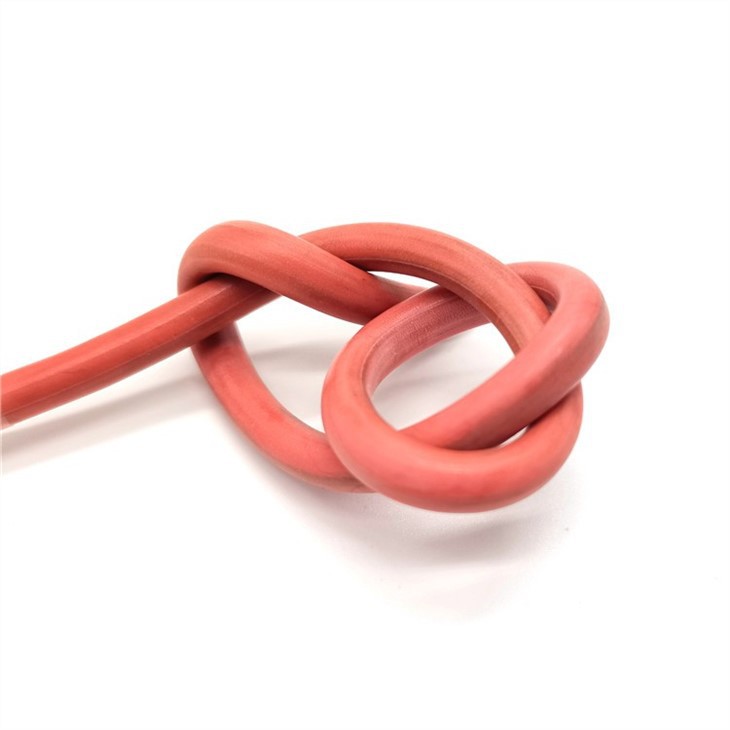

1.Nominal Voltage: 3KV,5KV, 6KV, 10KV, 20KV, 30KVDC, 40KVDC, 50KVDC
2.Temperature Range: -60ºC to 200ºC
3.Conductor:Tinned copper
4.Insulation: Silicone rubber
5.O,D,Allowance:±0.10mm
6.Color:Black,Brown,Red,Green,White ,Blue,Grey ,Transparent- Yellow/green etc
Hot sale color : Red, black, White

Specification:

10kV silicone wire: 0.2mm,0.35mm,0.50mm,0.75mm,1.0mm,1.5mm , 2.0mm, 2.5mm, 4.0mm, 6.0mm,10mm2
AWG14 AWG16 AWG18 gauge is usual and hot export specification.

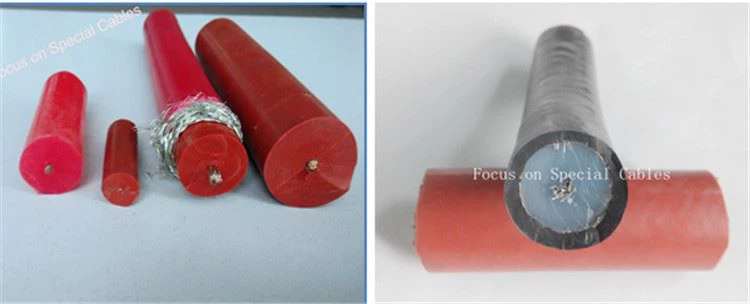

Here list the data for non shield silicone wire, we can also produce shield high voltage silicone wire such as tinned copper wire braid shield.

The high voltage silicone wire cable has been exported to:

Holland,France, Hungary,Australia,Argentina, Mexico,South Africa,USA,Vietnam

Packing:

100meter per roll,then with carton protection and pallet,packing way can be also customized as per customer’s requirements.

Technical Data list seen in the next page

Conductor			Insulation										Electrical Characteristic
Conductor			3KV		6KV		10KV		20KV		50KV		Electrical Characteristic
AWG	Conductor construction No. *mm	Dia.	Insulation Thick mm	OD mm	Insulation Thick mm	OD mm	Insulation Thick mm	OD	Insulation Thick mm	OD mm	Insulation Thick mm	OD mm	DC Resist. max 20° C ohm/km
AWG	Conductor construction No. *mm	mm	Insulation Thick mm	OD mm	Insulation Thick mm	OD mm	Insulation Thick mm	mm	Insulation Thick mm	OD mm	Insulation Thick mm	OD mm	DC Resist. max 20° C ohm/km
28	7*0.12	0.37	0.5	1.37	0.7	1.77	1	2.37	1.3	2.97	2.5	5.37	237.25
26	7*0.15	0.49	0.5	1.49	0.7	1.89	1	2.49	1.3	3.09	2.5	5.49	148.94
24	7*0.20	0.6	0.5	1.6	0.7	2	1	2.6	1.3	3.2	2.5	5.6	93.25
22	7*0.25	0.76	0.5	1.76	0.7	2.14	1	2.76	1.3	3.36	2.5	5.76	56.8
20	7*0.30	0.91	0.5	1.91	0.7	2.31	1	2.91	1.3	3.51	2.5	5.91	40.1
18	7*0.40	1.17	0.5	2.17	0.7	2.57	1	3.17	1.3	3.77	2.5	6.17	23
16	7*0.50	1.5	0.5	2.5	0.7	2.9	1	3.5	1.3	4.1	2.5	6.5	14.6
14	43*0.25	1.83	0.6	3.03	0.8	3.43	1.2	4.23	1.5	4.83	3	7.83	9.9

High Voltage Silicone Wire price
