1.product description
Nominal Voltage:3KV/6KV/10KV/20KV/30KV/40KV/50KV
Temperature Range:-60ºC to 150/200ºC
Conductor:Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.1mm
Color:White-Blue-Red-Black-Brown-Yellow
Construction : The resistance alloy wire is wound on the glass fiber wire as the core wire (spiral), and the outer layer is covered with the silicon rubber layer. 1. It has excellent heat resistance. It can be used for a long time at 100 ºC without any performance change. It can be used for 10000 hours at 160 ºC. 2. It has good insulation, the insulation resistance is more than 500m Ω, the resistance value is stable in a wide range of temperature and frequency, and it has good resistance to high voltage corona discharge and arc discharge. 3. It has good cold resistance and good rationalization in medical treatment.
2.product data
| SPEC. | Normal area mm2 |
Conductor Structure mm |
Min insulation resistance at 700C Mohm.km |
Thickness of insulation mm |
Thickness of sheath mm |
Approx overall diameter mm |
|
| 300/500V | RVV | 3×6.0 | 84×0.30 | 0.006 | 0.8 | 1.2 | 12.4 |
| 227 IEC 53(RVV) | 4×1.0 | 32×0.20 | 0.010 | 0.6 | 0.9 | 7.9 | |
| 227 IEC 53(RVV) | 4×1.5 | 48×0.20 | 0.010 | 0.7 | 1.0 | 9.3 | |
| 227 IEC 53(RVV) | 4×2.5 | 77×0.20 | 0.009 | 0.8 | 1.1 | 11.0 | |
| RVV | 4×4.0 | 56×0.30 | 0.007 | 0.8 | 1.2 | 12.2 | |
| RVV | 4×6.0 | 84×0.30 | 0.006 | 0.8 | 1.3 | 13.8 | |
| RVV | 4×10.0 | 34×0.40 | 0.0056 | 1.0 | 1.3 | 18.6 | |
| RVV | 4×16.0 | 126×0.40 | 0.0046 | 1.0 | 1.4 | 21.4 | |
| 227 IEC 53(RVV) | 5×1.5 | 48×0.20 | 0.010 | 0.7 | 1.1 | 10.3 | |
| 227 IEC 53(RVV) | 5×2.5 | 77×0.20 | 0.009 | 0.8 | 1.2 | 12.2 | |
| RVV | 5×4.0 | 56×0.30 | 0.007 | 0.8 | 1.2 | 13.4 | |
| RVV | 5×6.0 | 84×0.30 | 0.006 | 0.8 | 1.3 | 15.2 | |
| RVV | 5×10.0 | 84×0.40 | 0.0056 | 1.0 | 1.3 | 20.5 | |
| RVV | 5×16.0 | 126×0.40 | 0.0046 | 1.0 | 1.4 | 23.7 |

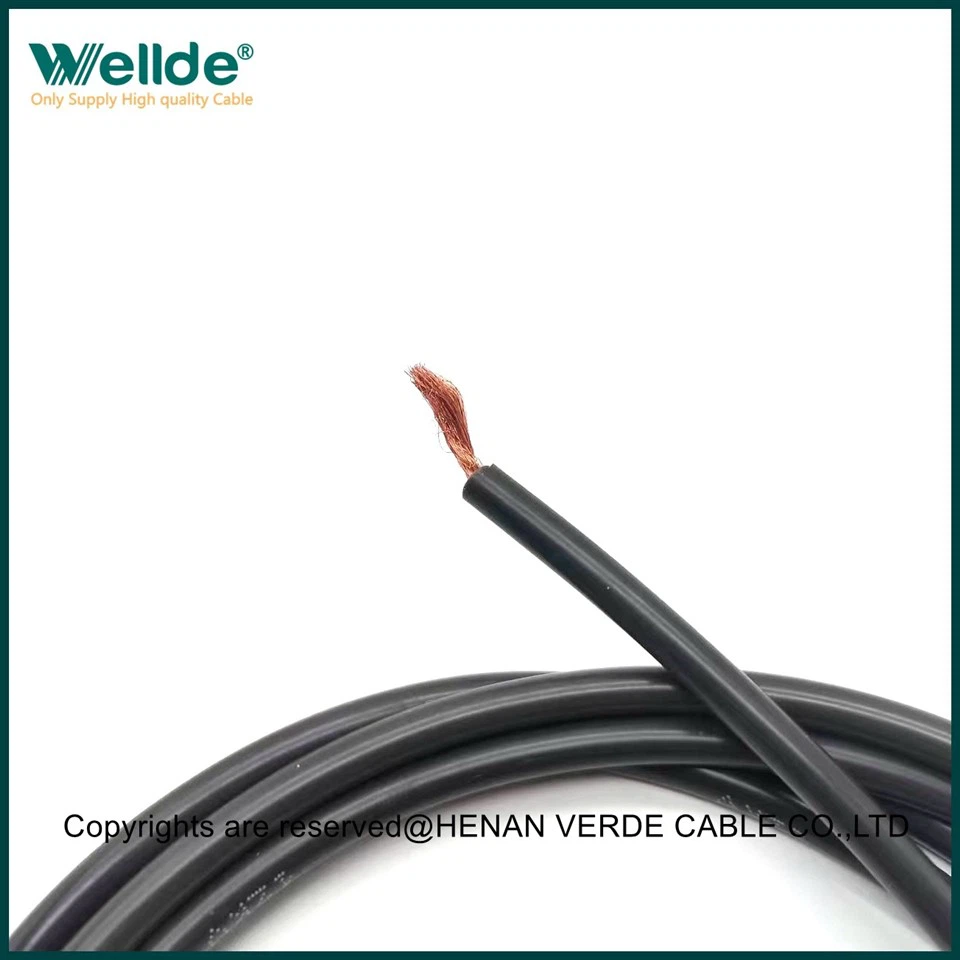

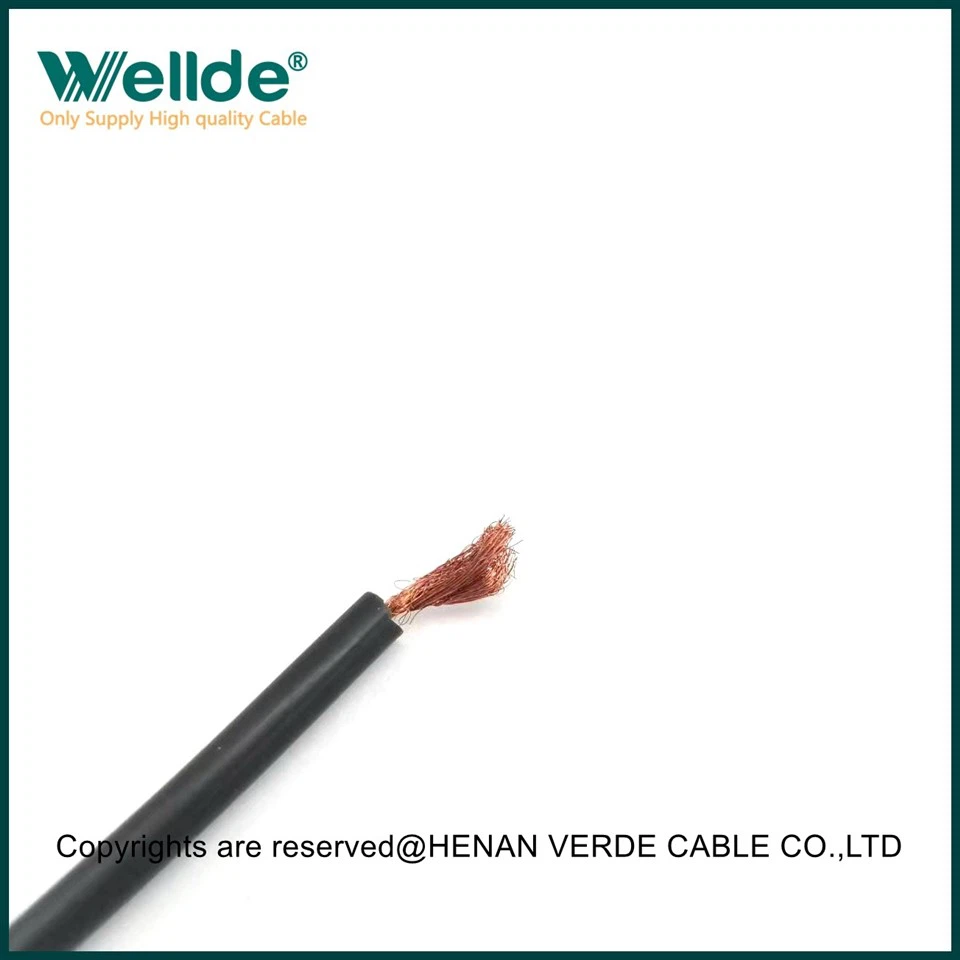

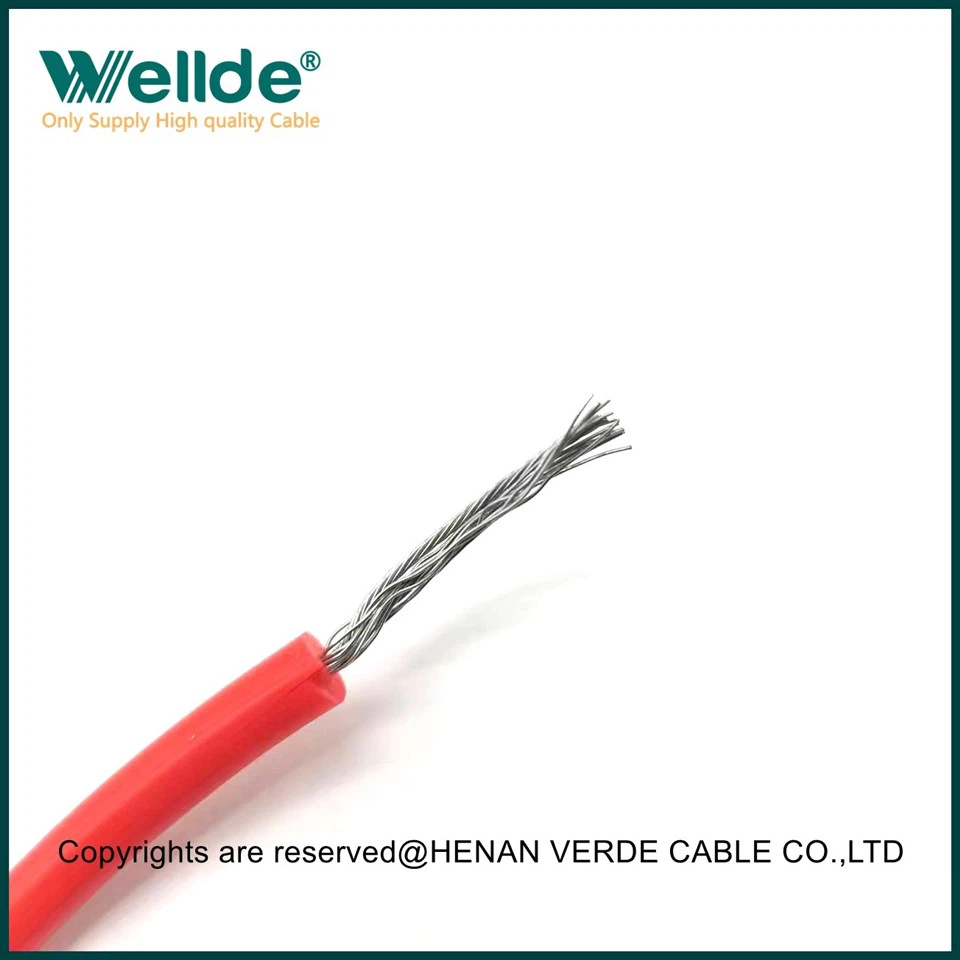

3.product images
4.FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3:Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
