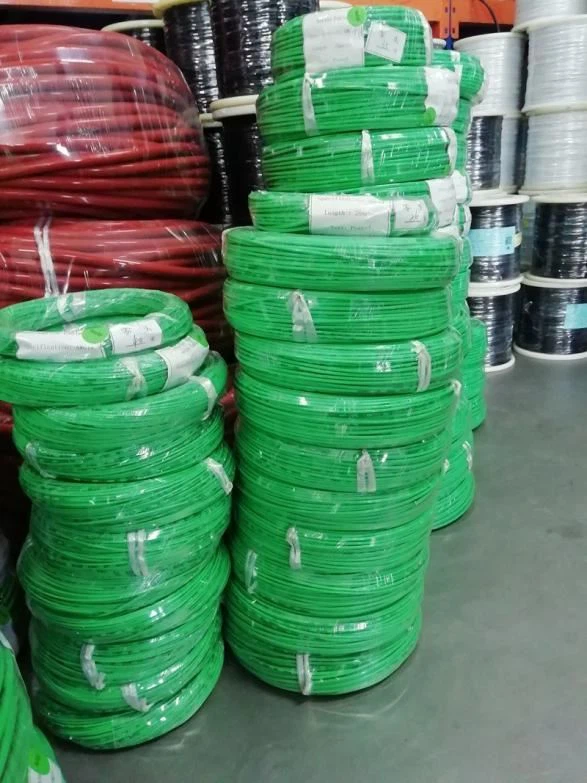

High temperature Resistant PFA Teflon Wire
High temperature Teflon Wire with PFA insulation named for PFA Wire,type is AF250. PFA wire not only resist high temperature +260℃,it can also resist low temperature till -200℃.
Main technical parameters for PFA Wire:
Rated voltage：600V and below
Test of power-frequency withstand voltage： 3000V
Temperature range：-80～+260℃
Conductor: silver plated copper, or tinned copper
Insulation: teflon PFA
Color：red black yellow blue green white orange purple brown, other more colors can be customized.
Hot sale size of teflon PFA Wire: 0.35mm, 0.5mm,0.75mm, 1.0mm, 1.5mm
Hot sale UL gauge: 22 awg, AWG20, 18 gauge, 16 guage, awg14,awg12 , awg10 ,awg8
Application:
Teflon PFA wire is widely used for electronic instrument equipment, aerospace field, medical and chemical industry, various electronics and electrical appliances,lighting equipment,small electric motor, electromagnetic coils, automotive temperature sensor connection to lead,automotive internal connection line ,and other. PFA wire can be used in air-conditioning equipment， micro-wave oven， electric disinfectant cupboard， electric cooker， electric thermos， electric heater， electric oven， lamps and lanterns in their inner wire and so on.
PFA Wire Advantage and product features：
PFA teflon wire has the excellent chemical and mechanical property.Teflon PFA wire is corrosion-resistance，Oil resistant，strong acid-resistance， strong alkali-resistance，oxidant-resistant.It can bear the good electric insulated capability，moisture-resistance, flame-retardant， Anti-ageing,PFA wire has long age of usage.
Conductor | Insulation | Electrical |
| |||
Sectional | Conductor | Diameter | Insulation | Outer | Max.Conductor |
|
0.05 | 7×0.1 | 0.3 | 0.2 | 0.7 | 376.2 | 500 |
0.2 | 7×0.2 | 0.6 | 0.3 | 1.2 | 83.5 | 500 |
0.35 | 19×0.16 | 0.8 | 0.3 | 1.4 | 49.5 | 200 |
0.5 | 19×0.18 | 0.9 | 0.35 | 1.6 | 36 | 200 |
0.75 | 19×0.23 | 1.15 | 0.35 | 1.85 | 22.7 | 200 |
1 | 19×0.26 | 1.3 | 0.35 | 2 | 19 | 200 |
1.2 | 19×0.28 | 1.4 | 0.35 | 2.1 | 15.3 | 200 |
1.5 | 19×0.32 | 1.6 | 0.4 | 2.4 | 11.7 | 200 |
2 | 19×0.37 | 1.85 | 0.4 | 2.65 | 9.45 | 100 |
2.5 | 19×0.41 | 2.05 | 0.5 | 3.05 | 6.86 | 100 |
4 | 37×0.37 | 2.6 | 0.5 | 3.6 | 4.51 | 100 |
6 | 37×0.45 | 3.15 | 0.5 | 4.15 | 3.05 | 100 |
10 | 133×0.32 | 4.8 | 0.5 | 5.8 | 1.68 | 100 |
16 | 133×0.39 | 5.8 | 0.6 | 7 | 1.13 | 100 |
20 | 133/0.45 | 6.8 | 0.6 | 8 | 0.886 | 100 |
25 | 199/0.4 | 7.6 | 0.6 | 8.8 | 0.734 | 100 |
35 | 494/0.3 | 9 | 0.7 | 10.4 | 0.511 | 100 |
50 | 551/0.4 | 10.6 | 0.8 | 12.2 | 0.358 | 100 |
70 | 551/0.4 | 12.6 | 1 | 14.6 | 0.27 | 100 |
95 | 760/0.4 | 14.8 | 1.2 | 17.2 | 0.21 | 100 |
Remarks:
Here just list one part of our teflon PFA wire. We can produce more and different specifications according to customer’s special requirements,UL type and specification can be done, pls contact us and we will send you more specifications if you need other standard teflon wire.
