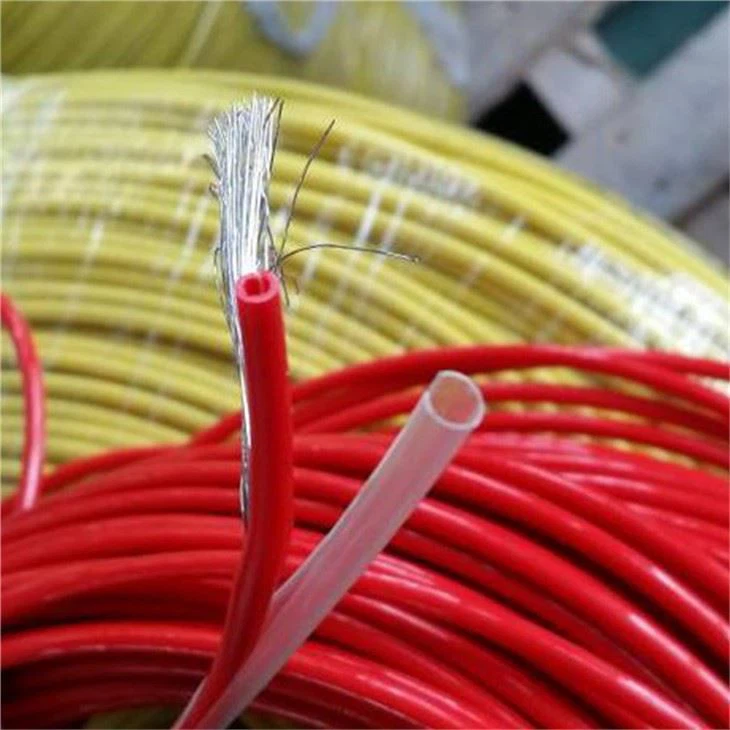

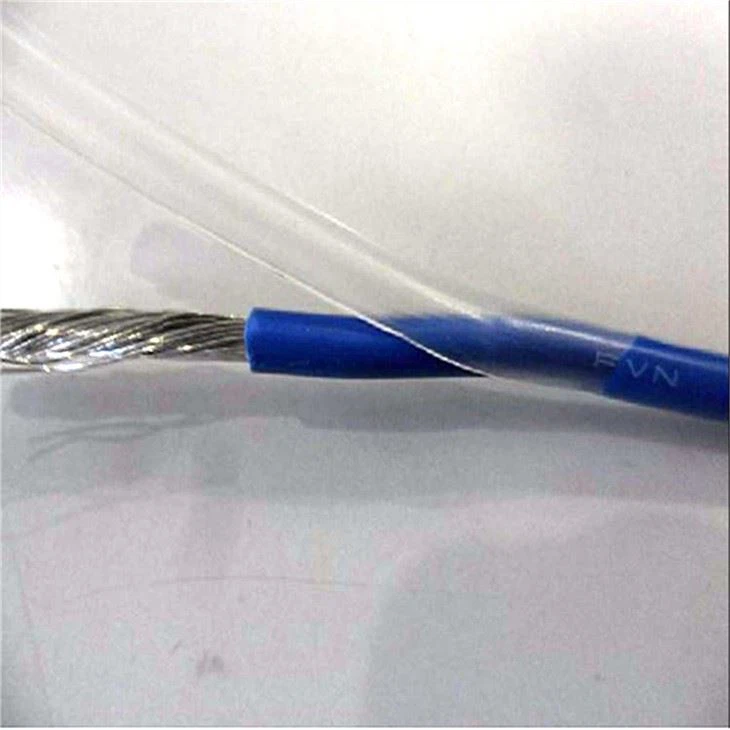

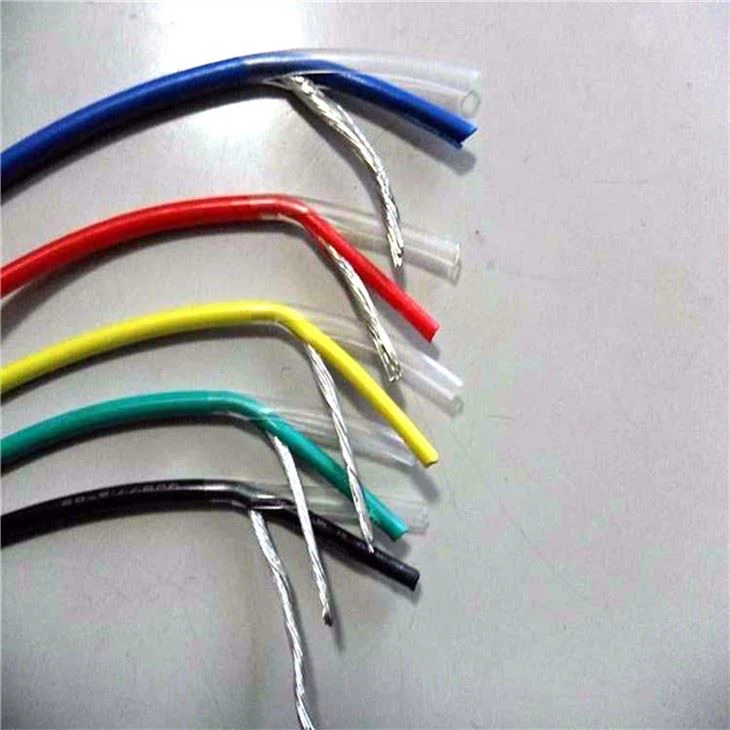

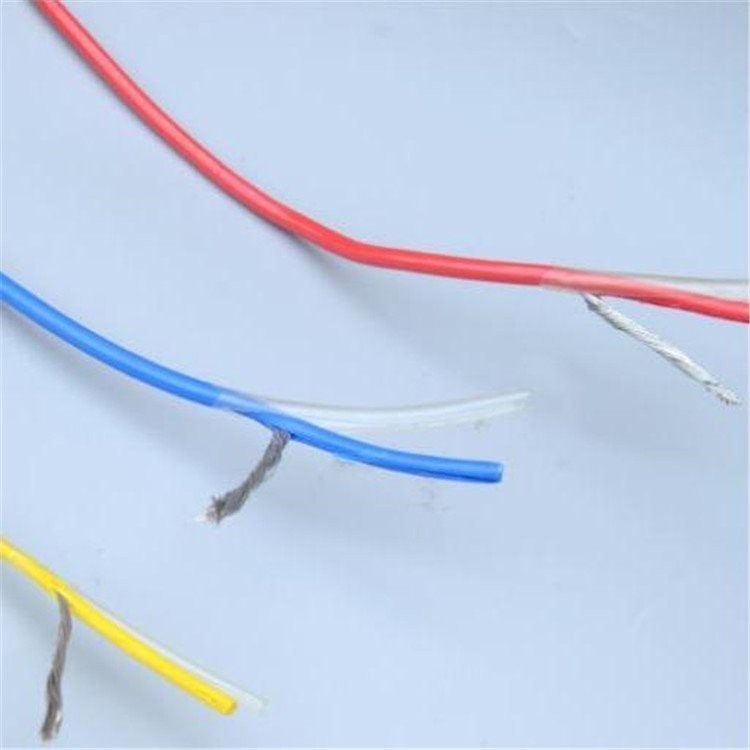

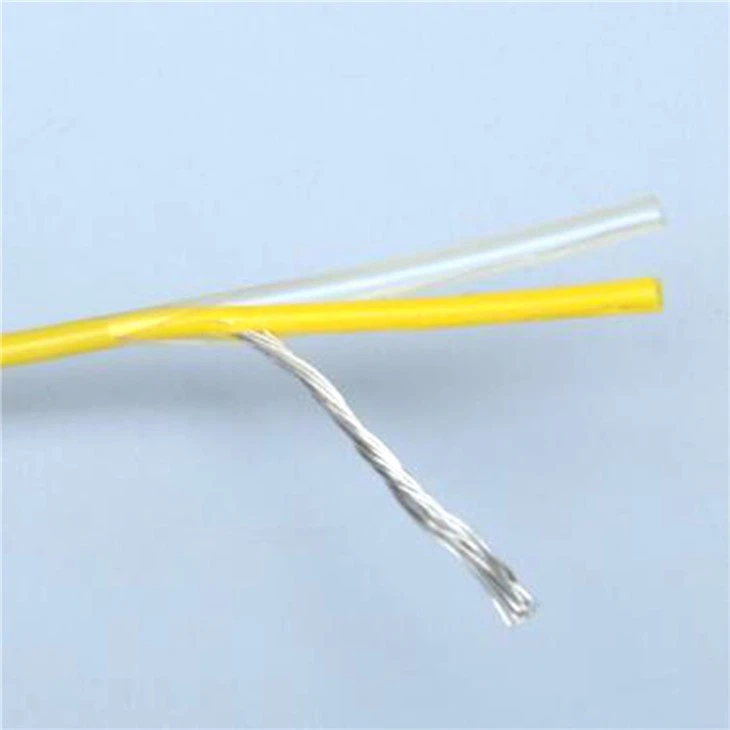

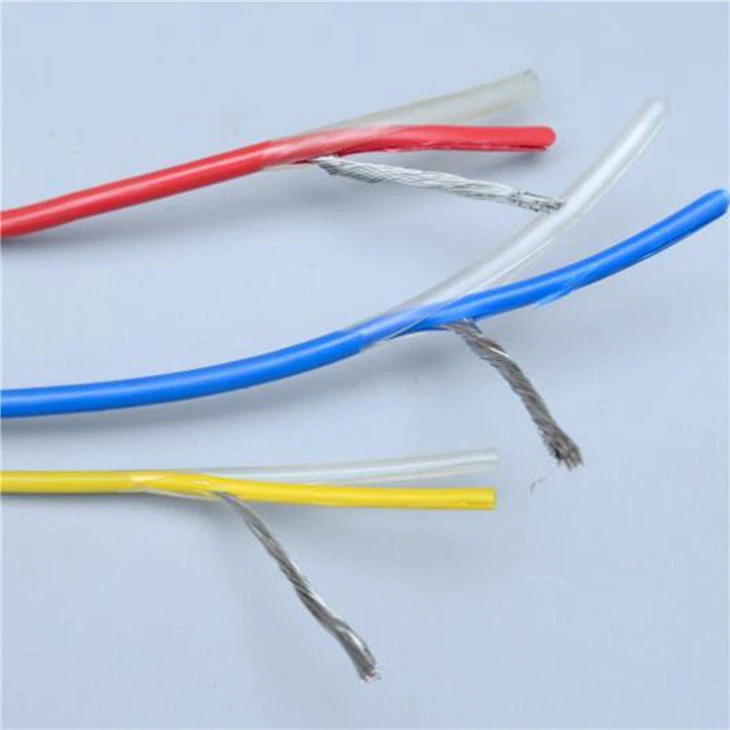

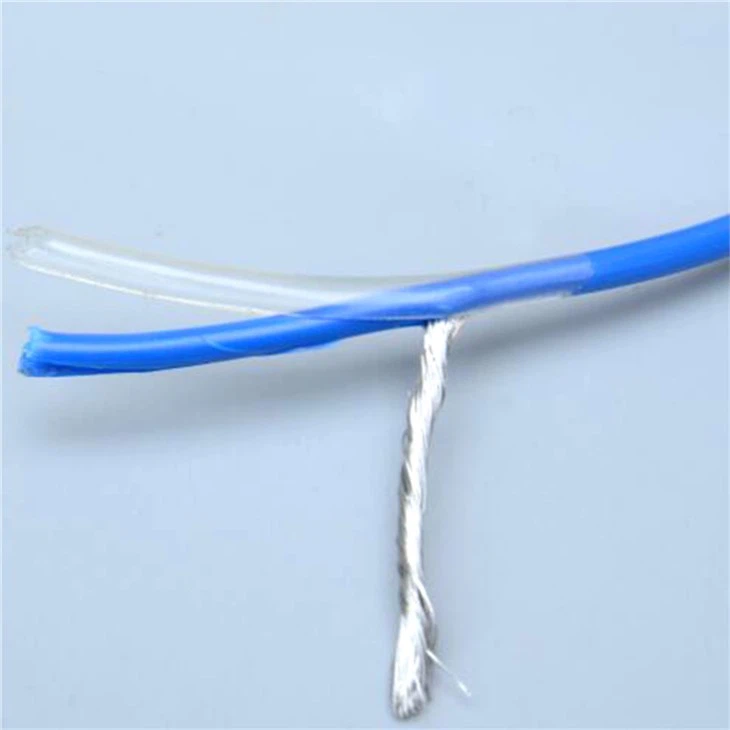

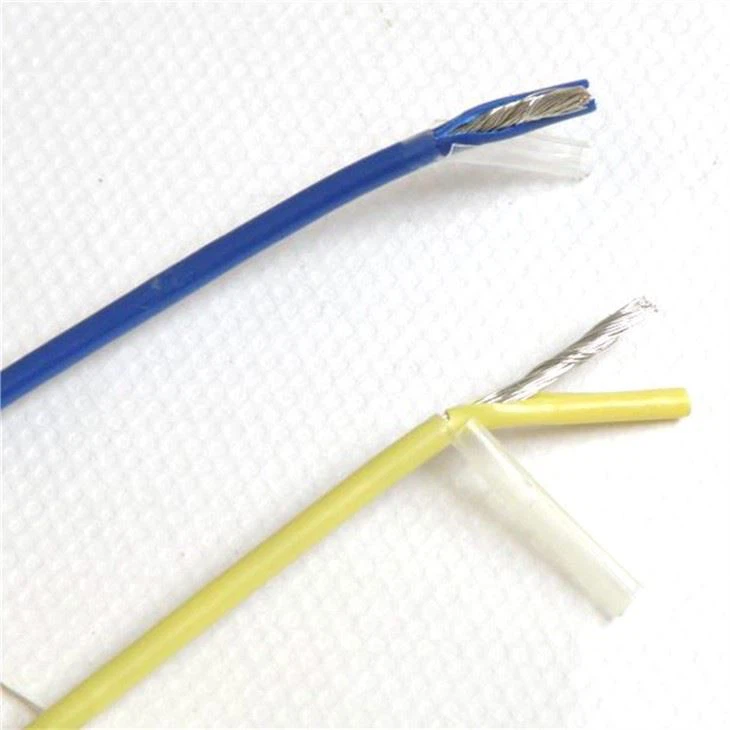

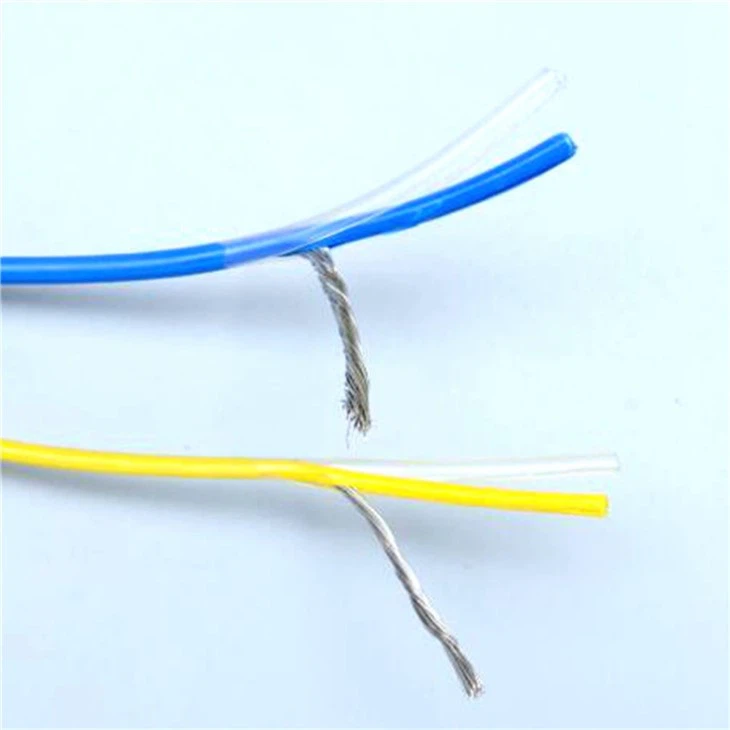

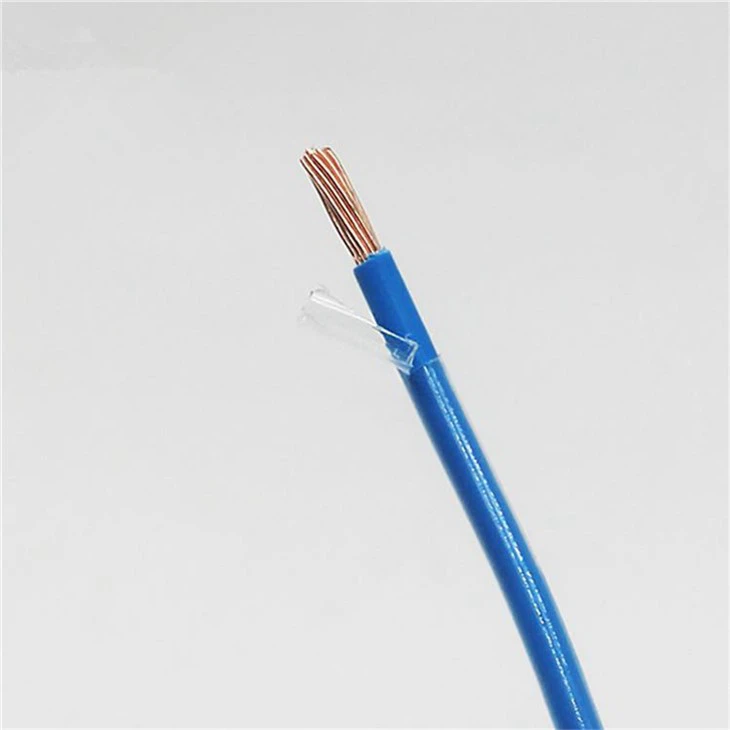

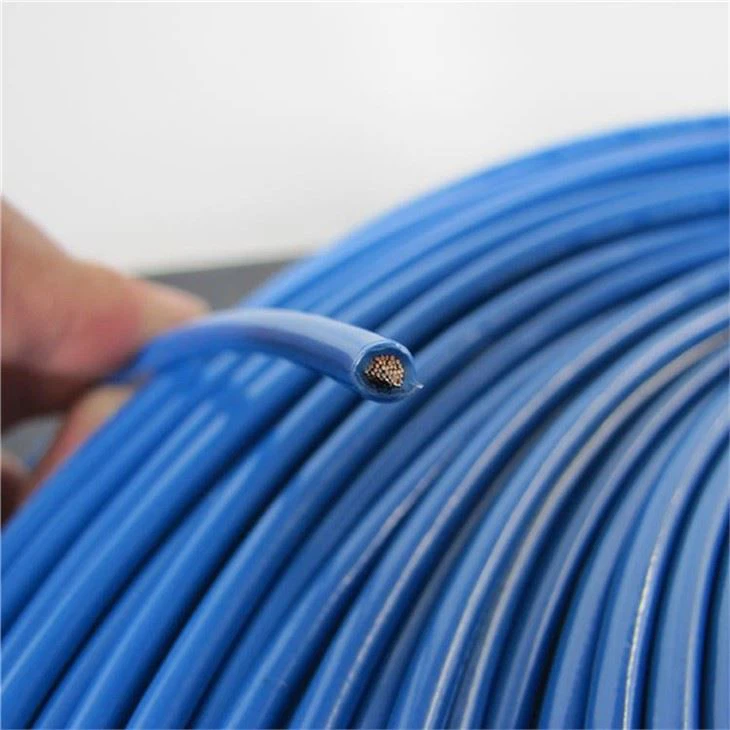

FVN Wire cable: Stranded Tinned copper wire conductor PVC insulated Nylon Sheath Electric Cable
Applications of Nylon jacket cable FVN Wire :
It is widely used in aircraft low-voltage lines, highway monitoring equipment lines,Nylon jacket cable FVN type is also used for highway inductance coil，electronic police lines, ground induction coil cable line, and also used for lamp and lighting,street light,high road pole lamp light.
Product features for FVN Wire:
1. Rated voltage: 300/500V, 450/750V
2. Working temperature: -60~+ 105℃
3. Conductor: stranded tinned copper wire
4. Insulation: PVC (Rohs PVC)
5. Sheath: nylon (NL)
6. Color: red / yellow / Blue/ white / black / yellow-green / brown and other
Hot sale Specification for Nylon sheath electric wire:
Tinned copper wire nylon jacket electric cable:
1.5mm, 2.5mm, 4.0mm,6.0mm,16mm
AWG6 AWG8 AWG10 AWG12 AWG14
Advantage and Characteristics of Nylon jacket cable (FVN wire)
FVN nylon cable is wear-resistant, waterproof, cold-resistant, oil-resistant, gasoline-resistant, not easy to burn, not easy to age, and environmentally friendly. It can be used normally in an environment with a relative humidity of 98%.It belong to high class building wire,tinned copper wire nylon cable is the best choice for highway and aircraft cable
Technical Parameters for FVN Nylon Electrical cable
Nominal Section mm2 | Conductor structure Stranding nos /dia of single copper wire | Insulation average thickness mm | Sheath average thickness mm | Shielded copper Wire diameter mm | Average wire diameter mm | At 20 ℃ Maximum conductor resistance Ω /km | |
Unshield | Shield | ||||||
0.3 | 16/0.15mm | 0.35 | 0.12 | 0.1 | 1.7 | 2.2 | 71.2 |
0.35 | 7/0.26mm | 0.35 | 0.12 | 0.1 | 1.7 | 2.2 | 50.8 |
19/0.16mm | 0.35 | 0.12 | 0.1 | 1.7 | 2.2 | 50.8 | |
0.5 | 7/0.30mm | 0.35 | 0.12 | 0.1 | 1.9 | 2.4 | 40.1 |
19/0.20mm | 0.35 | 0.12 | 0.1 | 2 | 2.5 | 40.1 | |
28/0.15mm | 0.35 | 0.12 | 0.1 | 2 | 2.5 | 40.1 | |
0.75 | 7/0.37mm | 0.35 | 0.12 | 0.1 | 2.1 | 2.6 | 26.7 |
19/0.23mm | 0.35 | 0.12 | 0.1 | 2.1 | 2.6 | 26.7 | |
24/0.20mm | 0.35 | 0.12 | 0.1 | 2.1 | 2.6 | 26.7 | |
42/0.15mm | 0.35 | 0.12 | 0.1 | 2.1 | 2.6 | 26.7 | |
1 | 7/0.43mm | 0.35 | 0.14 | 0.1 | 2 | 2.3 | 20 |
19/0.26mm | 0.35 | 0.14 | 0.1 | 2.3 | 2.7 | 20 | |
32/0.20mm | 0.35 | 0.14 | 0.1 | 2.3 | 2.7 | 20 | |
1.2 | 19/0.28mm | 0.4 | 0.14 | 0.1 | 2.5 | 2.9 | 14.6 |
49/0.18mm | 0.4 | 0.14 | 0.1 | 2.5 | 3 | 14.6 | |
1.5 | 19/0.32mm | 0.4 | 0.14 | 0.1 | 2.7 | 3.2 | 13.7 |
48/0.20mm | 0.4 | 0.14 | 0.1 | 2.7 | 3.2 | 13.7 | |
2 | 19/0.37mm | 0.45 | 0.14 | 0.12 | 3 | 3.5 | 10 |
49/0.23mm | 0.45 | 0.14 | 0.12 | 3 | 3.5 | 10 | |
37/0.26mm | 0.45 | 0.14 | 0.12 | 3.05 | 3.55 | 10 | |
2.5 | 19/0.41mm | 0.5 | 0.14 | 0.12 | 3.4 | 3.9 | 8.21 |
37/0.30mm | 0.5 | 0.14 | 0.12 | 3.4 | 3.9 | 8.21 | |
49/0.25mm | 0.5 | 0.14 | 0.12 | 3.6 | 4.1 | 8.21 | |
77/0.20mm | 0.5 | 0.14 | 0.12 | 3.6 | 4.1 | 8.21 | |
3 | 37/0.32mm | 0.5 | 0.14 | 0.12 | 3.6 | 4.1 | 6.63 |
3 | 49/0.28mm | 0.5 | 0.14 | 0.12 | 3.8 | 4.3 | 6.63 |
4 | 37/0.37mm | 0.6 | 0.16 | 0.12 | 3.9 | 4.4 | 5.09 |
4 | 49/0.32mm | 0.6 | 0.16 | 0.12 | 4.3 | 4.8 | 5.09 |
4 | 77/0.26mm | 0.6 | 0.16 | 0.12 | 4.4 | 4.9 | 5.09 |
4 | 56/0.30mm | 0.6 | 0.16 | 0.12 | 4.4 | 4.9 | 5.09 |
5 | 37/0.41mm | 0.6 | 0.16 | 0.12 | 4.4 | 4.9 | 4.13 |
5 | 49/0.37mm | 0.6 | 0.16 | 0.12 | 4.8 | 5.3 | 4.13 |
6 | 37/0.45mm | 0.6 | 0.16 | 0.12 | 4.6 | 5.1 | 3.39 |
6 | 49/0.40mm | 0.6 | 0.16 | 0.12 | 5.1 | 5.6 | 3.39 |
6 | 84/0.30mm | 0.6 | 0.16 | 0.12 | 5.1 | 5.6 | 3.39 |
8 | 19 × 7/0.28mm | 0.7 | 0.2 | 0.12 | 6 | 6.5 | 2.3 |
10 | 19 × 7/0.32mm | 0.9 | 0.2 | 0.12 | 6.6 | 7.1 | 1.95 |
13 | 19 × 7/0.35 | 0.9 | 0.2 | 0.12 | 7.6 | 8.1 | 1.52 |
16 | 19 × 7/0.39 | 1 | 0.2 | 0.15 | 8.3 | 8.9 | 1.24 |
20 | 19 × 7/0.45 | 1 | 0.2 | 0.15 | 9.2 | 9.8 | 0.918 |
25 | 19 × 16/0.32 | 1 | 0.25 | 0.15 | 9.9 | 10.5 | 0.795 |
