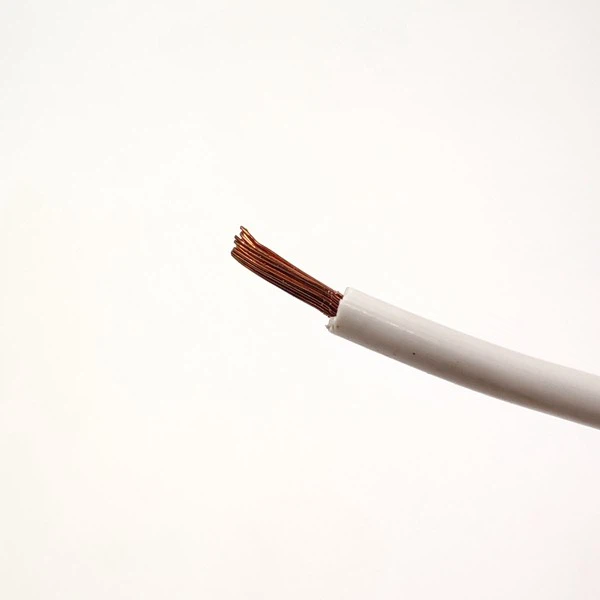

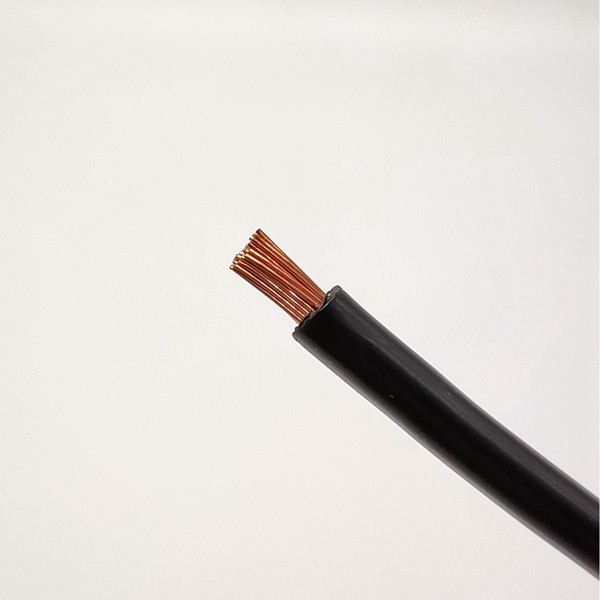

Description for 1.5mm Automotive Wire:
Low voltage fine oxygen free copper stranded wire conductor PVC or Telfon Insulation Automotive wire with different types
Application:
Automotive wiring harnesses are used in the wire connection of some devices such as ignition, electronic injection, power generation, starting, instrumentation, lighting, air conditioning, and auxiliary electrical appliances.
Structure of 1.5mm Automotive Wire:
Conductor: bare copper stranded wires
Insulation: PVC、XLPE、FEP、PFA、PTFE、Teflon
Non-shield or with braid shield
Usually single core, multicore can be also customized as per customer's requirements.
Electrical characteristics for 1.5mm Automotive Wire:
Type1:FLRY-B
Flame Retardant thin-wall PVC Insulation
Temperature: -40'C ~+105'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 2: AV
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant PVC
Type 3: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 4: AVS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 5: AVSS
Temperature: -40'C ~+80'C
Conductor: bare copper stranded wires
Insulation: 80'C flame retardant thin-wall PVC
Type 6: AVX
Temperature: -40'C ~+100'C
Conductor: bare copper stranded wires
Insulation: 105'C flame retardant PVC
Type 7: AEX (Heat resisting type)
Temperature: -40'C ~+120'C
Conductor: bare copper stranded wires
Insulation: 120'C Compounded XLPE
Type 8: QVR
Temperature: -25'C ~+70'C
Conductor: bare copper stranded wires
Insulation: 70'C flame retardant PVC
Technical data sheet of automotive wire:
Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average. | Calculated. | D.C. conductor resistance at 20ºC(Ω/km) | |
Insulation Thickness | Outer Diameter | ||||
(mm) | (mm) | Tinned copper | Silver coated copper | ||
0.035 | 7/0.08 | 0.2 | 0.64 | 562 | 550 |
0.05 | 10/0.08 | 0.3 | 0.9 | 383 | 370 |
0.06 | 7/0.10 | 0.3 | 0.9 | 348 | 339 |
0.08 | 7/0.12 | 0.3 | 0.96 | 286 | 280 |
0.1 | 7/0.14 | 0.3 | 1.02 | 157 | 150 |
0.12 | 7/0.15 30/0.07 | 0.3 | 1.05 | 152 | 145 |
0.14 | 7/0.16 19/0.10 | 0.3 | 1.08 | 136 | 130 |
0.15 | 30/0.08 | 0.3 | 1.1 | 111 | 105 |
0.2 | 7/0.02 19/0.12 | 0.3 | 1.2 | 87 | 82 |
0.35 | 19/0.16 | 0.3 | 1.4 | 57 | 54 |
0.5 | 19/0.18 | 0.3 | 1.5 | 40 | 37.5 |
0.8 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
1 | 19/0.26 | 0.35 | 2 | 21 | 20 |
1.2 | 19/0.28 | 0.45 | 2.3 | 19 | 18 |
1.5 | 19/0.32 | 0.45 | 2.5 | 13 | 12 |
2 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
2.5 | 37/0.30 | 0.55 | 3.2 | 8 | 7 |
3 | 37/0.32 | 0.68 | 3.6 | 6.8 | 6.4 |
