Henan Verde Cable Co., Ltd. is one of the leading manufacturers and suppliers of h05rn-f in China, featured by quality products and good price. If you're going to wholesale durable h05rn-f made in China, welcome to get price list from our factory.

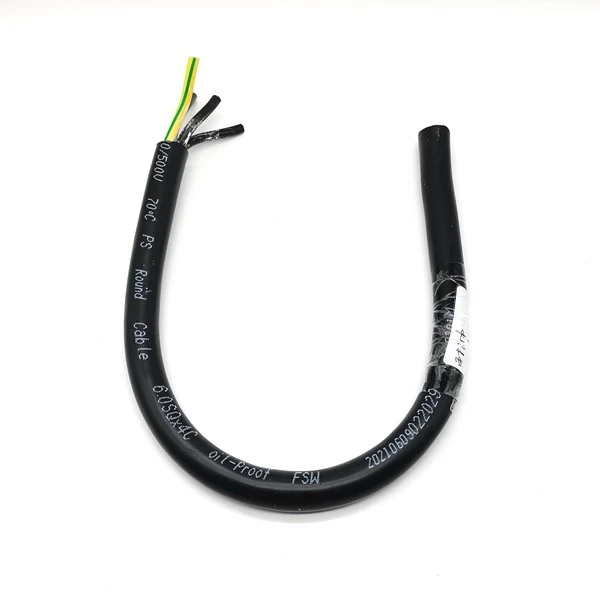

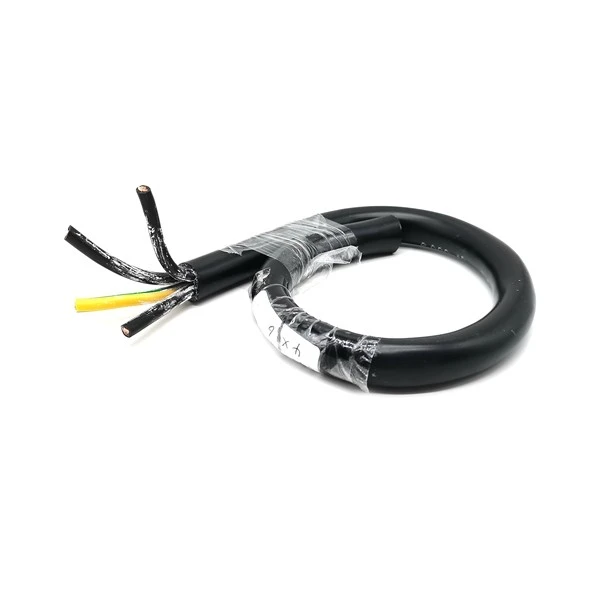

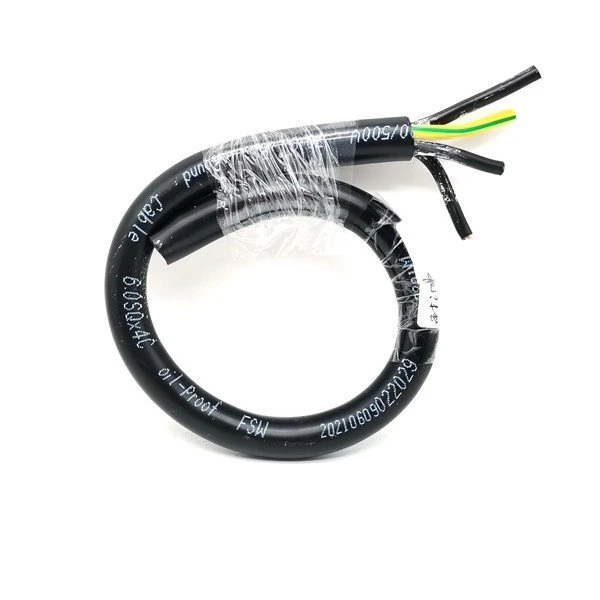

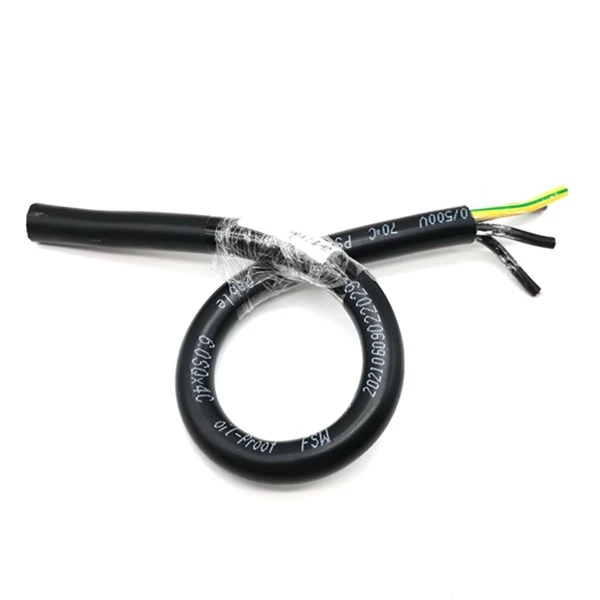

Description of H05RN-F cable:
Stranded Copper conductor rubber insulation rubber sheathed Flexible cable
Application:
Flexible H05RN-F cable is used as a connection cable for gardening tools or workshop tools, which may be exposed to oil and fat. It is also suitable for fixed installation in furniture, decorative coverings, wall partitions and prefabricated building components.
Type: 60245 IEC 57 (YZW)
Structure of H05RN-F cable:
Conductor: 99.99% Oxygen Free Copper stranded wires Class5
Insulation: EPR Rubber
Sheath / Jacket: Neoprene Rubber
Feature of H05RN-F rubber cable:
Standard acc. to IEC 60245-4 and VDE European Standard BS standard
Flame retardant, UV resistant, Oil resistant, Cold resistant
Medium-duty (H05RN-F), Light-duty (H05RR-F)
Technical Data:
Rated voltage: U0/U = 300/500V
Test voltage: 2000V
Range of temperature:-25℃~+60℃
Min bending radius:6×0
Core Identification: color coded
Conductor stranding: IEC 60228 C1.5
Specification of H05RN-F rubber cable:
Number of cores | Nominal cross-sectional area |
2 Core~5 Core | 0.75mm²~2.5mm² |
