1. Application of Copper Conductor PVC Insulated Control Cable
The products are suitable for the connection of controlling electrical equipment and instrument
monitoring and controlling return circuit, protecting and measuring in power distribution unit under the circumstance that the rated voltage is up to 450/750V for A.C.
2. Standard for Copper Conductor PVC Insulated Control Cable
The products can be produced according to IEC60227 Standard, the Chinese standard GB 9330-2008, and the factory can also manufacture the cable following other standards.
3. Type, Name and Application

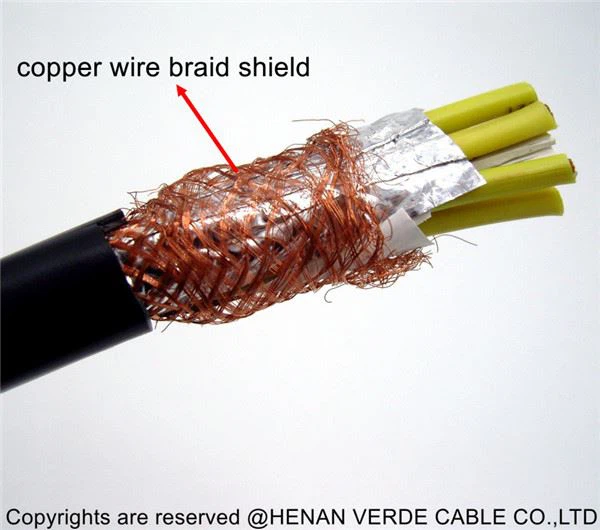

Type | Description | Area of Conductor mm2 | Nos. of Core | Application |
KVV | Copper Conductor, PVC Insulated and Sheathed Control Cable | 0.75, 1.0, 1.5, 2.5 | 2--16 | Permanent installation indoors, in cable ditches or pipes. |
4, 6 | 2--14 | |||
10 | 2-10 | |||
KVVP | Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable | 0.75, 1.0, 1.5, 2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required. |
4, 6 | 2-14 | |||
10 | 2-10 | |||
KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 0.75, 1.0, 1.5, 2.5 | 4-10 | Permanent installation indoors, in cable ditches or pipes where shielding is required. |
4, 6 | 7-61 | |||
10 | 4-10 | |||
KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel-tape Armored Control Cable | 0.75, 1.0, 1.5, 2.5 | 7-61 | Permanent installation indoors, in cable ditches, pipes or underground. Be able to bear stronger outer mechanical force. |
4, 6 | 4-14 | |||
10 | 4-14 | |||
KVVR | Copper Conductor, PVC Insulated and Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required. |
KVVRP | Copper Conductor, PVC Insulated and Sheathed Braiding Shielded Flexible Control Cable | 0.5, 0.75, 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required. |
1.5, 2.5 | 4-68 | |||
Type | Description | Area of Conductor mm2 | Nos. of Core | Application |
KYJV | Copper Conductor, XLPE Insulated and PVC Sheathed Control Cable | 0.75, 1.0, 1.5, 2.5 | 2-16 | Permanent installation indoors, in cable ditches or pipes. |
4, 6 | 2-14 | |||
10 | 2-10 | |||
KYJVP | Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Control Cable | 0.75, 1.0, 1.5, 2.5 | 2-61 | Permanent installation Indoors, in cable ditches or pipes where shielding is required. |
4, 6 | 2-14 | |||
10 | 2-10 | |||
KYJV22 | Copper Conductor, XLPE Insulated, Steel-tape Armored, PVC Sheathed Control Cable | 0.75, 1.0, 1.5, 2.5 | 7-61 | Permanent installation indoors, in cable ditches, pipes or underground. Be able to bear stronger outer mechanical force. |
4, 6 | 4-14 | |||
10 | 4-10 | |||
KYJVP2 | Copper Conductor, XLPE Insulated, Copper-tape Screened, PVC Sheathed Control Cable | 0.75, 1.0, 1.5, 2.5 | 7-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required. |
4, 6 | 4-14 | |||
10 | 4-10 | |||
KYJVR | Copper Conductor, XLPE Insulated, PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required. |
KYJVRP | Copper Conductor, XLPE Insulated, Braiding Shielded, PVC Sheathed Flexible Control Cable | 0.5, 0.75, 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required. |
1.5, 2.5 | 4-68 |
4. The Requirement of Laying
4.1. The long time working temperature of conductor of PVC insulated cable is 70℃.
The long time working temperature of conductor of XLPE insulated cable is 90℃.
4.2. The temperature for laying the cables can not be lower than 0℃.
Permissible curved radius (r) unarmored cable: r≥6D; (D: outer diameter of the cable); armored or copper-tape screened cable: r≥12D; shielded flexible cable: r≥6D.
Conductor structure, Conductor resistance, Thickness of insulation and resistance
Area mm2 | Conductor construction | Conductor resistances Ω/km | Thickness mm | Insulation Resistance Ω*km | ||
Category | Number/Diameter mm | Have no tin | Tinned | |||
0.5 | 3 | 16/0.20 | 39.0 | 40.1 | 0.6 | 0.013 |
0.75 | 1 | 1/0.97 | 24.5 | 24.8 | 0.6 | 0.012 |
2 | 7/0.37 | 24.5 | 24.8 | 0.6 | 0.014 | |
3 | 24/0.20 | 26.0 | 26.7 | 0.6 | 0.011 | |
1.0 | 1 | 1/1.13 | 18.1 | 18.2 | 0.6 | 0.011 |
2 | 7/0.43 | 18.1 | 18.2 | 0.6 | 0.013 | |
3 | 32/0.20 | 19.5 | 20.0 | 0.6 | 0.010 | |
1.5 | 1 | 1/1.38 | 12.1 | 12.2 | 0.7 | 0.011 |
2 | 7/0.52 | 12.1 | 12.2 | 0.7 | 0.010 | |
3 | 30/0.25 | 13.3 | 13.7 | 0.7 | 0.010 | |
2.5 | 1 | 1/1.78 | 7.41 | 7.56 | 0.8 | 0.010 |
2 | 7/0.68 | 7.41 | 7.56 | 0.8 | 0.009 | |
3 | 50/0.25 | 7.98 | 8.21 | 0.8 | 0.009 | |
4 | 1 | 1/2.25 | 4.61 | 4.70 | 0.8 | 0.0085 |
2 | 7/0.85 | 4.61 | 4.70 | 0.8 | 0.0077 | |
6 | 1 | 1/2.763.08 | 3.08 | 3.11 | 0.8 | 0.0070 |
2 | 7/1.04 | 3.08 | 3.11 | 0.8 | 0.0065 | |
10 | 2 | 7/1.35 | 1.83 | 1.84 | 1.0 | 0.0065 |
Remarks: category of conductor
1: Means hard
2: Means flexible
3: Means more flexible

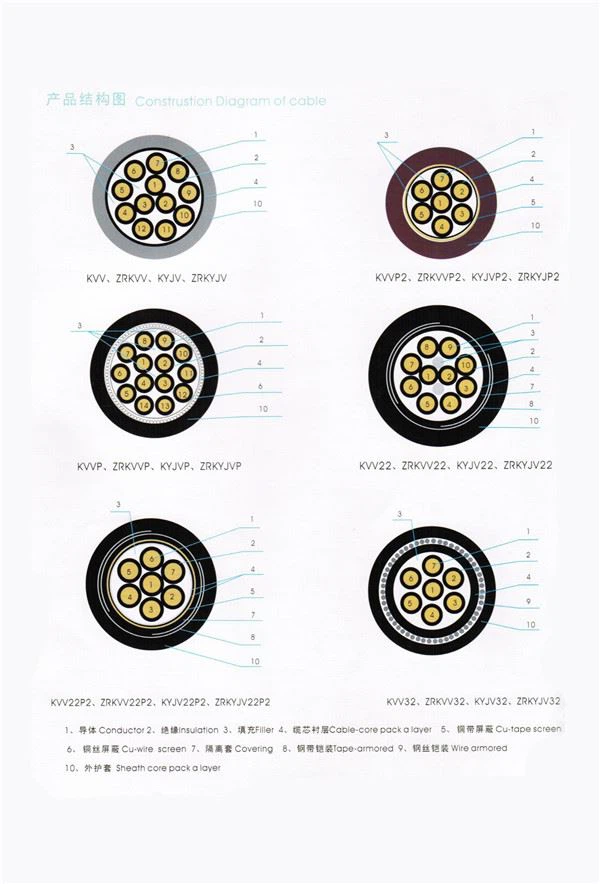

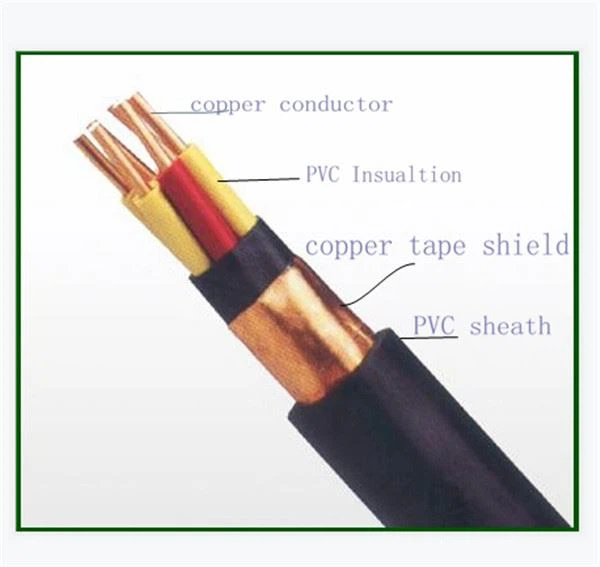

Structure Drawing of Copper Conductor PVC Insulated Control Cable
We can produce different materials wire cable such as LSOH,Flame retardant and fire resistant cable,shield cable.here list one parts of cables.Pls contact us for more detailed information.
