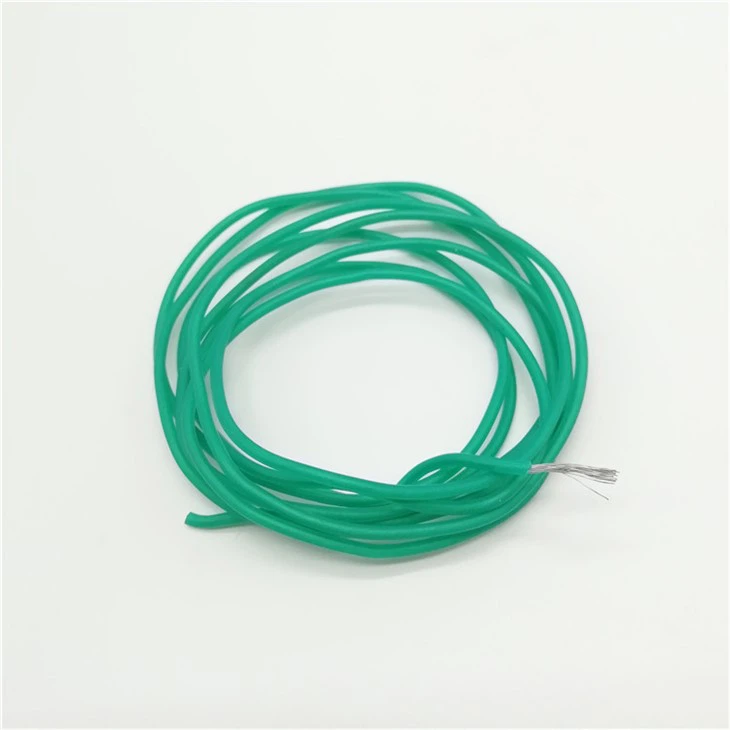

Low Voltage 300V Silicone Wire - High Temperature Resistant Flexible Silicone Wire
Different Specifications can be Customized according to your special requirement.
1.Description of 300V Silicone Wire:
Rated Voltage:300/500V Silicone wire
Temperature Ratings: -60ºC~+180ºC
2.Cable Structure :
Conductor: Tinned copper stranded wire, Silver or Nickel copper
Insulation: Silicone Rubber
If need as per customer's request,Inner covering can be done such as Filling or Tape wrapped or extruded sheathing Silicone Rubber
Allowed OD tolerance for 300V silicone wire: ±0.1mm
3. Specification for 300V flexible silicone wire
Hot sale specification:0.50mm,0.75mm,1.0mm,1.5mm, 2.0mm, 2.5mm , 4.0mm ,6.0mm2
Hot sale UL specification:8 awg,10awg,12gauge,14 awg, 16 gauge, 18 gauge, awg20
4.Standard for 300V silicone wire:
UL ,IEC,Different specification and standard can be customized.
5. Color:Black,Brown ,Red, Orange,Green,purple, White, Grey, Transparent,Yellow /green
Other more colors can be customized by the customer’s requirements.
6.Application:.Silicone wire is widely used for various electric machines，electric ceramics ,heating elements parts, electric inspection equipment, car lights,Auto lamps,lighting lamp,barretter etc.
Technical Data list for 300/500V flexible Silicone Wire seen in the next page
Conductor | Insulation | Electrical | Packing | |||
Sectional | Conductor | Diameter | Insulation | Outer | Max.Conductor | Meter/coil |
0.1 | 12×0.1 | 0.4 | 0.45 | 1.3 | 188 | 500 |
0.15 | 39×0.07 | 0.5 | 0.45 | 1.4 | 136 | 500 |
0.2 | 1×0.5 | 0.5 | 0.65 | 1.8 | 94 | 500 |
12×0.15 | 0.6 | 0.6 | 1.8 | 95 | 200 | |
0.3 | 16×0.15 | 0.7 | 0.6 | 1.9 | 71.2 | 200 |
0.4 | 23×0.15 | 0.8 | 0.5 | 1.8 | 49.6 | 200 |
0.5 | 28×0.15 | 1 | 0.6 | 2.2 | 40.1 | 200 |
0.75 | 42×0.15 | 1.2 | 0.7 | 2.6 | 26.7 | 200 |
1.0 | 32×0.2 | 1.3 | 0.75 | 2.8 | 20 | 200 |
1.5 | 48×0.2 | 1.6 | 0.75 | 3.1 | 13.7 | 100 |
2.5 | 49×0.25 | 2 | 0.85 | 3.7 | 8.21 | 100 |
4.0 | 56×0.3 | 2.9 | 0.7 | 4.3 | 5.09 | 100 |
6.0 | 84×0.3 | 3.6 | 0.8 | 5.2 | 3.39 | 100 |
10 | 84×0.4 | 4.6 | 1 | 6.6 | 1.95 | 100 |
16 | 126×0.4 | 5.8 | 1.2 | 8.4 | 1.24 | 100 |
25 | 196×0.4 | 7.7 | 1.4 | 10.4 | 0.795 | 100 |
