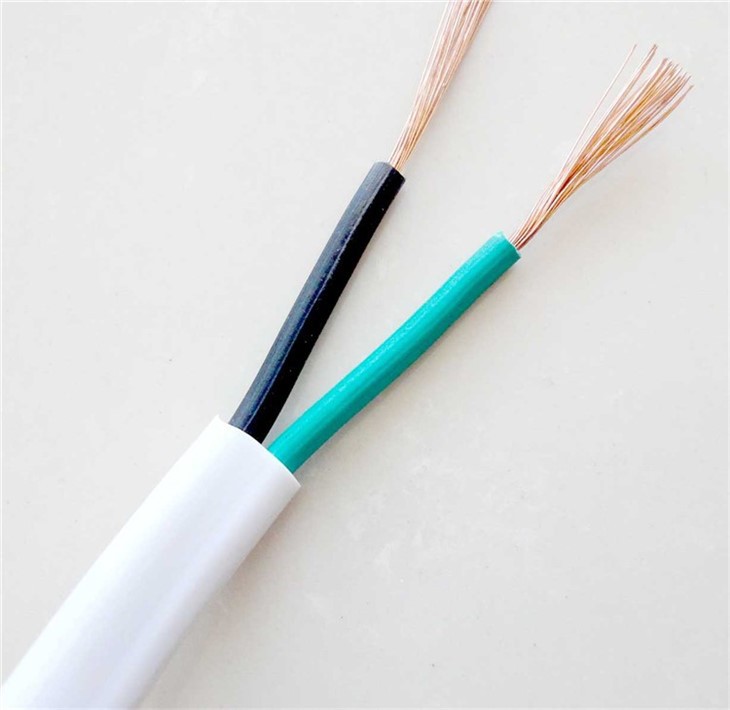

2 Core Flexible Cord Flexible Cable
Application:for power cord , building and light, battery and charging,speaker equipment,use of movement type .
Conductor: Fine OFC stranded copper class 5
Insulation: Rohs PVC, Reach PVC
Core number: 2core
Insulation color: red, black, white, blue, brown,gray , yellow/green. Other more colors can be customized as per your request.
Jacket : flexible ROHS Reach PVC
Jacket color: black, white, gray
2core Flexible cord cable Type: flat , parallel, round 3 kinds for choice
Following is different types for customer’s choice.
1. 300/300V PVC Insulated Parallel Flexible Cords to BS 6500
Reference No 2812X
Twin Core
Size of conductor | Nominal thickness of insulation mm | Overall diameter | Approx. net weight Kg/km | ||
Nominal cross-section Mm² | Number and diameter of wires No./mm | Lower limit mm | Upper limit | ||
0.5 | 28/0.15 | 0.8 | 2.5*5.0 | 3.0*6.0 | 24 |
0.75 | 42/0.15 | 0.8 | 2.7*5.4 | 3.2*6.4 | 29 |
Notes
1). Conductor of high conductivity copper wires insulated with PVC compound.
2). One core with a ridge for identification.
2. 300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
Reference No 2492Y
Twisted Twin
Size of conductor | Nominal thickness of insulation mm | Overall diameter | Approx. net weight Kg/km | |
Nominal cross-section Mm² | Number and diameter of wires No./mm | |||
0.5 | 16/0.20 | 0.6 | 46 | 20 |
0.75 | 24/0.20 | 0.6 | 5.0 | 26 |
1.0 | 32/0.20 | 0.6 | 5.4 | 33 |
Notes
1). Conductor of high conductivity copper wires insulated with PVC compound.
2).Two cores twisted together.
3. Flat type: 300/300V PVC Insulated Sheathed Parallel Twin Light Flexible Cords to BS 6500 Reference No 2192Y
Parallel Twin
Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Overall dimensions | Approx. net weight Kg/km | ||
Nominal cross-section Mm² | Number and diameter of wires No./mm | Lower limit mm | Upper limit mm | |||
0.5 | 16/0.20 | 0.5 | 0.6 | 3.0×4.8 | 3.6×6.0 | 27 |
0.75 | 24/0.20 | 0.5 | 0.6 | 3.2×5.2 | 3.9×6.4 | 34 |
Notes
1). Conductor of high conductivity copper wires insulated with PVC compound. sheathed with PVC compound.
2).Insulation colors: blue and brown.
Sheath colors: gray, white or black.
4. 300/300V PVC/PVC Sheathed Circular Light Flexible Cords to BS 6500
Reference No 2182Y
Twin Core
Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Overall dimensions | Approx. net weight Kg/km | ||
Nominal cross-section Mm² | Number and diameter of wires No./mm | Lower limit mm | Upper limit mm | |||
0.5 | 16/0.20 | 0.5 | 0.6 | 4.8 | 6.0 | 36 |
0.75 | 24/0.20 | 0.5 | 0.6 | 5.2 | 6.4 | 45 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. sheathed with PVC compound.
2.Insulation colors: blue and brown.
Sheath colors: grey, white or black.
5. 300/500V PVC/PVC Sheathed Parallel Flexible Cords to BS 6500
Reference No3192Y
Parallel Twin
Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Overall dimensions | Approx. net weight Kg/km | ||
Nominal cross-section Mm² | Number and diameter of wires No./mm | Lower limit mm | Upper limit mm | |||
0.5 | 24/0.20 | 0.6 | 0.8 | 3.8*6.0 | 5.3*7.6 | 47 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. sheathed with PVC compound.
2.Insulation colors: blue and brown.
Sheath colors: grey, white or black.
6. Round type:300/500V PVC/PVC Sheathed Circular Light Flexible Cords to BS 6500
Reference No 3182Y
Twin Core
Size of conductor | Nominal thickness of insulation mm | Nominal thickness of sheath mm | Overall dimensions | Approx. net weight Kg/km | ||
Nominal cross-section Mm² | Number and diameter of wires No./mm | Lower limit mm | Upper limit mm | |||
0.5 | 24/0.20 | 0.6 | 0.8 | 6.0 | 7.6 | 63 |
0.75 | 32/0.20 | 0.6 | 0.8 | 6.4 | 8.0 | 73 |
1.25 | 40/0.20 | 0.7 | 0.8 | 7.0 | 8.6 | 84 |
1.5 | 30/0.25 | 0.7 | 0.8 | 7.4 | 9.0 | 95 |
2.5 | 50/0.25 | 0.8 | 1.0 | 6.9 | 11.0 | 145 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. sheathed with PVC compound.
2.Insulation colors: blue and brown.
Sheath colors: gray, white or black.
