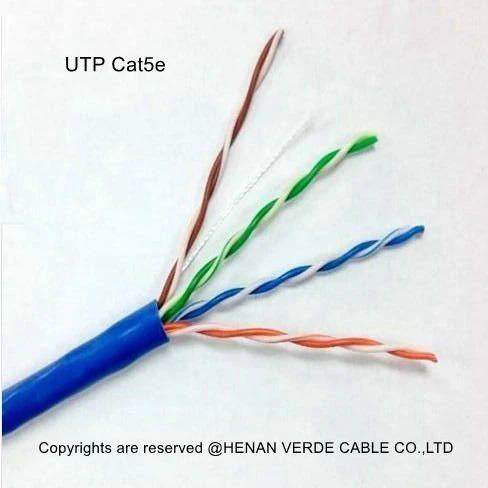

Description for UTP Cat5e Cable:
4 pair 24 AWG UTP Cat 5E cable
Type:Cat 5E, UTP type
Structure:UTP Non Shielding
Application:LAN wiring
Structure of UTP Cat5e Cable:
Conductor | 24 AWG copper wire，0.50mm,0.49mm |
Insulation | HDPE,white insulated wire with color marks |
Pair color | White-blue/blue,white-orange,white-green/green,white-brown/brown |
shielding | Non |
Jacket | PVC,CMX,CM,CMR,Low smoke halogen,free for option,nominal diameter 5.0 +/- 0.5 mm |
Rip cord | Without rip cord,or as per customers’ requirements |
printing | As per customers’ requirements |
Testing standard of UTP Cat5e Cable:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet,10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
Max pulling force | 50N |
Min. bent radius | 45mm |
Nominal weight | 40Kg/Km |
Work temperature | -15~+70℃ |
Install temperature | +5~+40℃ |
Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
Product length | Standard length305m |
Electrical property:
Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
0.772 | 16.4 | 1.85 | 67 | 64 | 67.8 | 100±15 |
1 | 17 | 2.04 | 65.3 | 62.3 | 63.8 | |
4 | 20 | 4.1 | 56.3 | 53.3 | 51.7 | |
8 | 21 | 5.8 | 51.8 | 48.8 | 45.7 | |
10 | 22 | 6.5 | 50.3 | 47.3 | 43.8 | |
16 | 20 | 8.2 | 47.3 | 44.3 | 39.7 | |
20 | 20 | 9.3 | 45.8 | 42.8 | 37.7 | |
25 | 22.5 | 10.4 | 44.3 | 41.3 | 35.8 | |
31.25 | 18 | 11.7 | 42.9 | 39.9 | 33.9 | |
62.5 | 16 | 17 | 38.4 | 35.4 | 27.8 | |
100 | 15 | 22 | 35.3 | 32.3 | 23.8 |
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
Max pulling force | 80N |
Min. bent radius | 65mm |
Nominal weight | 65Kg/Km |
Work temperature | -15~+70℃ |
Install temperature | +5~+40℃ |
Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
Product length | Standard length305m,or 500mm,1000mm as per requirements |
Electrical property:
Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
0.772 | 19.2 | 1.8 | 76 | 74 | 70 | 100±15 |
1 | 20 | 2 | 74.3 | 74.3 | 67.8 | |
4 | 23 | 3.8 | 65.3 | 63.3 | 55.8 | |
8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | |
10 | 25 | 6 | 59.3 | 57.3 | 47.8 | |
16 | 25 | 7.6 | 56.2 | 54.2 | 43.7 | |
20 | 25 | 8.5 | 54.8 | 52.8 | 41.8 | |
25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | |
31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.8 | |
62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 | |
100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 | |
200 | 18 | 29 | 39.8 | 37.8 | 21.8 | |
250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
Cable color: Black, Gray, Blue, Yellow, White,Orange,different colors can be customized.
Packing: 305meter or 500meter per drum
