Henan Verde Cable Co., Ltd. is one of the leading manufacturers and suppliers of high temperature ptfe wire in China, featured by quality products and good price. If you're going to wholesale durable high temperature ptfe wire made in China, welcome to get price list from our factory.

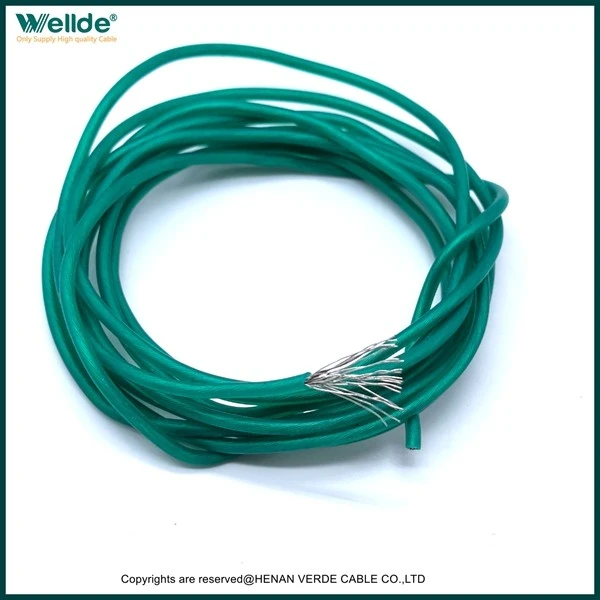

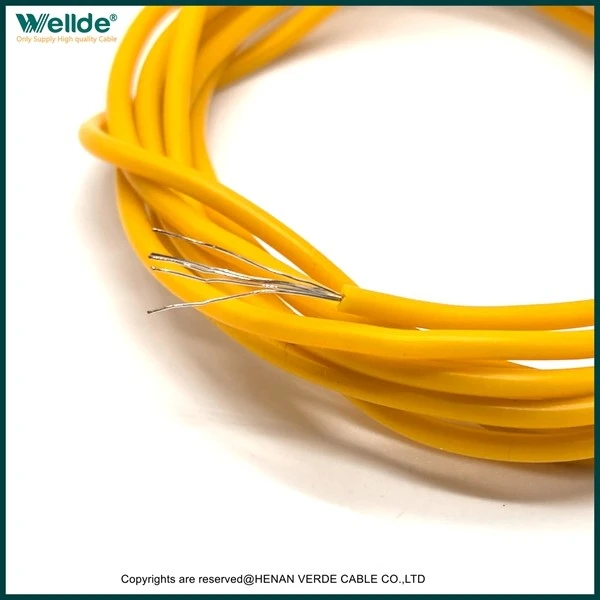

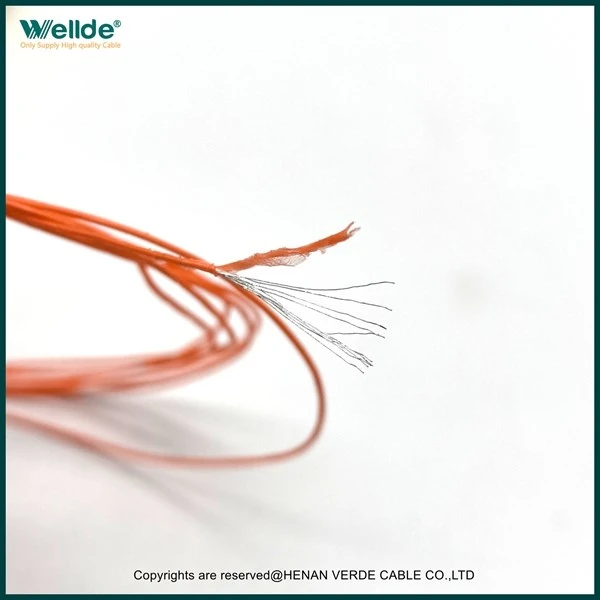

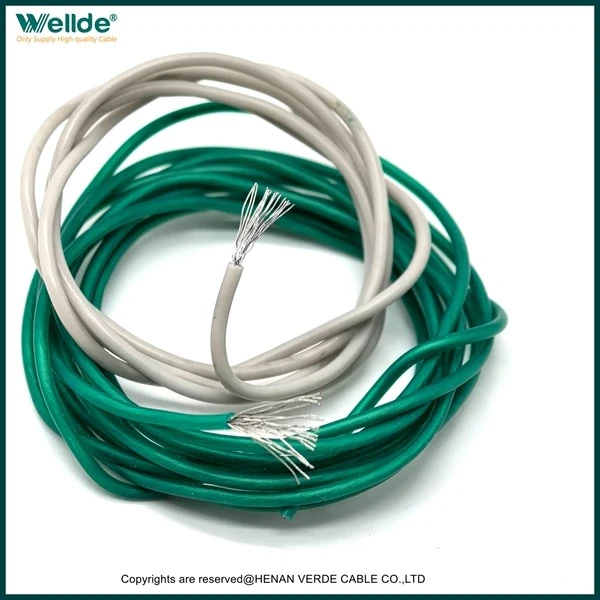

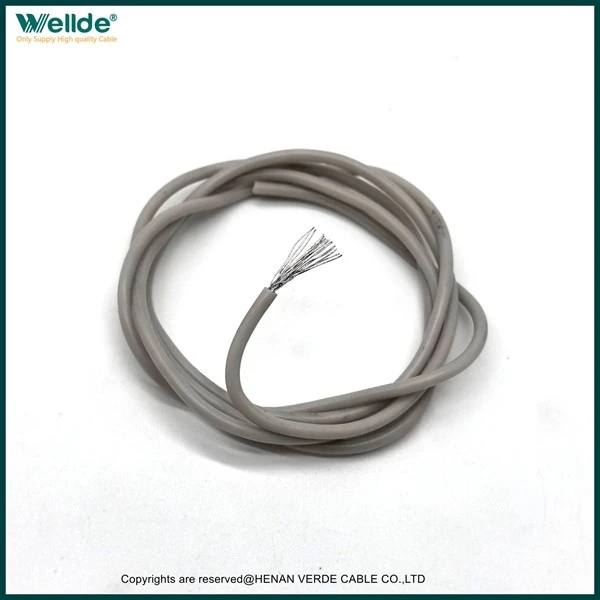

PTFE High Temperature Wire Technology Reference Table
| Item | Details |
|---|---|
| Product Name | PTFE High‑temperature Wire |
| Conductor | Silver‑plated Copper / Tin‑plated Copper / Bare Copper |
| Shield | Tin‑plated Copper Braided Shield / Non‑shielded |
| Outer Sheath | PTFE |
| Rated Voltage | 600V |
| Working Temperature | -40℃ ~ +200℃ |
| Color | White, Black, Red, Blue, Orange, etc. Custom colors available |
| Certificate | CE,Rohs,Third‑party test reports are available |
Advantages of PTFE high-temperature wire
1. Ultra wide temperature resistance range: 40 ℃ low temperature does not harden, 200 ℃ high temperature is not easy to melt and will not crack
2.Excellent insulation performance, rated voltage of 600V, high insulation impedance
3. Chemical corrosion resistance, oil resistance, acid and alkali resistance, suitable for harsh working conditions
4. Color customization is supported, with optional shielded/unshielded versions available
Extruded Sheath
Wrapped Sheath
Technical Reference Table
The above data is for reference only. The product specifications are subject to mutual confirmation by both parties
|
Conductor |
Insulation |
Electrical Characteristic |
||||||
|
AWG |
No.xΦmm |
Stranded OD |
Insulation Thickness |
OD |
Conductor Resistance |
Dielectric Strength AC |
||
|
1 |
836 |
× |
0.254 |
9.00 |
1.14 |
11.30 |
0.45 |
2500V |
|
2 |
684 |
× |
0.254 |
8.04 |
0.76 |
9.56 |
0.55 |
|
|
4 |
133 |
× |
0.45 |
6.20 |
0.76 |
7.70 |
0.9 |
|
|
6 |
133 |
× |
0.36 |
4.90 |
0.76 |
6.40 |
1.4 |
|
|
8 |
133 |
× |
0.284 |
3.90 |
0.76 |
5.40 |
2.3 |
|
|
10 |
37 |
× |
0.43 |
3.06 |
0.51 |
4.08 |
3.5 |
|
|
12 |
19 |
× |
0.47 |
2.35 |
0.51 |
3.37 |
5.8 |
|
|
14 |
19 |
× |
0.37 |
1.85 |
0.51 |
2.87 |
9.3 |
|
|
16 |
19 |
× |
0.30 |
1.50 |
0.51 |
2.50 |
14 |
|
|
18 |
1 |
× |
1.02 |
1.02 |
0.51 |
2.04 |
24 |
|
|
7 |
× |
0.40 |
1.20 |
0.51 |
2.20 |
23 |
||
|
19 |
× |
0.235 |
1.18 |
0.51 |
2.20 |
23 |
||
|
20 |
1 |
× |
0.80 |
0.80 |
0.51 |
1.80 |
38 |
|
|
7 |
× |
0.32 |
0.96 |
0.51 |
1.98 |
35 |
||
|
19 |
× |
0.185 |
0.93 |
0.51 |
1.98 |
35 |
||
|
22 |
1 |
× |
0.65 |
0.65 |
0.51 |
1.67 |
57 |
|
|
7 |
× |
0.25 |
0.75 |
0.51 |
1.80 |
55 |
||
|
19 |
× |
0.15 |
0.75 |
0.51 |
1.80 |
50 |
||
|
24 |
1 |
× |
0.50 |
0.50 |
0.51 |
1.50 |
97 |
|
|
7 |
× |
0.20 |
0.60 |
0.51 |
1.60 |
86 |
||
|
19 |
× |
0.12 |
0.60 |
0.51 |
1.60 |
88 |
||
|
26 |
7 |
× |
0.16 |
0.48 |
0.51 |
1.50 |
135 |
|
|
28 |
7 |
× |
0.12 |
0.36 |
0.51 |
1.38 |
240 |
|
|
30 |
7 |
× |
0.10 |
0.30 |
0.51 |
1.32 |
346 |
|
Application scenarios of PTFE high-temperature wire
1. Internal wiring of industrial heating equipment
2. Internal connecting wires for precision instruments and instrumentation equipment
3. Internal wiring of aviation and aerospace equipment
4. Wiring for high-temperature parts of ovens and drying equipment
5. Corrosion resistant circuits for chemical equipment
Packing & Delivery
Generally, delivery takes 7-14 days Customization may take 10-20 days

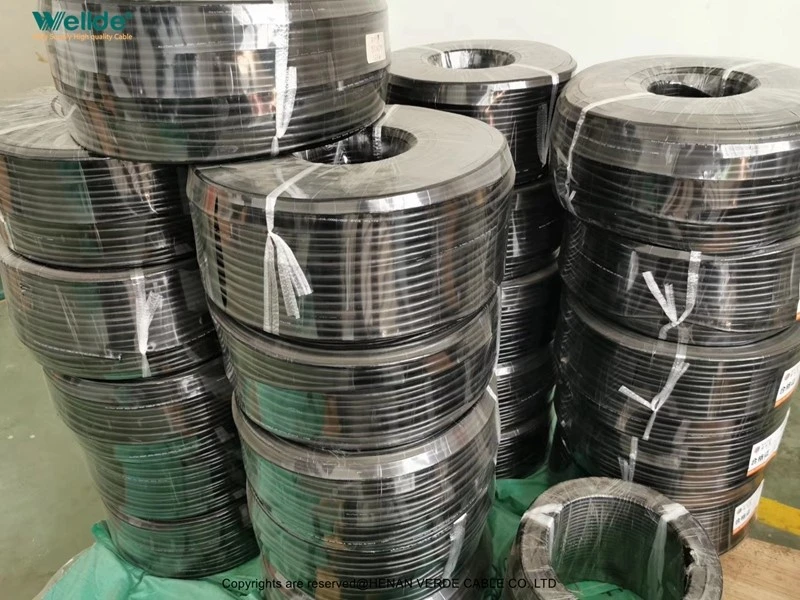

Goods are normally packed in coils, with carton, foam plus carton or pallet packaging available, and customized packing is acceptable.
FAQ
Q1: Can you provide samples?
A1: We can provide a small number of samples for testing, and the samples will incur shipping costs. For bulk orders, the sample fee can be refunded.
Q2: What is the packaging method?
A2: It is usually packaged with plastic shaft discs, outer cardboard boxes, and can be reinforced with pallets for sea transportation to avoid damage during transportation.
Q3: What is the minimum order quantity?
A3: Low MOQ for regular spot specifications; Customized special specifications have minimum order requirements, please contact sales for confirmation.
Q4: How long is the delivery cycle?
A4: 3-7 days for spot specifications, 10-30 working days for customized specifications, depending on the order quantity.
