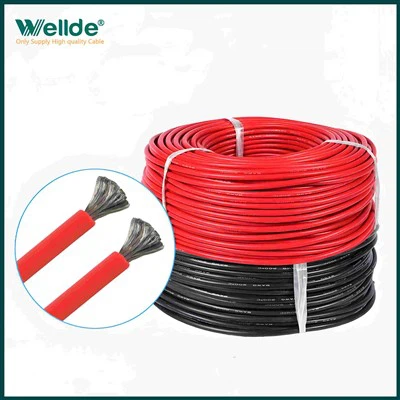

1.product description
1)Description
Nonminal Voltage:600V
Temperature Range:-60oC~+200oC
Conductor:Tinned Copper
Insulation:Silicone
Colour:Black,Brown,Red,Orange, Yellow,Green,Blue,Purple,Gray, White,Transparent,Yellow/green
2)Characteristic High temperature resistance,low temperature resistance anti-acid,anti-oil,antisepsis and moisture
3)Application the same with the inner fixed wires for the household appliance ,the lighting ,the electronic equipment,the temperature sensor,the aircraft,the aviation ,the war industry product ,the metallurgy and chemical engineering.the automobil and ship,the electric instrumentation,the light industry machinery and the electrical power installation etc.
2.product data
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 2.17 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 2.33 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.50 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 2.75 | 22.2 | ||
| 16 | 7/0.49 | 1.49 | 3.05 | 14 | ||
| 24 | 11/0.16 | 0.61 | 0.78 | 2.21 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 | ||
| 20 | 26/0.16 | 0.94 | 2.50 | 35.2 | ||
| 18 | 41/0.16 | 1.18 | 2.74 | 22.2 | ||
| 16 | 26/0.254 | 1.49 | 3.05 | 14 | ||
| 14 | 41/0.254 | 1.87 | 3.43 | 8.78 | ||
| 12 | 19/0.47 | 2.36 | 3.92 | 5.53 | ||
| 0.30mm² | 12/0.18 | 0.71 | 0.78 | 2.27 | 59.78 | 305/1000 |
| 0.50mm² | 20/0.18 | 0.92 | 2.48 | 40.1 | ||
| 0.75mm² | 30/0.18 | 1.13 | 2.69 | 26.7 | ||
| 1.00mm² | 40/0.18 | 1.31 | 2.87 | 20 | ||
| 1.25mm² | 50/0.18 | 1.46 | 3.02 | 14.35 | ||
| 2.00mm² | 41/0.254 | 1.87 | 3.43 | 8.78 | ||
| 2.50mm² | 50/0.254 | 2.08 | 3.64 | 7.16 | ||
