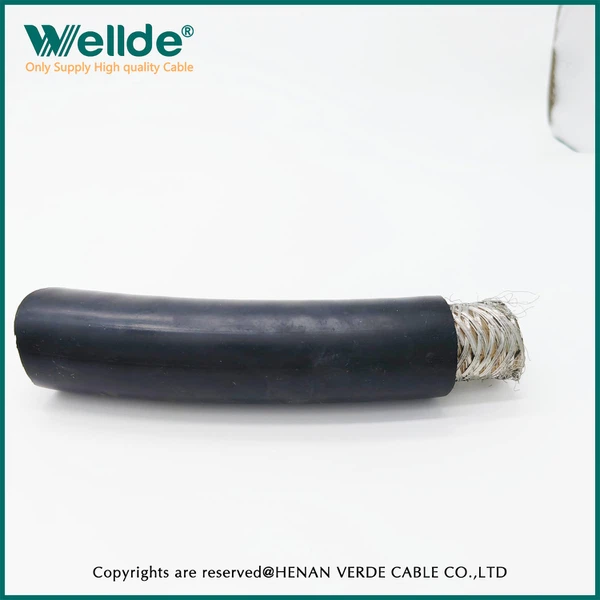

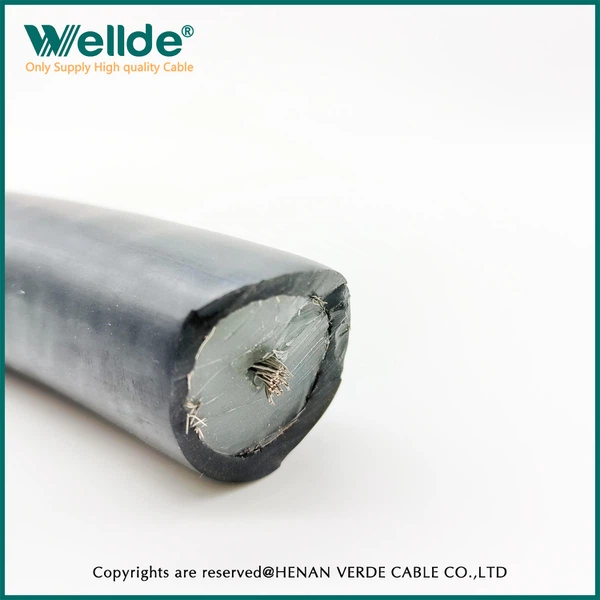

A woven bare copper silicone cable with excellent ultra-thick shielding performance, suitable for electrical cables, machine cables, aerospace fields, communication equipment, medical and other fields. Our sheath is very soft silicone, and the electric power wires inside are bare copper wires, as well as tinned copper wires. The conductivity is very good, and there are various specifications of shielding wires. If you are interested, you can contact us to obtain the desired samples.
Specification:
10kV silicone wire: 0.2mm,0.35mm,0.50mm,0.75mm,1.0mm,1.5mm , 2.0mm, 2.5mm, 4.0mm, 6.0mm,10mm2
AWG14 AWG16 AWG18 gauge is usual and hot export specification.
Here list the data for non shield silicone wire, we can also produce shield high voltage silicone wire such as tinned copper cable braid shield.
The high voltage silicone wire cable has been exported to:
Holland,France, Hungary,Australia,Argentina, Mexico,South Africa,USA,Vietnam
Packing:
100meter per roll,then with carton protection and pallet,packing way can be also customized as per customer's requirements.
|
导体 Conductor |
绝缘厚度 Insulation Thickness mm |
完成外径 Outer Diameter mm |
电气特性 Electrical Properties |
||||
|
截面积 Sectional Area mm2 |
导体构造 Conductor Construction NO.xΦmm |
直径 Diameter mm |
500V |
1000V |
500V |
1000V |
最大导体直流电阻 Max. Conductor Resistance DC 20℃ Ω/km |
|
0.5 |
28/0.15 |
0.90 |
1.0 |
1.2 |
2.90 |
3.30 |
40.1 |
|
0.75 |
24/0.20 |
1.15 |
1.0 |
1.2 |
3.20 |
3.60 |
26.7 |
|
1 |
32/0.20 |
1.30 |
1.0 |
1.2 |
3.30 |
3.70 |
20 |
|
1.5 |
48/0.20 |
1.60 |
1.0 |
1.2 |
3.60 |
4.0 |
13.7 |
|
2 |
40/0.25 |
1.85 |
1.0 |
1.2 |
3.90 |
4.30 |
9.9 |
|
2.5 |
49/0.25 |
2.00 |
1.0 |
1.2 |
4.00 |
4.40 |
8.21 |
|
4 |
56/0.30 |
2.80 |
1.2 |
1.4 |
5.20 |
5.60 |
5.09 |
|
6 |
84/0.30 |
3.60 |
1.2 |
1.5 |
6.00 |
6.60 |
3.39 |
|
10 |
84/0.40 |
4.60 |
1.4 |
1.6 |
7.40 |
7.80 |
1.95 |
|
16 |
126/0.40 |
5.80 |
1.4 |
1.6 |
8.60 |
9.0 |
1.24 |
|
25 |
196/0.40 |
7.60 |
1.6 |
1.8 |
10.80 |
11.2 |
0.795 |
|
35 |
494/0.30 |
8.80 |
1.8 |
2.0 |
12.40 |
12.80 |
0.565 |
|
50 |
396/0.40 |
10.6 |
2.0 |
2.2 |
14.60 |
15.0 |
0.393 |
|
70 |
551/0.0 |
12.8 |
2.0 |
2.2 |
16.80 |
17.20 |
0.277 |
|
95 |
760/0.40 |
14.8 |
2.2 |
2.5 |
19.20 |
19.80 |
0.210 |
|
120 |
608/0.50 |
16.5 |
2.2 |
2.5 |
21.00 |
21.50 |
0.164 |
|
150 185 |
760/0.50 |
18.2 |
2.4 |
2.6 |
23.00 |
23.40 |
0.132 |
|
925/0.50 |
20.0 |
2.4 |
2.6 |
24.80 |
25.20 |
0.108 |
|
|
240 |
1221/0.50 |
23.0 |
2.6 |
2.8 |
28.20 |
28.60 |
0.0817 |
