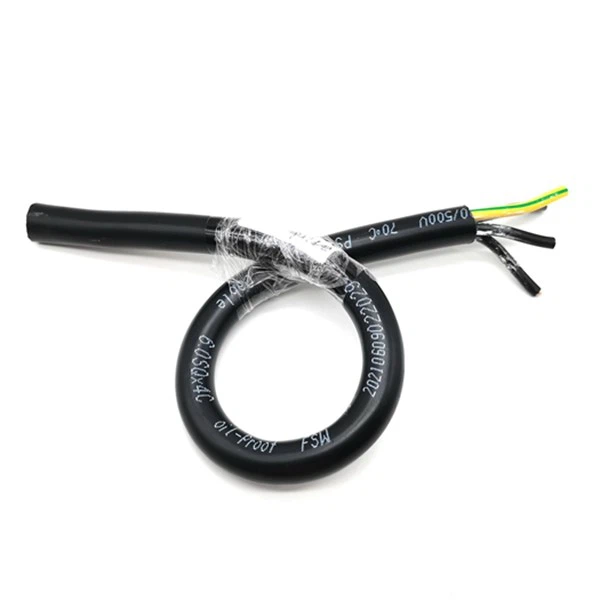

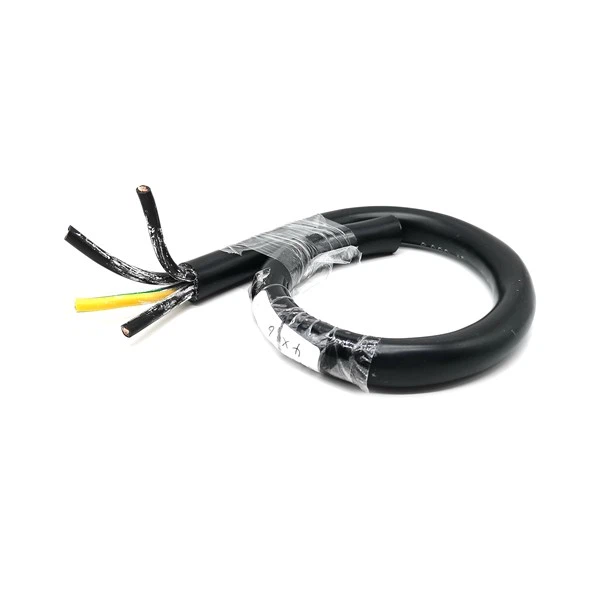

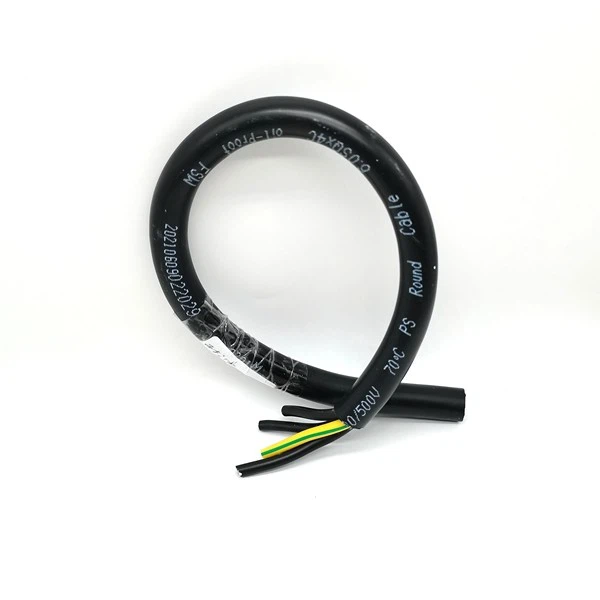

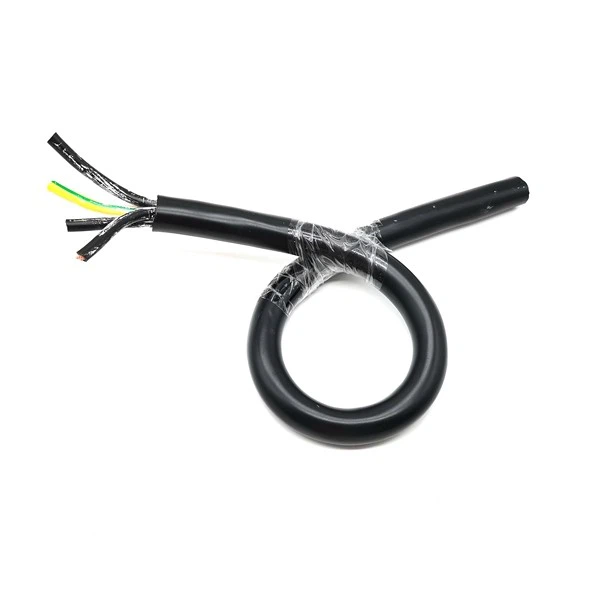

Description for Neoprene Cable:
Stranded Copper wire conductor EPR rubber insulation rubber sheath cable
Application:
Neoprene cable provides high flexibility and has the capacity to withstand weather, oils/greases, mechanical and thermal stresses. And it also used as power cable for equipment in industry work such as boilers, heating plates, hand lamps, transportable motor etc. Neoprene cable is suitable for direct laying on components and mechanical parts of machines i.e. lifts and cranes.
Type: 60245 IEC 66
Structure of Neoprene rubber cable:
Conductor:
class 2:stranded copper wires,
class 5: flexible stranded copper wire
flexible Tinned copper wire
Insulation: EPR Rubber
Sheath /Jacket: CPE Neoprene Rubber
Feature of Neoprene cable:
Standard acc. to IEC 60245-4
Flame retardant, UV resistant, Oil resistant, Cold resistant
Mechanical resistance, Heavy-duty
Technical Data of Neoprene flexible Rubber cable:
Rated voltage: U0/U = 450/750V, 600/1000V
Test voltage: 2500V
Range of temperature:-25℃~+60℃
Min bending radius:6×0
Core Identification: color coded
Conductor stranding: IEC 60228 C1.5
Specification for Neoprene EPR rubber cable:
Number of cores | Nominal cross-sectional area |
1C | 1.5mm²~400mm² |
2C | 1mm²~25mm² |
3C | 1mm²~95mm² |
4C | 1mm²~150mm² |
5C | 1mm²~25mm² |
