Spiral Coiled Cable

Spiral Coiled Cable,produced by Wellde cable company,only supply high quality cable
1.Focus on Wires and Cables,aim to be your most Reliable supplier of wire cable.
2.Spiral Coiled Cable has been exported to more than 28 countries,16 professional electrical enginneers for technical team.
3.Spiral coiled cable is our very hot sales item,we can customize different and speical types.

Send Inquiry

Description

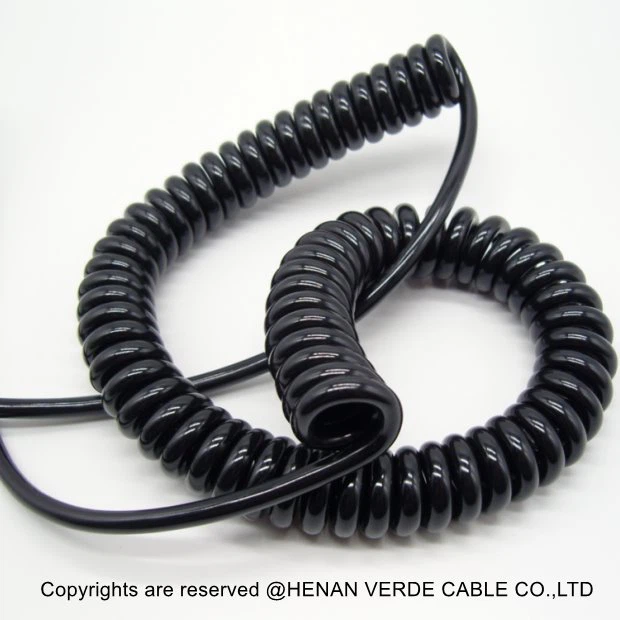

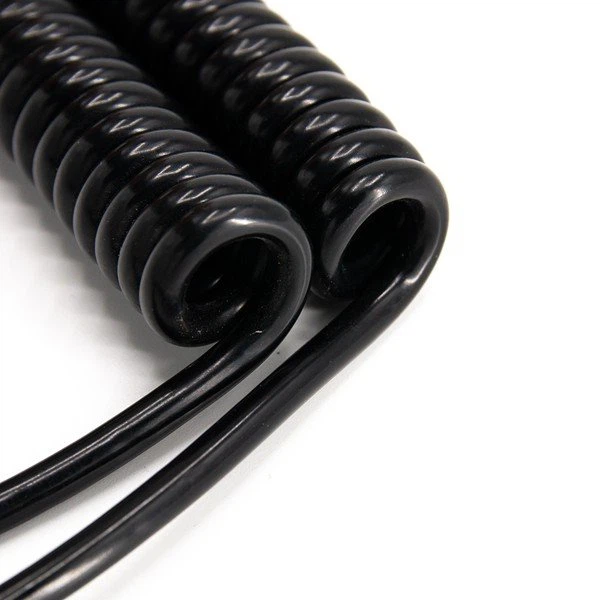

High Resilience Flexible Spiral Coiled Cable

Flexible and high elastic spiral coiled cable can be for mobile use, power supplying，mechanical engineering, medical equipment,,for car and truck,for moving lamps, different electric machines and equipment, for robot and industrial automation devices.Spiral cable is water resistant,so it can be used in wet indoor and outdoor environment，

Export experience and hot sale to: USA,UK,Poland,Switzerland,Croatia, Ukraine, Mexico, Chile, Malaysia, Thailand, Philippines,UAE,South Africa

Structure of Spiral Coiled Cable

conductor:	fine stranded OFC copper wire (oxygen free copper),according to IEC60227 60228 VDE0295 Class 5
Conductor insulation:	Flexible PVC or TPE
Insulation wire color and identification	White blue red black green or customized as er customer’s request
Wrapping tape	Special non-woven Wrap cushioning
Jacket material	PU or TPEE

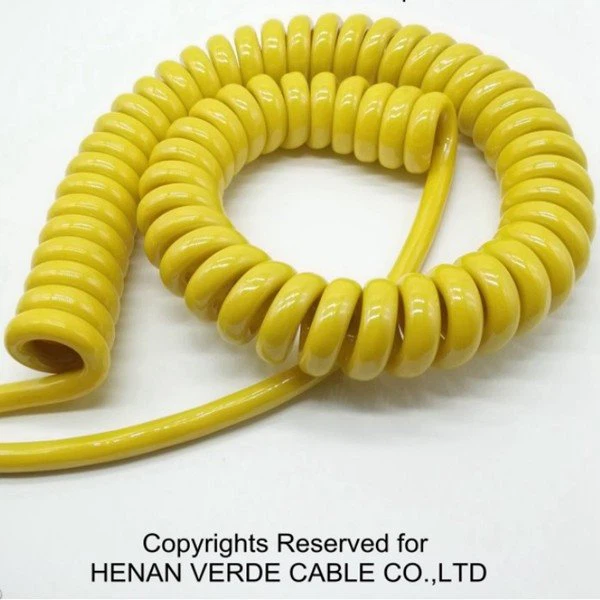

Outer jacket color:	Black, gray, Green, Yellow,Red,more colors can be customized as per customer’s request.

Advantage & characteristic:

special characteristic	coil stretched length is at least 4times of unextended length
	High resilience(typical big coil), TPEE jacket
Advantage	abrasion resistance,water and oil resistance,highly flexible,high resilience,UV-resistance
OEM and Customized	We can customize special and different types of spiral coiled cable.

Specification of Electrical Spiral coiled cable

Section area of conductor:	0.1mm,0.15mm, 0.20mm, 0.25mm2, 0.50mm2, 0.75mm2, 1.0mm2, 1.5mm, 2.0mm2,2.5mm, 4.0mm
Core number:	from 1core ,2core, 3core,4core, 5core, 6core, 7core,8core,10core....till 30core
More specifications can be customized as per customer’s requirements.Colors: shiny gloss, or fog,different colors can be chosen as what you like such as black, green, yellow, blue,red

Technical parameters:

Rated voltage	0.75-1.0mm² 300/500V ，1.5mm² 2.0mm²: 450/750V
Test voltage	3000V
Insulation resistance	>20 Gohm × cm
Operating temperature:	-60℃ ~ 105℃
Flame resistance:	following IEC60332-1 or 2
