1.product description
3core 4core 5 core spiral cable
Data: (unit: mm)
L (spiral length of bullet): 130±5
L1 (tail for spiral):140±10
L2 (tail for spiral): 140±10
D (outer diameter of the spring): 30±1
Spring wire structure: Oxygen-free copper wire
Insulation material: PVC
Spiral cable core number: 5 cores×0.12mm
Performance characteristics
1.Sheathed working environment：-50℃~+90℃
2.Withstand voltage：10KV
3.Strength of extension≥N/mm2：10
4.Elongation at break≥%：500
2.product data
| Test item | Test data | Testing result |
| Conductor material | Oxygen-free copper wire | Oxygen-free copper wire |
| Conductor diameter | 0. 15mm | 0. 15mm |
| Number of conductors | 15 | 15 |
| Conductor dc resistance |
20℃≤9.5Ω /km |
20℃≤9.5Ω /km |
| Insulating material | PVC | PVC |
| Insulation outside diameter |
1.0±0.1mm |
1.08,1.0,0.98,1.09 |
| Number of cores | 5 core | 5 core |
| Outer diameter of sheath |
6.4±0.1mm |
6.39,6.38,6.40,6.03 |
| Sheath material | PU Black gloss | PU Black gloss |
| Sheathed working environment | -50℃~+90℃ | -50℃~+90℃ |
| Withstand voltage | 10KV | 10KV |
| Strength of extension≥N/mm2 | 10 | 10 |
| Elongation at break≥% | 500 | 500 |
| Working length |
130±5mm |
131,128,130,129 |
| Outer diameter of the spring D： |
30±1mm |
30.5,29.5,29.1 |
| Tail L1L2: |
140±10mm |
140,141,139,138 |

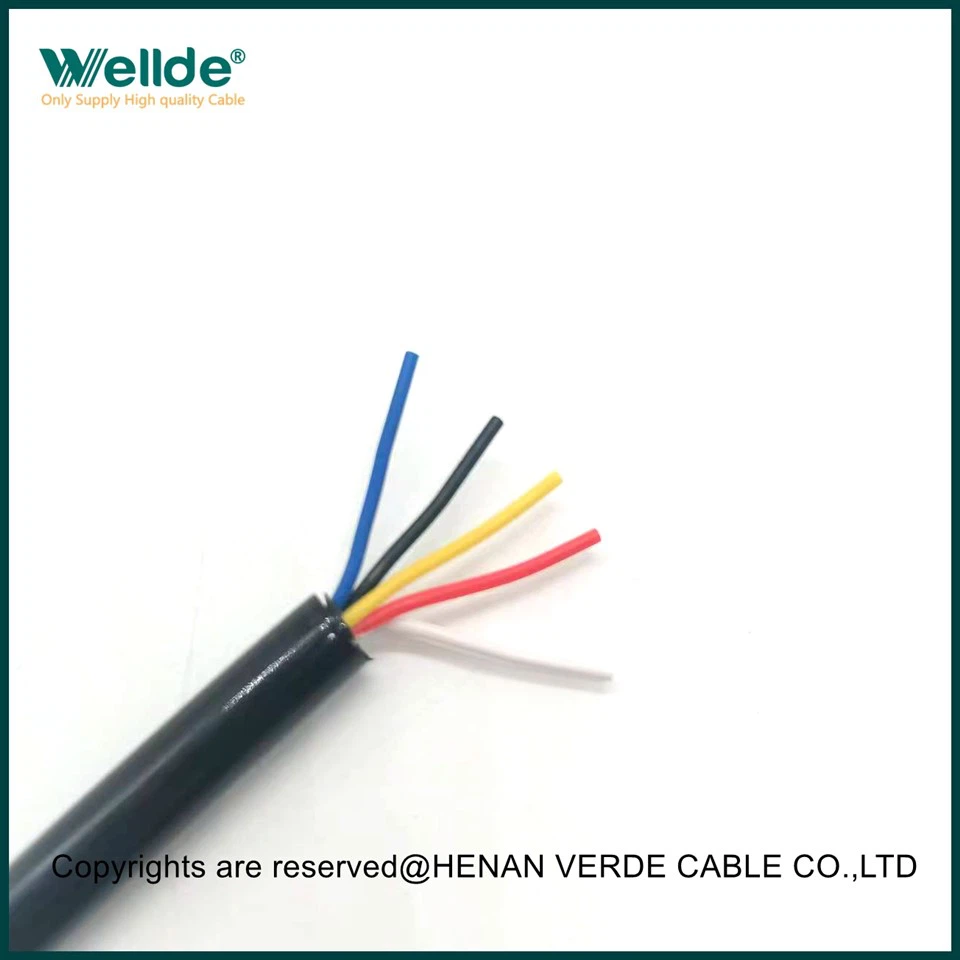

3.product images
4.FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3:Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
