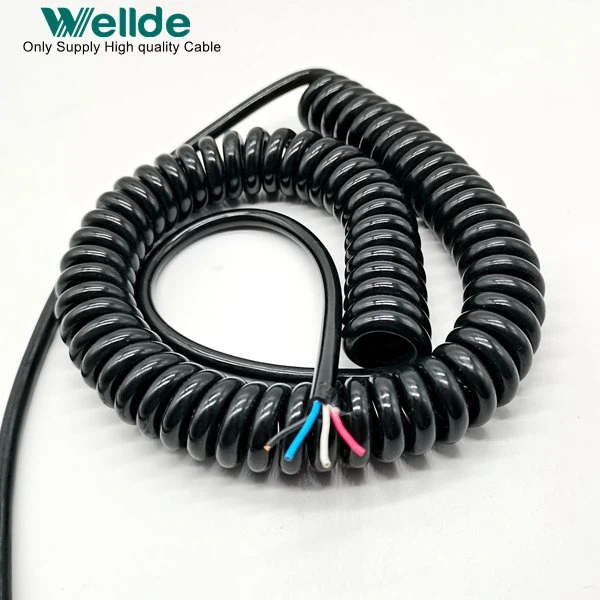

Construction for 4 Core Spiral Cable:
Conductor: stranded oxygen free copper wire
Insulation: PVC or PE, Rohs PVC
Outer Sheath: PUR Polyurethane or PVC for outer jacket
Shield layer can be produced according to customer's different requirements.
Where is Spiral Cable used for:
Coiled spiral cable can be well used for different machines and equipment , for power supplying power cord,for automotive, for medical equipment, for car and truck,for moving lamps, for robot and industrial automation devices.
Specification For 4 Core Spiral Cable:
● section area range: 0.10mm2, 0.25mm, 0.35mm2 , 0.5mm ,0.75mm,1.0mm ~ 4.0mm
● Coiled power cable size: usual size 0.75mm , 1.0mm,1.5mm 2.5mm, 4.0mm
● Gauge size: awg26, awg 24, awg 22,awg20, awg18, awg16, awg14,gauge 12#
Rating voltage: 30V~1000V
Tested voltage: 2000V No break down
Temperature resisting: low temperature -35℃,high temperature to 105℃ for PUR, -10℃ to 70℃ for PVC
Different colors for coiled 4 Core Spiral Cable:can be customized as per customer's requests.
colors have two types: one is gloss and bright color, another one is matte color without shiny.
Technical drawing for Spiral coiled cable
No.1 Parallel direction of ending tail for spiral cable

No.2: Vertical direction of tail for curly cable

If you want to get more information about our products,pls contact us and send email: linda@welldecable.com

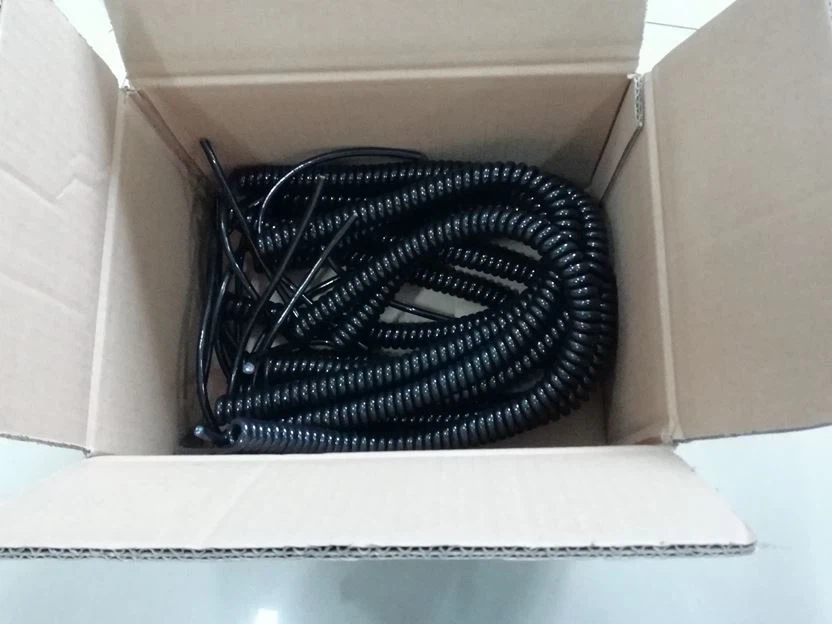

Packing of spiral cable
