Introduction to flat cable
The product adopts an integrated side-by-side multi-core flat structure, with a thickened black protective outer sheath, and is suitable for IDC piercing terminal crimping processing. It is widely used in the fields of industrial automation, industrial control equipment, precision instruments, and weak current signal transmission inside the equipment. With excellent temperature resistance, flame retardancy, and bending resistance, it has become the preferred wire for internal wiring of high-end equipment.
Core parameters of flat ribbon cable
| Project |
Parameter |
| Conductor specifications | High purity oxygen free stranded soft copper conductor |
| Rated temperature resistance | 125℃ |
| Core wire spacing | Industry general standard 1.27mm spacing |
| Core number specification | Support 4P, 8p, 12p, 16p, 18p, 20p, 24P, 30p, 40p, 50p, 64p and other full specification multi-core customization |
Advantages of flat cable
The wire core is regularly arranged with uniform spacing, which can be perfectly adapted to IDC cold pressed pierced terminal processing. Without peeling and welding of a single core wire, it can be connected stably by crimping. The wiring is firm, the contact resistance is small, and the signal transmission is stable and uninterrupted.
The overall line material is soft and can be bent at will. The flat and ultra-thin structure occupies very little space. It is very suitable for the shuttle wiring between narrow cavities inside the equipment and dense boards. It is an ideal connecting line for the integration of internal lines of various closed industrial control cabinets and automation equipment.
The whole line is made of brand-new environment-friendly insulating and sheathing materials, which comply with ROHS global environmental protection directive, and are lead-free and free of harmful substances. The traceability of raw materials can be checked.
Broad application scenarios
Industrial automation equipment, PLC programmable controller, internal circuit of industrial control cabinet, servo drive equipment, precision detection instruments, security monitoring equipment, internal interconnection circuit of intelligent equipment, control circuit of mechanical equipment, signal connection of various electronic module boards, etc

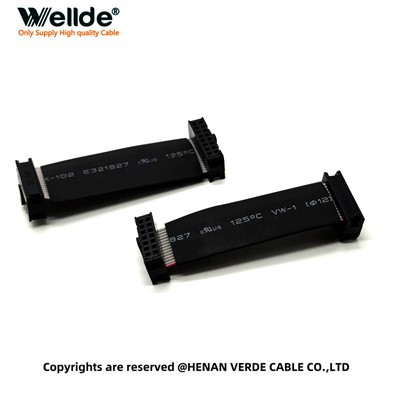

Detail drawing of flat cable
Packaging
