Description for Flat Ribbon Cable:

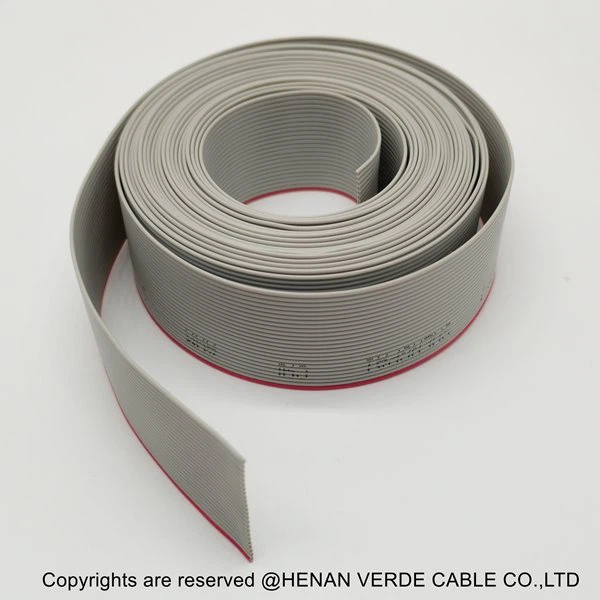

26AWG or 28AWG 1.27mm PH Flat Ribbon Cable,UL FLAT RIBBON WIRE Gray with Red line
UL Style:2651
Rated temperature:105℃
Rated voltage: 300Volt
Flame retardant : VW-1 vertical flame test
Conductor for flat ribbon cable
Material: tinned copper
AWG size: 26AWG gauge,24 pin
Number of strands in each conductor:7/0.16mm
Lay of strands in each conductor:0.5 inch at least
Cross section area:156 Circular mil
Insulation of Signal flat ribbon cable:
Material of insulation: Polyvinl chloride(PVC)Gray ROHS environmental material
Insulation thickness average: 9mil
Minimum insulation thickness: 7mil
Physical Properties for Flat Ribbon Cable:
After seven days air oven at 136℃
Average tensile strength:1500 Ibs/inch2
Percent of original:70% at least
Average elongation:200%
Percent of original:65% at least
Electrical Characteristic of flexible flat signal cable
Spark test:2500Volts
Dielectric strength test:Minimum2000Volts
Conductor resistance:Maximum148Ω/KM
Insulation resistance: Maximum100MΩ/KM
Capacity:40pF/M
Inductance:1.45µH/M
Propagation delay time:4.2ns/m
Technical data for 8pin 24 pin Conductor 26awg 28 gauge Flat ribbon wire
Description:
26AWG or 28AWG 1.27mm PH Flat Ribbon Cable,UL FLAT RIBBON WIRE Gray with Red line
UL Style:2651
Rated temperature:105℃
Rated voltage: 300Volt
Flame retardant : VW-1 vertical flame test
Conductor for ribbon flat cable
Material: tinned copper
AWG size: 26AWG gauge,24 pin
Number of strands in each conductor:7/0.16mm
Lay of strands in each conductor:0.5 inch at least
Cross section area:156 Circular mil
Insulation of flat ribbon cable:
Material of insulation: Polyvinl chloride(PVC)Gray ROHS environmental material
Insulation thickness average: 9mil
Minimum insulation thickness: 7mil
Physical Properties for flat ribbon wire:
After seven days air oven at 136℃
Average tensile strength:1500 Ibs/inch2
Percent of original:70% at least
Average elongation:200%
Percent of original:65% at least
Electrical Characteristic of flexible Signal Flat Ribbon Cable
Spark test:2500Volts
Dielectric strength test:Minimum2000Volts
Conductor resistance:Maximum148Ω/KM
Insulation resistance: Maximum100MΩ/KM
Capacity:40pF/M
Inductance:1.45µH/M
Propagation delay time:4.2ns/m
Technical data for 8pin 24 pin Conductor 26awg 28 gauge Flat ribbon wire
Coded | Number | Size of conductor | Thickness | Width | Allowable | |
No | Of Cores | (AWG) | Composition | (mm±0.1) | Tolerance (mm) | |
TA-08 | 8 | 26 | 7/0.16±0.008mm | 0.90 | 10.16mm | ±0.20 |
TA-24 | 24 | 26 | 7/0.16±0.008mm | 0.90 | 30.48mm | ±0.20 |
Drawing for 8 pin Flat ribbon cable
UL 2651 Technical specification for 8conductor,9 core,......30conductor,40core,50conductor,60 conductor till 64conductor with 28AWG Gray flat ribbon cable
UL style | Maximum use temperature | Maximum operating voltage | Number of conductor | Conductor size | Finished outer diameter | ||
Size | Copper Wire number/wire diameter | Thickness mm±0.05 | Width mm±0.2 | ||||
AWG | No./mm±0.05 | ||||||
2651 | 105℃ | 300V | 8 | 28 | 7/0.127 | 0.90 | 10.16 |
9 | 28 | 7/0.127 | 0.90 | 11.43 | |||
10 | 28 | 7/0.127 | 0.90 | 12.70 | |||
12 | 28 | 7/0.127 | 0.90 | 15.24 | |||
14 | 28 | 7/0.127 | 0.90 | 17.78 | |||
16 | 28 | 7/0.127 | 0.90 | 20.32 | |||
20 | 28 | 7/0.127 | 0.90 | 25.40 | |||
26 | 28 | 7/0.127 | 0.90 | 33.02 | |||
30 | 28 | 7/0.127 | 0.90 | 38.10 | |||
34 | 28 | 7/0.127 | 0.90 | 43.18 | |||
40 | 28 | 7/0.127 | 0.90 | 50.80 | |||
50 | 28 | 7/0.127 | 0.90 | 63.50 | |||
60 | 28 | 7/0.127 | 0.90 | 76.20 | |||
64 | 28 | 7/0.127 | 0.90 | 81.28 | |||
