Electronic Flat Ribbon Cable With IDC Termination

Electronic Flat Ribbon Cable With IDC Termination

1. No-welding assembly, suitable for mass production assembly in factories, reducing costs and increasing efficiency.
2. Multi-point output design, flexible wiring scheme, suitable for complex electrical control structures.
3. Sheath provides enhanced protection, resistant to bending and wear, with lower failure rate.
4. Full range of non-standard customization, needle count, length, and points can all be customized as needed.
5. Environmentally friendly and flame-retardant material, with UL and RoHS certifications, suitable for both domestic and export markets.

Send Inquiry

Description

Product Overview

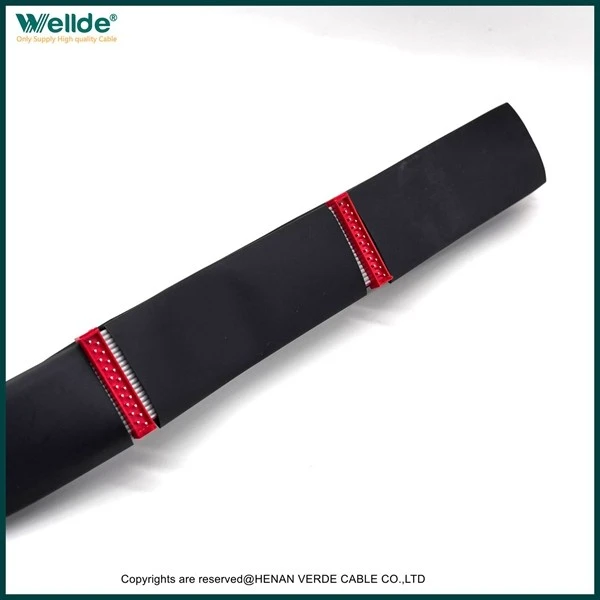

This gray power cable is made from UL2651 flat cable as the base material, equipped with 1.27mm spacing red IDC piercing connectors. It enables multiple points of single cable to be segmented and crimped with terminals. A black protective sheath is added at the outlet position, making its durability superior to that of conventional ordinary cables.

Structure Explanation of Flat Ribbon Cable

Structure Explanation

Flat Ribbon Cable

Parallel-type tin-coated copper conductor + flame-retardant PVC insulation layer, arranged in a regular pattern, with uniform electrical properties, resistant to stretching and bending, possessing excellent insulation and short-circuit prevention capabilities, and in compliance with UL wire safety standards.

IDC piercing connector

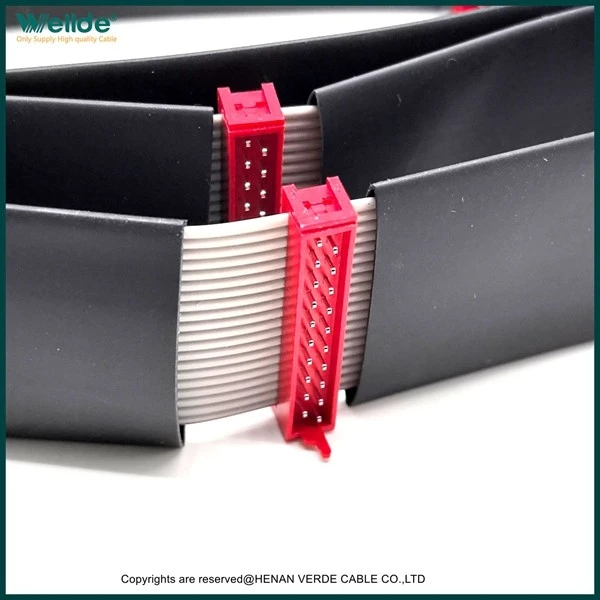

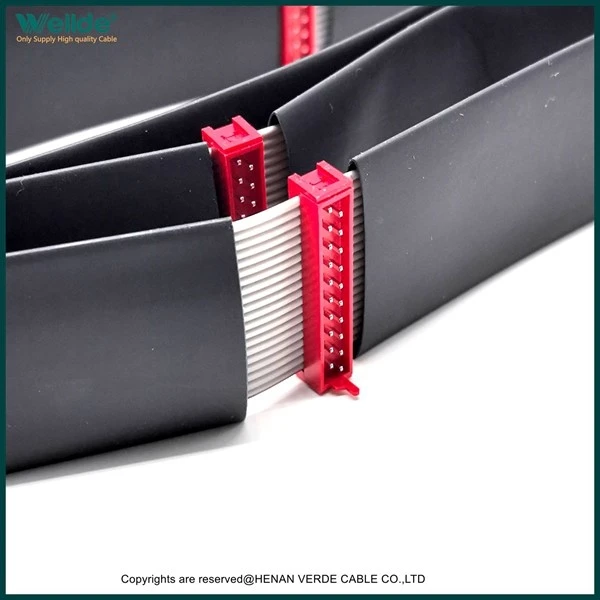

An integrated red plastic snap-on cover. The internal metal pins pierce through the insulation layer to achieve electrical connection. No soldering is required. The connection is firm and non-detachable. It is easy to disassemble and assemble, and is compatible with standardized socket connections.

Segmented protective sheath

Cover each outlet position with a black heat shrink sleeve to provide enhanced protection for the bending and stressed areas, preventing wear, cracking and copper wire exposure, thereby extending the service life of the wiring harness.

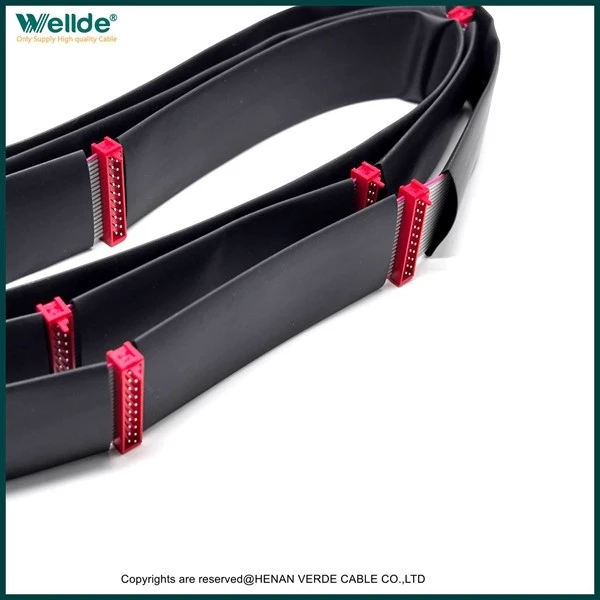

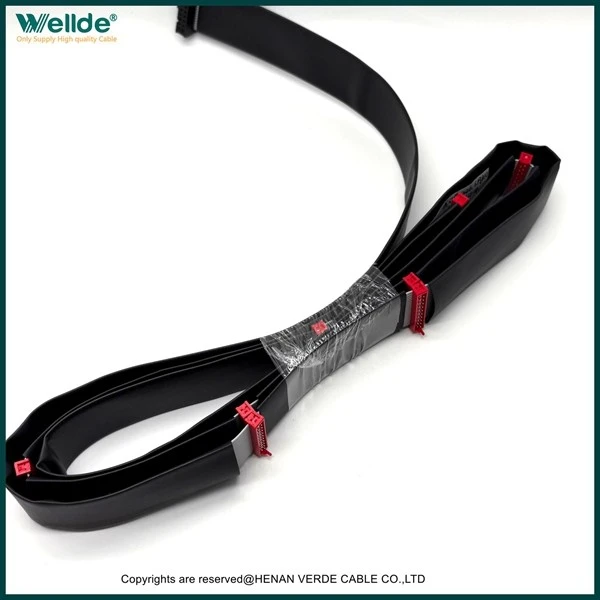

Multiple branching structures

Multiple connectors can be set at any position along a single cable, optimizing the internal wiring layout of the equipment and reducing the clutter of wiring.

Meaning and Selection Comparison Table of Flat Ribbon Cable

Model	Meaning	Applicable scenarios
UL2651	Standard gray flat cable Industry general standard model, light gray flat jacket, 1.27mm standard spacing, side with red edge positioning line, oxygen free copper multi strand conductor, rated voltage 300V, temperature resistance 105 ℃.	Internal connection of general electronic equipment: internal signal of computer motherboard/display, interconnection of industrial computer boards and cards, home appliance control board, LED display module, internal circuit of printer.
UL2651-TP	Color flat cable Each core wire has independent color insulation (red/yellow/Green/Blue/black, etc.), which replaces a single gray sheath. The core wire number is clear, without additional red side lines, and has strong anti misconnection ability.	Server Internal harness, precision instrument, complex control module, medical equipment, industrial control cabinet requiring rapid maintenance.
UL2651-H	High flexibility cable The ultra-fine multi strand stranded soft copper conductor is adopted, and the flat jacket is thickened. The repeated bending life is increased by more than 50%, and the structure is more flexible and not easy to break the core.	Vending machines, cash counting machines, small lifting equipment, printers/scanners, and frequently reciprocating electronic actuators.
UL2651-SP	Ultra narrow spacing cable The core wire spacing is optimized to 1.0mm, the number of cores under the same width is increased by 25%, and the volume is smaller, which is suitable for the internal wiring of high-density compact equipment.	Short distance signal transmission between wearable devices, small sensor arrays, micro projectors, portable digital products and high-density PCB boards.
UL2651-OD	Halogen free environmental protection cable The sheath and insulation are made of low smoke and halogen-free (LSZH) materials, which have less smoke and halogen-free toxic gases during combustion, and comply with the European Union rohs/reach environmental protection directive.	High end electronic equipment, public equipment: rail transit control system, bank self-service terminal, fire alarm equipment, places with mandatory requirements for environmental protection and safety.

Packing & Delivery

product-351-600

product-600-600
