High-Quality 4 core 0.5mm² PVC Shielded Control Cable – Reduce EMI & Improve Safety
Company Profile ：
With 15 years of manufacturing experience and a team of over 30 engineers, we have supplied our cables to clients in Myanmar, Vietnam, the UK, Indonesia, Singapore, Spain, Russia and many more.
Our reputation is built on quality, professional support, and repeated orders from satisfied customers worldwide.
5000+
active members
15+
years experience
6000m²
Factory
30+
engineers
services we offer
01.
Control Cable Pre-Sales：
- Provide detailed technical consultation and free samples.
- Support OEM/ODM, including custom lengths, colors, and labeling.
- Offer professional recommendations based on your project needs.
02.
Control Cable In-Sales：
- Closely follow up your order from production to shipment.
- Provide production updates, photos, and testing reports.
- Ensure on-time delivery and transparent communication.
03.
Control Cable After-Sales：
- Offer installation guidance and technical support.
- Respond quickly to any quality issues or technical questions.
- Provide warranty and replacement policies
.
04.
Customer Feedback：
- We value every client's feedback to improve our products and services.
- Encourage long-term partnerships and continuous improvement.
- Your suggestions help us innovate and grow together.
Key technologies of flexible control cable
01.
Control cable product description:

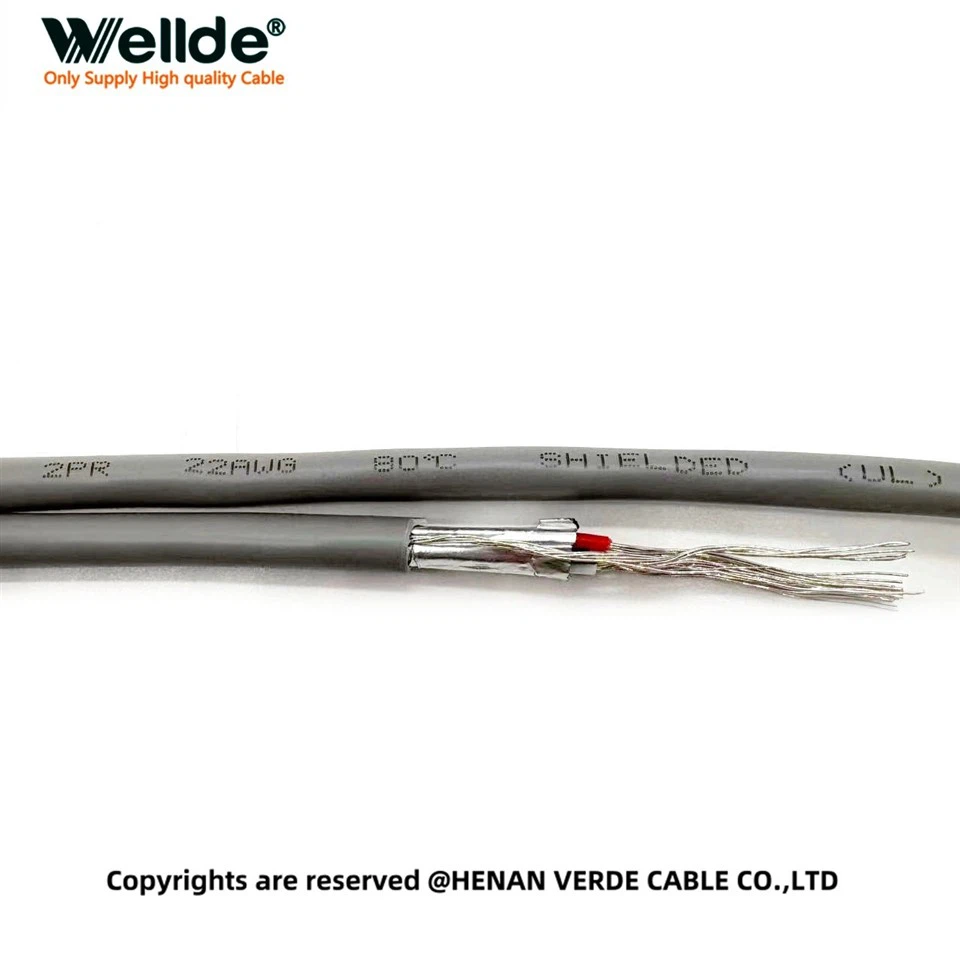

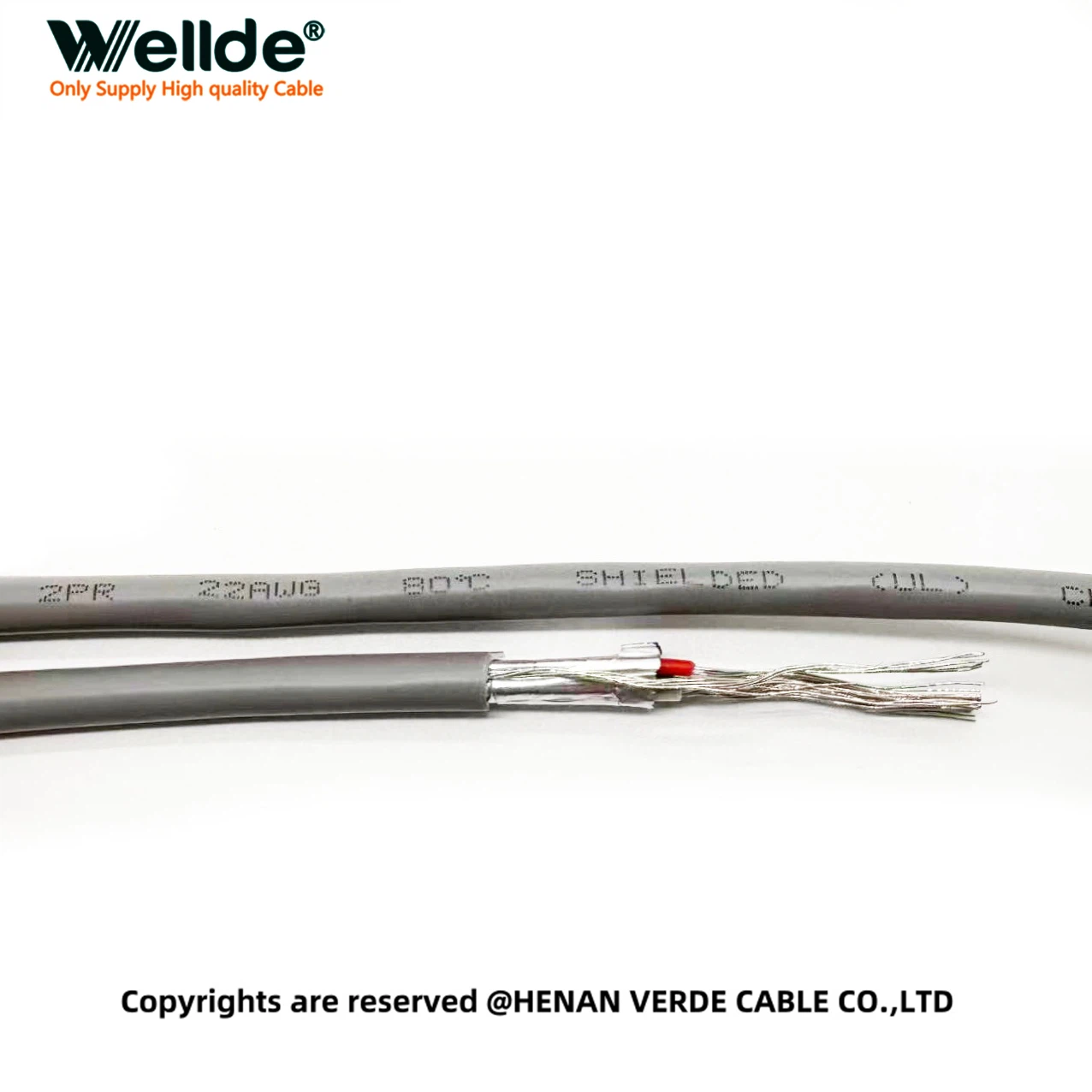

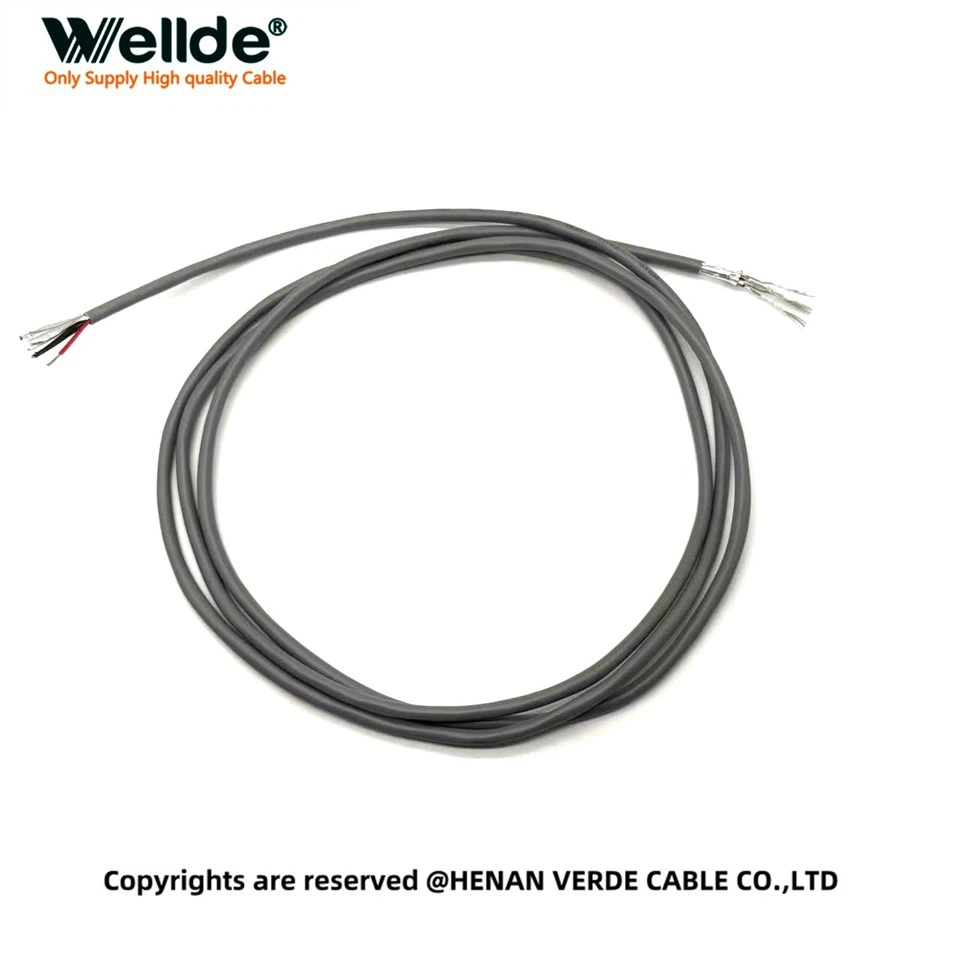

1：The 4 Core 22 AWG PVC Shielded Control Cable is designed for precise signal transmission and reliable power control across diverse industrial applications.
2：Each conductor is made of tinned copper with 7 strands per core, providing flexibility and excellent conductivity.
3：High-quality PVC insulation (approx. 1.51–1.53 mm) and a 0.64 mm thick outer jacket deliver extra durability.

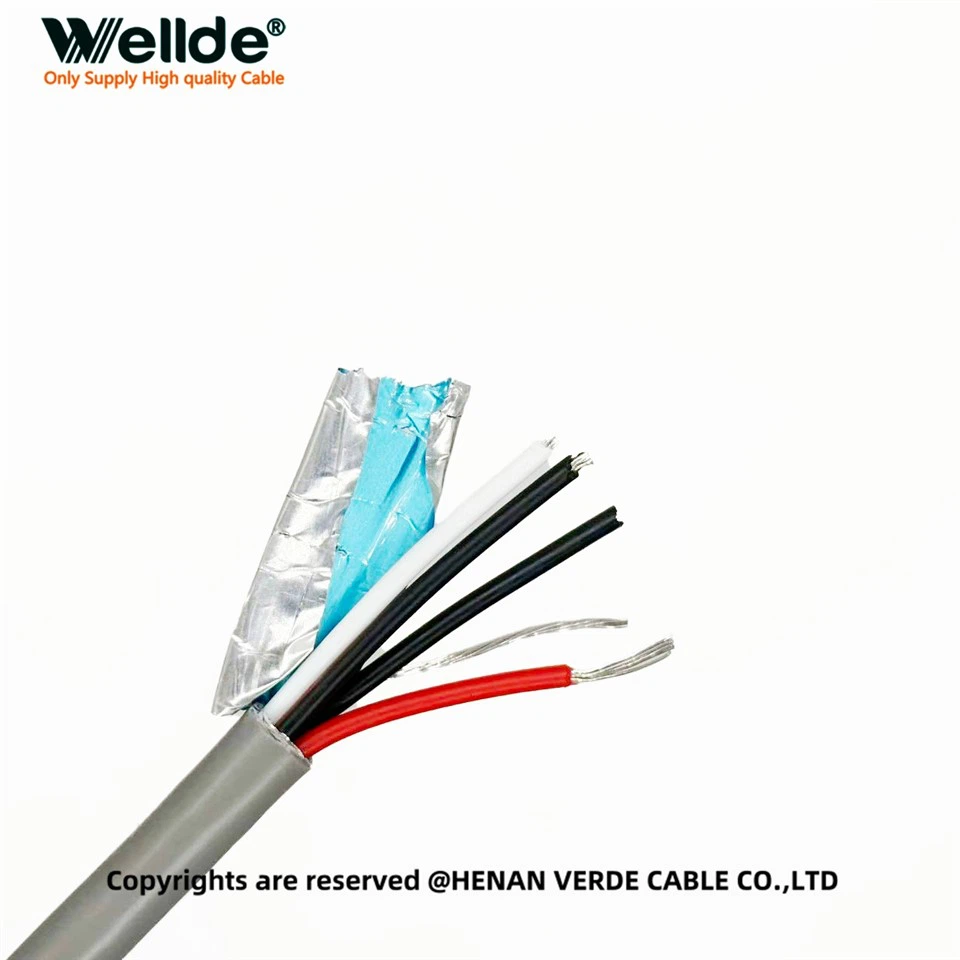

4：The cable features an aluminum foil shield and a dedicated ground wire to minimize interference and improve safety.
02.
Key Features of Flexable Control Cable :
- Reliable Conductors – 4 cores of 22 AWG, 7 strands per core, tinned copper for low resistance and long life.
- Enhanced Insulation – PVC insulation with approx. 0.33 mm thickness provides stable performance and easy installation.
- Robust Outer Jacket – 0.64 mm PVC jacket with 5.46 mm overall diameter, resistant to wear, moisture, and oil.

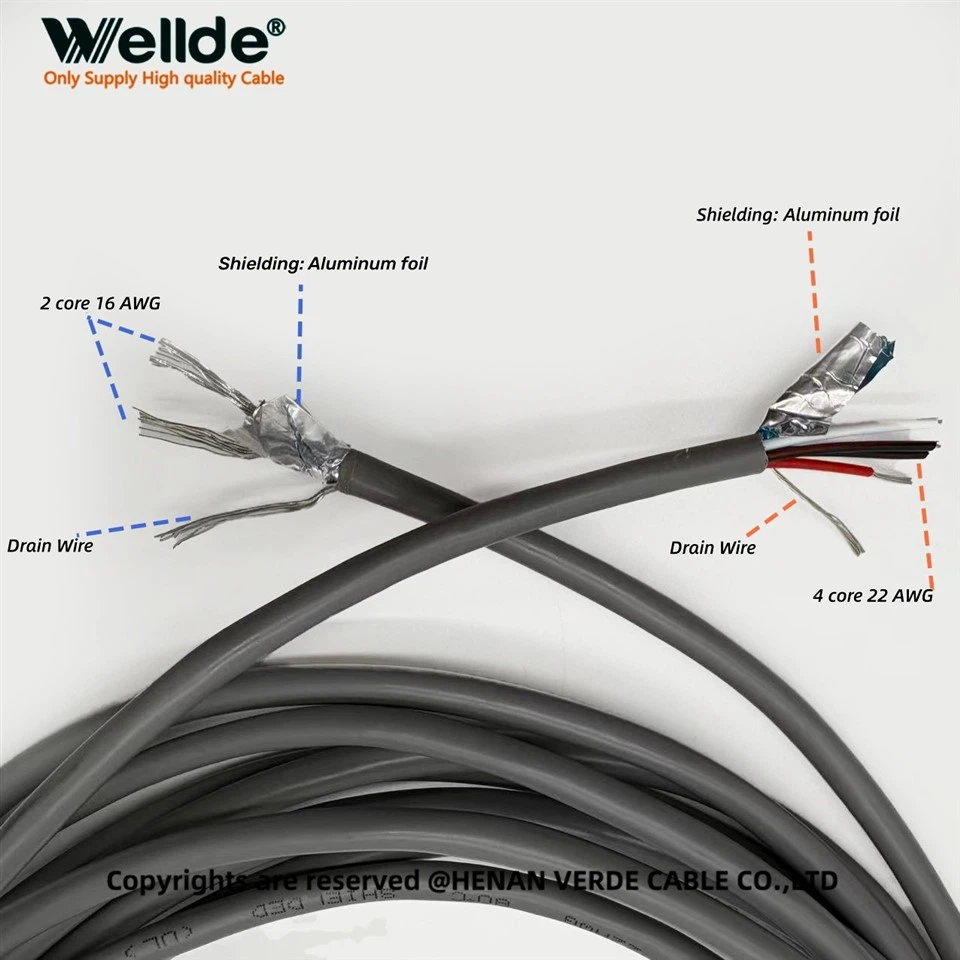

- Strong Shielding – Aluminum foil shielding plus ground wire reduces electromagnetic interference (EMI) and improves signal integrity.
- Global Trust – Exported to multiple countries with consistent repeat orders.
- Professional Engineering Team – Over 30 engineers to provide technical guidance and project solutions.
Technical Specifications – 4 Core 22 AWG PVC Shielded Control Cable
| Parameter | Specification |
|---|---|
| Number of Cores | 4 |
| Conductor Structure | 7 strands per core (tinned copper) |
| Single Wire Diameter | 0.246 / 0.245 / 0.256 mm |
| Insulation Outer Diameter | 1.51 / 1.53 / 1.52 mm |
| Insulation Thickness | 0.33 mm |
| Shielding | Aluminum foil |
| Jacket Material | PVC |
| Jacket Outer Diameter | 5.46 mm |
| Jacket Thickness | 0.64 mm |
| Ground Wire | 7 strands (tinned copper) |
| Conductor Material | Tinned copper |
