Henan Verde Cable Co., Ltd. is one of the leading manufacturers and suppliers of 3 core 0.5mm pur coiled spiral cable in China, featured by quality products and good price. If you're going to wholesale durable 3 core 0.5mm pur coiled spiral cable made in China, welcome to get price list from our factory.
product description
Wire structure：Oxygen free copper conductor,stranded copper wires,PVC insulation,ROHS PVC conforms to CE qualified,PUR outer sheath
Specification: 3core x0.5mm2, besides 3c x0.5mm, we often produce and export 2core spiral cable, 3core coiled power cable, 4core spiral cable, 5 core spiral cable, 6 core spiral cable, 7core coiled cable, 8core spiral cable
Wire action
1.Spiral cable elastic rebound fast can be restored to the original state in a short time, it is easy to stretch, and will not be messy
2.Soft conductor structure, good flexibility, good flexibility, high resilience (elongation length up to 3-5 times the original spring length)
3.Long service life, can reach 5 million effective cycles
4.It has good resistance to signal interference and electromagnetic interference
product data
| Specification: 3core x0.5mm2 Flexible Spiral Cable | ||||
| Technical data sheet for Coiled Spiral Cable | ||||
| Cables specificatior | 3*0.5mm2 | |||
| Conductor material | Bare copper | |||
| Conductor structure | 28 / 0.15mm copper wire | |||
| Insulation material | PVC | |||
| Sheath material | PUR | |||
| nsulation color | white,areen.brown | |||
| Sheath color | Black | |||
| Cable diameter | d=5.5mm±0.2mm | |||
| Spiral diameter | D=21mm±2mm | |||
| Length of spiral part (L) | L=750mm ±10mm(unstretched length) | |||
| Length of straight part | L1=500mm±10mm | |||
| Length of straight part | L2=200mm±10mm | |||
| Stripped length | L3=25mm±3mm | |||
| Tin or crimp the ends of the wire with a sleeve | ||||
| Length of bare wires | 4mm±1mm | |||
| Stretched wire length | 3000mm | |||
|

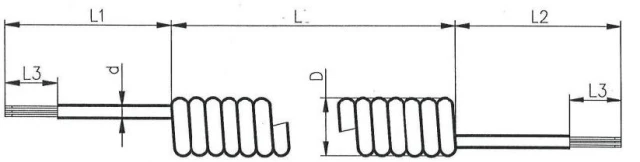

Length L : spiral length before stretched Stretched length: working length when cable is pulled and extended |
||||

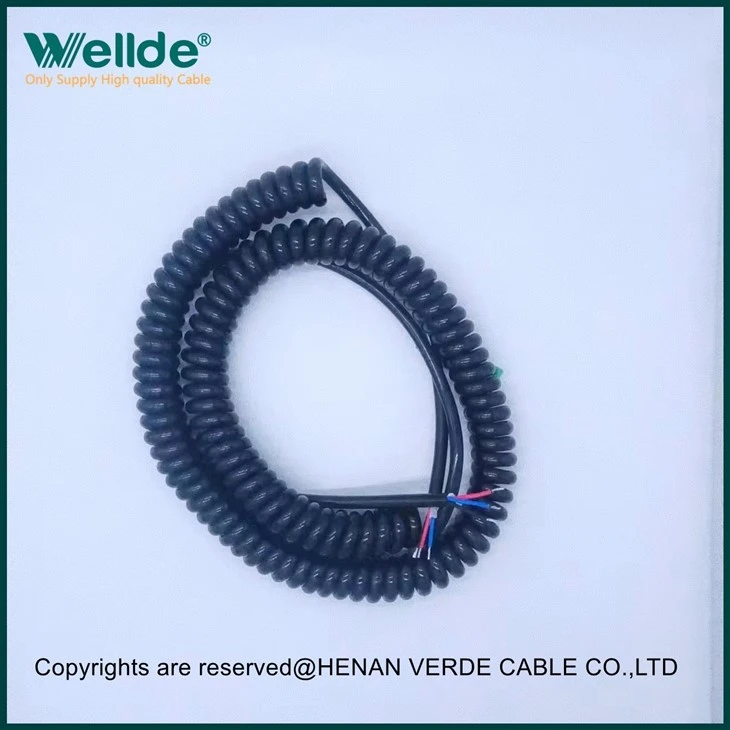

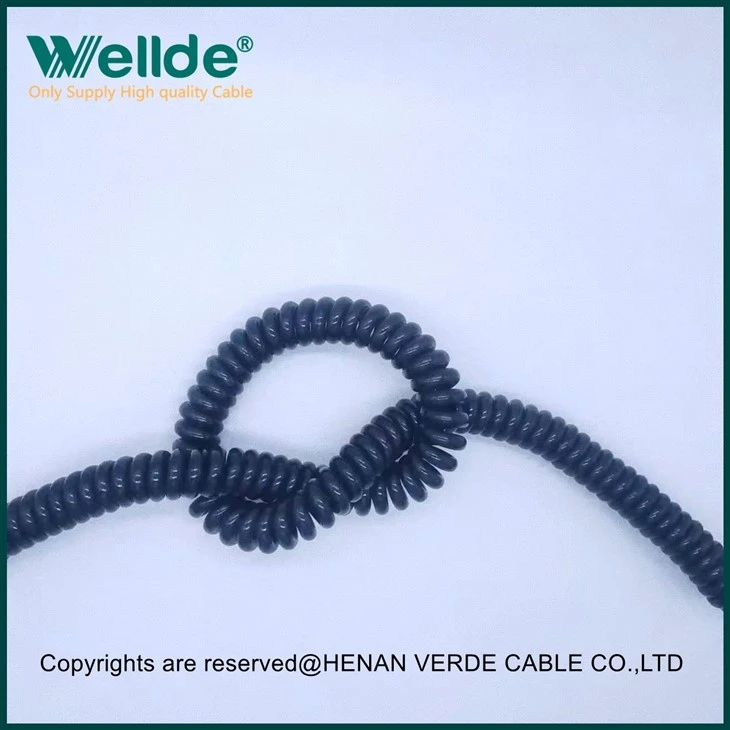

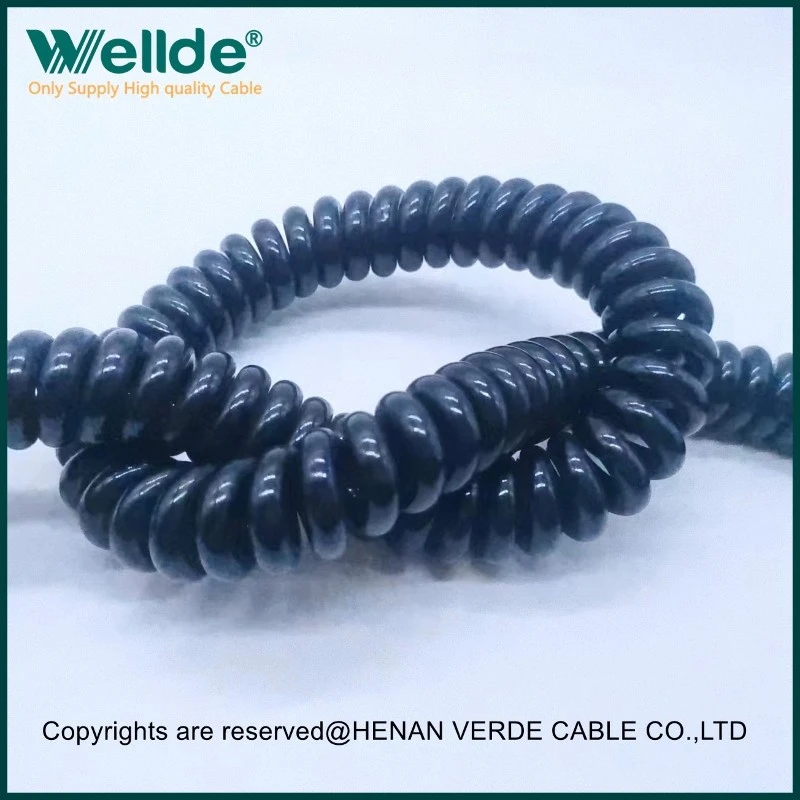

product images
