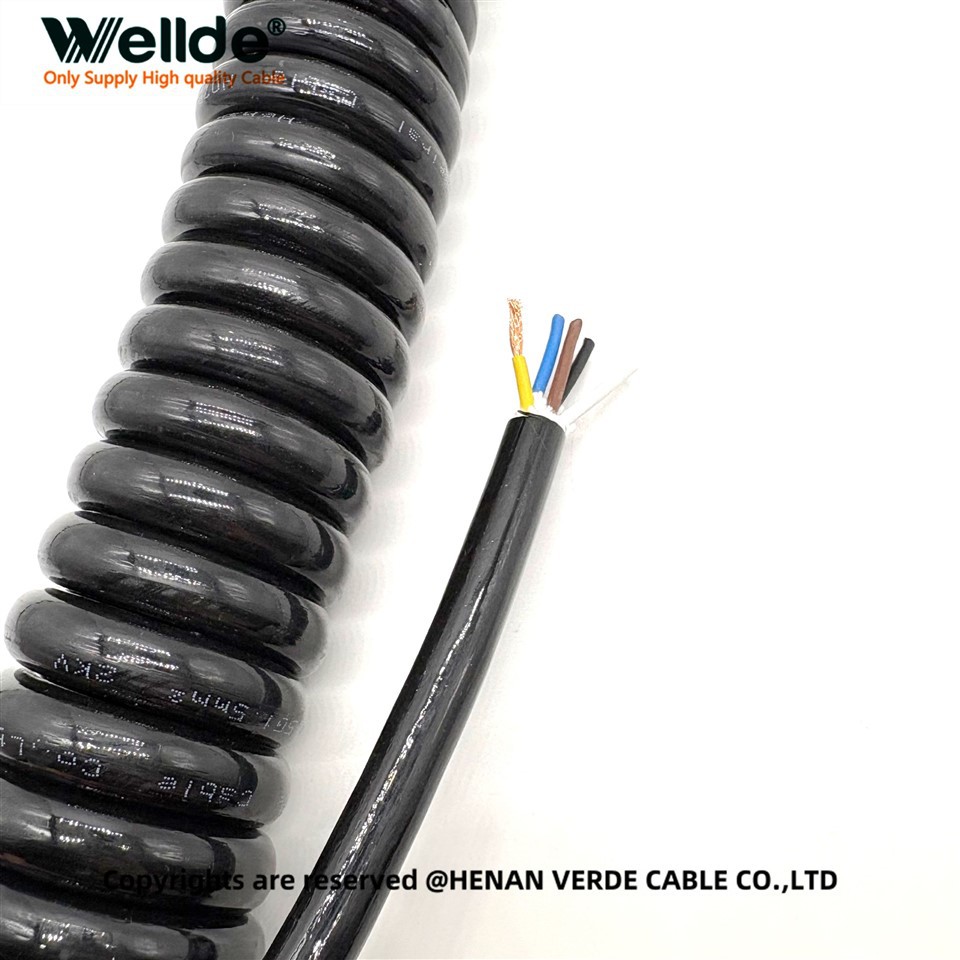

5 Conductor 1.5mm² spiral cable

1: This 5x1.5mm² coiled cable is built for flexibility and strength.
2: It uses bare copper conductors, PVC insulation, and a tough PUR outer sheath.
3: Designed for motion and durability.
4: Waterproof, UV-resistant, and low smoke zero halogen. Ideal for indoor and outdoor use in automation, tools, medical, or transport applications.

Send Inquiry

Description

5x1.5mm² Retractable PUR Spiral Cable – Waterproof, UV-Resistant, LSZH

Product Description :

It features bare copper conductors with a single wire diameter of 0.149mm, ensuring excellent conductivity and stable electrical transmission.

Each core is color-coded (brown, white, black, blue, yellow-green) with PVC insulation for easy identification.
The outer PUR jacket offers outstanding resistance to wear, oils, UV rays, and moisture - making it ideal for both indoor and outdoor dynamic applications.
The cable is Low Smoke Zero Halogen (LSZH), making it a safe choice for enclosed or sensitive areas.

Key Specifications:

Conductor: Bare copper wires (Ø0.149mm single strand)

Core Colors: Brown / White / Black / Blue / Green-Yellow

Insulation: PVC

Sheath: Tough polyurethane (PUR)

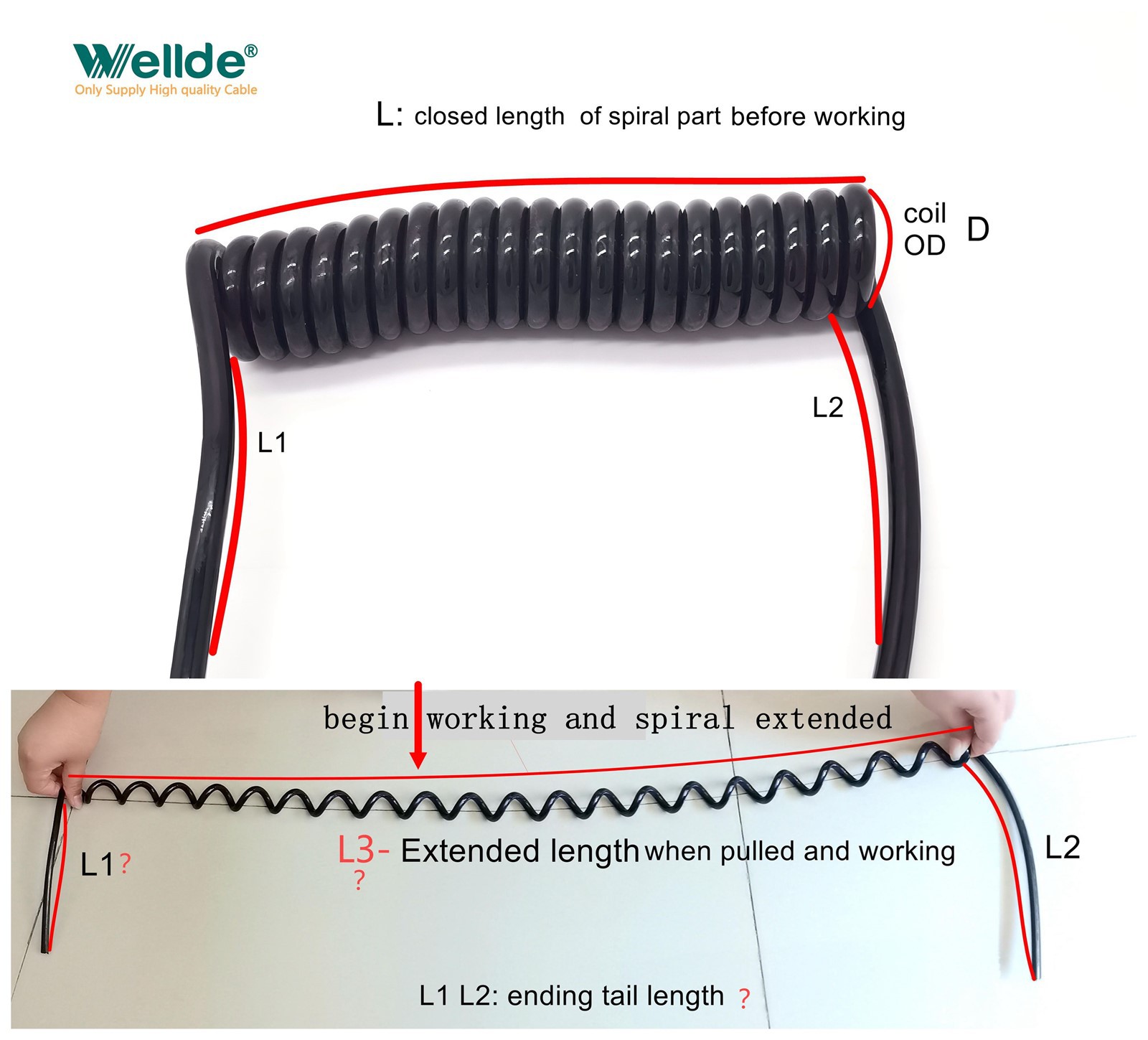

Tail Lengths: L1 = 21cm, L2 = 22cm

Working Length: 8 meters

Natural Length: 26cm

Outer Diameter of Cable: 11.08mm

Outer Diameter of Coil: 46.4mm

Features: UV-resistant, waterproof, abrasion-resistant, LSZH

Main Benefits :

Long Reach, Compact Form – The coiled design extends to 8 meters while remaining compact when retracted.

Environmental Resistance – PUR jacket is highly durable in outdoor or high-movement settings.

Enhanced Safety – LSZH materials reduce toxic emissions in case of fire.

Multi-core Flexibility – 5 conductors allow for efficient signal and power distribution.

Reliable Connectivity – Bare copper ensures low resistance and high conductivity.

FAQ :

Q1: Do you offer customization for tail lengths or core numbers?
A1: Absolutely. We support OEM and ODM customization. Tail lengths, core count, sheath material, insulation color, and more can be adjusted to meet your project's specific requirements.

Q2: What shipping options are available for this spiral cable?
A2: We offer flexible shipping methods including DHL, FedEx, UPS, air freight, and sea freight. Delivery time typically ranges from 7 to 15 working days, depending on your location and order quantity.
