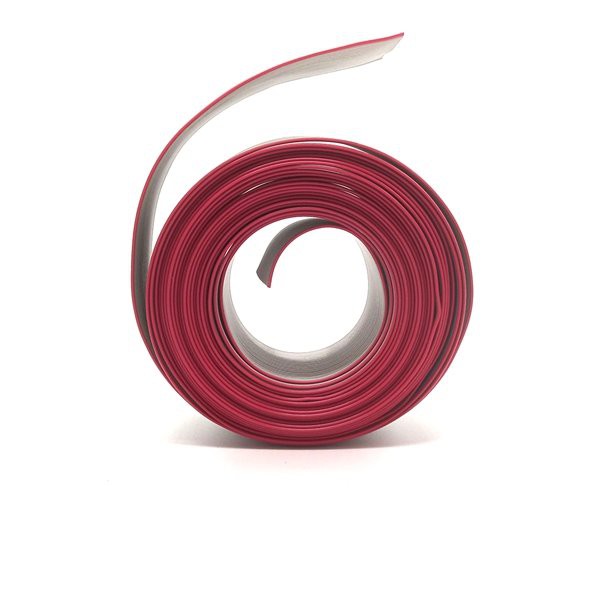

Description for Gray Flat cable:
9 Pin 26AWG 1.27mm Flexible Flat Ribbon Cable,UL 265 FLAT RIBBON WIRE Gray with Red line
Main technical parameters of ribbon gray flat cable
Rated temperature:105℃
Rated voltage: 300Volt
Flame retardant : VW-1 vertical flame test
Conductor for ribbon flat cable
Material: tinned copper
AWG size: 28 AWG , 26AWG gauge,
Number of strands & diameter for each wire: 7/0.16mm
Insulation of flat ribbon Gray Flat Cable:
Material of insulation: Polyvinl chloride(PVC) Gray ROHS environmental material
Insulation thickness average: 9mil
Minimum insulation thickness: 7mil
Advantage of ribbon Gray Flat cable
Gray flat cable is with small size and light weight, it is the only solution to meet the requirements of miniaturization and mobility;
It can be moved, bent and twisted without damaging the wires, and can meet different shapes and special package sizes;
The gray flat ribbon cable has excellent electrical properties, dielectric properties and heat resistance;
The gray flat cable has higher assembly reliability and quality
Application of gray flat cable:
Gray flat cable is very light and small volume, it can replace harness. It is most suitable for computer,circuit board, data transmission cables between moving parts and mainboards, between board-to-board, and miniaturized electrical equipment. At present, flat ribbon cable is widely used in the connection between the print head of various printers and the main board.
Physical Properties for flat ribbon wire:
After seven days air oven at 136℃
Average tensile strength:1500 Ibs/inch2
Percent of original:70% at least
Average elongation:200%
Percent of original:65% at least
Electrical Characteristic of flexible flat signal cable
Spark test:2500Volts
Dielectric strength test:Minimum2000Volts
Conductor resistance:Maximum148Ω/KM
Insulation resistance: Maximum100MΩ/KM
Capacity:40pF/M
Inductance:1.45µH/M
Propagation delay time:4.2ns/m
Construction Drawing for 9 pin ribbon cable
Description for Gray Flat cable:
9 Pin 26AWG 1.27mm Flexible Flat Ribbon Cable,UL 265 FLAT RIBBON WIRE Gray with Red line
Main technical parameters of gray flat ribbon cable
Rated temperature:105℃
Rated voltage: 300Volt
Flame retardant : VW-1 vertical flame test
Conductor for ribbon flat cable
Material: tinned copper
AWG size: 28 AWG , 26AWG gauge,
Number of strands & diameter for each wire: 7/0.16mm
Insulation of flat ribbon cable:
Material of insulation: Polyvinl chloride(PVC) Gray ROHS environmental material
Insulation thickness average: 9mil
Minimum insulation thickness: 7mil
Advantage of flat ribbon cable
Gray flat cable is with small size and light weight, it is the only solution to meet the requirements of miniaturization and mobility;
It can be moved, bent and twisted without damaging the wires, and can meet different shapes and special package sizes;
The gray flat ribbon cable has excellent electrical properties, dielectric properties and heat resistance;
The gray flat cable has higher assembly reliability and quality
Application of gray flat cable:
Gray flat cable is very light and small volume, it can replace harness. It is most suitable for computer,circuit board, data transmission cables between moving parts and mainboards, between board-to-board, and miniaturized electrical equipment. At present, flat ribbon cable is widely used in the connection between the print head of various printers and the main board.
Gray flat cable color:
Gray color with Red edge with one line like UL2651
Electrical Characteristic
Spark test:2500Volts
Dielectric strength test:Minimum2000Volts
Conductor resistance:Maximum148Ω/KM
Insulation resistance: Maximum100MΩ/KM
Capacity:40pF/M
Inductance:1.45µH/M
Propagation delay time:4.2ns/m
Construction Drawing for 9 pin ribbon cable
Technical data for 9pin 9conductor 26awg gauge Flat ribbon wire
Coded | Number | Size of conductor | Thickness | A（Width） | Allowable | |
No | Of Cores | (AWG) | Composition | B(mm±0.05) | Error(mm) | |
TA-09 | 9 | 26 | 7/0.16±0.008MM | 0.99 | 11.43MM | ±0.15 |
UL 2651 Technical specification for 8conductor,9 core,......30conductor,40core,50conductor,60 conductor till 64conductor with 28AWG Gray flat ribbon cable
UL style | Maximum use temperature | Maximum operating voltage | Number of conductor | Conductor size | Finished outer diameter | ||
Size | Copper Wire number/wire diameter | Thickness mm±0.05 | Width mm±0.2 | ||||
AWG | No./mm±0.05 | ||||||
2651 | 105℃ | 300V | 8 | 28 | 7/0.127 | 0.90 | 10.16 |
9 | 28 | 7/0.127 | 0.90 | 11.43 | |||
10 | 28 | 7/0.127 | 0.90 | 12.70 | |||
12 | 28 | 7/0.127 | 0.90 | 15.24 | |||
14 | 28 | 7/0.127 | 0.90 | 17.78 | |||
16 | 28 | 7/0.127 | 0.90 | 20.32 | |||
20 | 28 | 7/0.127 | 0.90 | 25.40 | |||
26 | 28 | 7/0.127 | 0.90 | 33.02 | |||
30 | 28 | 7/0.127 | 0.90 | 38.10 | |||
34 | 28 | 7/0.127 | 0.90 | 43.18 | |||
40 | 28 | 7/0.127 | 0.90 | 50.80 | |||
50 | 28 | 7/0.127 | 0.90 | 63.50 | |||
60 | 28 | 7/0.127 | 0.90 | 76.20 | |||
64 | 28 | 7/0.127 | 0.90 | 81.28 | |||
