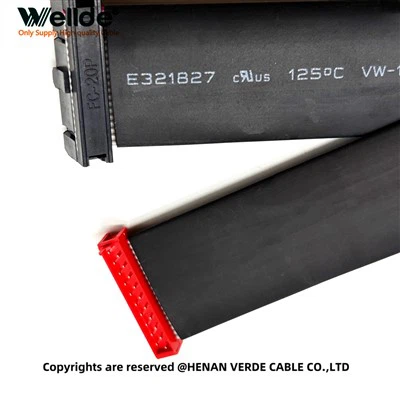

flat ribbon cable with IDC connector – flexible internal signal routing
Product Description
This flat ribbon cable is ideal for routing internal signals.
It provides stable performance even in compact spaces.
The cable features a low-profile PVC jacket with uniform conductor spacing.
Both ends are equipped with IDC connectors for quick installation.
It is suitable for industrial systems and electronic equipment.
Key Features:
- Flat cable with IDC connector
- 1.27 mm pitch for stable signals
- Flexible PVC insulation
- Stranded bare copper conductors
- Operating temperature: -20°C to +105°C
- RoHS and UL-certified
Applications:
- PCB to PCB flat cable connection
- Flat ribbon cable for industrial electronic equipment
- Data routing in printers, CNC machines, and instruments
- Product Advantages:
- Flat cables save more space than round cables
- Easy to bend for compact internal layouts
- Suitable for harsh environments
| UL Specification | Maximum use temperature | Maximum operating voltage | Number of conductors | Conductor | Finished outer diameter | ||
| Size | Wire number/wire diameter | Thickness mm±0.05 |
Width Wmm±0.2 |
||||
| AWG | No./mm±0.05 | ||||||
| 2651 | 105ºC | 300V | 8 | 28 | 7/0.127 | 0.90 | 10.16 |
| 9 | 28 | 7/0.127 | 0.90 | 11.43 | |||
| 10 | 28 | 7/0.127 | 0.90 | 12.70 | |||
| 12 | 28 | 7/0.127 | 0.90 | 15.24 | |||
| 14 | 28 | 7/0.127 | 0.90 | 17.78 | |||
| 16 | 28 | 7/0.127 | 0.90 | 20.32 | |||
| 20 | 28 | 7/0.127 | 0.90 | 25.40 | |||
| 26 | 28 | 7/0.127 | 0.90 | 33.02 | |||
| 30 | 28 | 7/0.127 | 0.90 | 38.10 | |||
| 34 | 28 | 7/0.127 | 0.90 | 43.18 | |||
| 40 | 28 | 7/0.127 | 0.90 | 50.80 | |||
| 50 | 28 | 7/0.127 | 0.90 | 63.50 | |||
| 60 | 28 | 7/0.127 | 0.90 | 76.20 | |||
| 64 | 28 | 7/0.127 | 0.90 | 81.28 | |||
