1.product description
Pair Twisted Speaker and Signal Communication Cable with Shield
Widely used for communication interface in data acquisition and Control applications
for Doorbel, household, hotel and so on. Multicore ( 2,4, 8 Insulation Core) Stranded Copper Conductor / PVC or HDPE Insulated / Copper Wire Braided Shield / Audio Control Cable
Type: 1Pair, 2Pair,4pair
Conductor: Annealed copper or Tinned copper
Conductor Type: Stranded, or Flexible
Insulation:PVC or HDPE
Shielding: Tinned copper wire braided and Aluminum foil layer
Sheathing:PVC , ROHS PVC
2.product data
| Cable Specificatioin | 2Pair(2×2×24AWG) | |
| Item | Data | |
| Conductor | area(mm2) | 0.2 |
| material | tinned copper wire | |
| structure(mm) | 7/0.20 | |
| Ref.dia(mm) | 0.60±0.05 | |
| Insulation | material | HD-PE |
| Non.thickness(mm) | 0.37 | |
| Ref.Dia(mm) | 1.34±0.05 | |
| Pair twisted | structure | 2芯 2core |
| mm | / | |
| Ref OD(mm) | 2.68±0.1 | |
| lapping | / | |
| Split screen | / | |
| Laying up | Laying up | 2groups |
| ref OD (mm) | 4.1±0.1 | |
| Shield | material | Al foil same with AWG22 |
| size of drain wire | 7/0.2 tinned copper wire | |
| Outer sheath | material | PVC sheath jacket gray color |
| Non thick.(mm) | 0.5 | |
| OD of finished cable(mm) | 5.1±0.2 | |
| Packing | 305meter or 500meter per drum | |
| DC.resistance of Conductorat 20℃ | ≯94.2Ω/KM | |

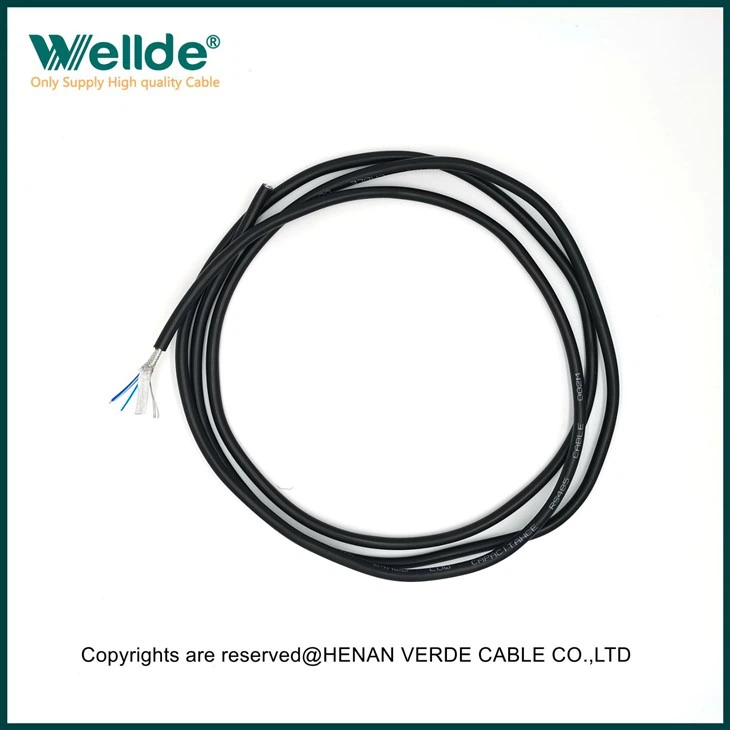

3.product images
4.FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: What is your packing way? Can I have the customized package?
A2: We have the standard export package. For more details about the customized package, please contact us.
Q3:Are you a factory or a trading company?
A3: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
