PV Solar Cable (Photovoltaic cable)
Applications:
Photovoltaic cables are particularly suitable for the connection of solar power generation device connectors and inverters, suitable for outdoor applications under different climatic conditions, and can also be adapted to indoor dry and wet working environments. 2PfG 1169/08.2007 EN50618:2014 covers the single core flexible cables (wires) used in DC sides of photovoltaic system whose max. permissible DC voltage is 1.8kV(line to line, non ground system). The product is applicable to the environment whose safety degree is under Class 2, and it can be parallel used.
Structure of Solar Photovoltaic cable:
Conductor: Tinned Copper Wire
Insulation: Cross-Linked LSZH Flame-Retardant Polyolefin Environment friendly material
Jacket / Sheath:Cross-Linked LSZH Flame-Retardant Polyolefin Environment friendly material
Hot sale specification: 4mm solar PV cable, 6mm PV cable ,10mm
Standard of PV Cable：
The product is manufactured according to the 2PfG 1169/08.2007 EN50618:2014 “The Requirement of Photovoltaic cable” standard.
Operating characteristics:
Rated voltage: AC 0.6/1kV; DC 1.8kV, AC 1.0/1.0kV; DC 1.5kV
Operating temperature: -40~90℃
Max. short circuit temperature:+120℃
Max. conductor temperature:+200℃
Service life shall not be less than 25 years
Ozone resistant and acid-resistant;
Good insulation resistance;
Good performance of cold bend and cold winding;
Low-smoke Zero Halogen;
Environmentally friendly, confirms to RoHS compliant.
For installation, the ambient temperature shall be not less than -20℃。
Bending radius of cable: 4D (D: overall diameter).
Solar Cable Structure of Photovoltaic Cable :Size and Technical Parameter:

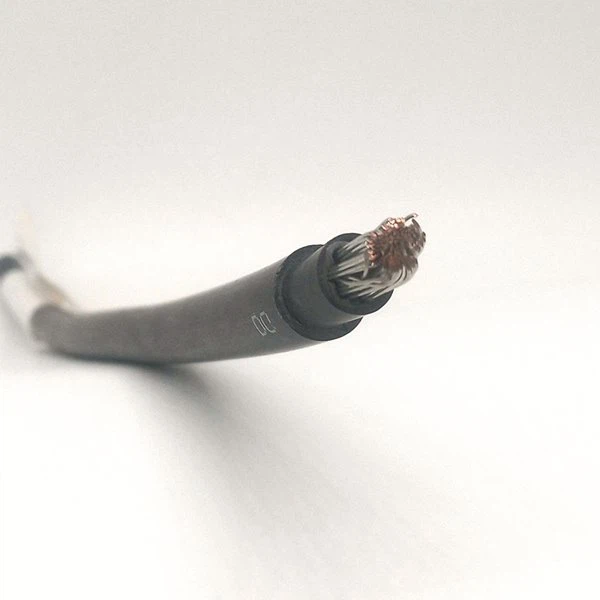

PV1-F crosslinked polyolefin insulation crosslinked polyolefin sheath solar photovoltaic cable
Nominal cross sectional area mm² | Tinned copper conductor type | Calculated conductor overall diameter(mm) | Calculated cable overall diameter(mm) | Calculated cable weight (kg/km) | Max. DC resistance at 20℃(Ω)/km |
1.5 | 5 | 1.6 | 5.1 | 41 | 13.7 |
2.5 | 5 | 2.0 | 5.5 | 53 | 8.21 |
4 | 5 | 2.6 | 6.2 | 73 | 5.09 |
6 | 5 | 3.2 | 6.8 | 96 | 3.39 |
10 | 5 | 4.2 | 7.9 | 149 | 1.95 |
16 | 5 | 5.5 | 9.2 | 208 | 1.24 |
25 | 5 | 7.2 | 11.2 | 310 | 0.795 |
35 | 5 | 8.2 | 12.2 | 411 | 0.565 |
Cable current-carrying capacity
Ambient Temperature:60℃
Max. conductor temperature:120℃
Table 1 Current-carrying Capacity of PV1-F Cable under ambient temperature 60 ℃
Nominal cross sectional area | Installation Type | ||
Single core cable laid in free circulation of air | Single core cable laid on the ground surface | Paralled cable on the ground surface | |
mm² | A | A | A |
1.5 | 30 | 29 | 24 |
2.5 | 40 | 39 | 33 |
4 | 55 | 52 | 44 |
6 | 70 | 67 | 57 |
10 | 98 | 93 | 79 |
16 | 132 | 125 | 107 |
25 | 176 | 167 | 142 |
35 | 218 | 207 | 176 |
Our Xlpo Insulation Photovoltaic Cable Solar Cable 6mm 300mm2 PV Cable are of high quality and can fully bear your trust. Win the market with quality. Ensuring quality and continuous improvement is the company's consistent quality policy. Through the integration of internal and external resources, our company constructs its own value network, through which we can create value and make profits.
