High Resilience Flexible Spiral Coiled Cable
Flexible and high elastic spiral coiled cable can be for mobile use, power supplying，mechanical engineering, medical equipment,,for car and truck,for moving lamps, different electric machines and equipment, for robot and industrial automation devices.Spiral cable is water resistant,so it can be used in wet indoor and outdoor environment，
Export experience and hot sale to: USA,UK,Poland,Switzerland,Croatia, Ukraine, Mexico, Chile, Malaysia, Thailand, Philippines,UAE,South Africa
Structure of Spiral Coiled Cable
conductor: | fine stranded OFC copper wire (oxygen free copper),according to IEC60227 60228 VDE0295 Class 5 |
Conductor insulation: | Flexible PVC or TPE |
Insulation wire color and identification | White blue red black green or customized as er customer’s request |
Wrapping tape | Special non-woven Wrap cushioning |
Jacket material | PU or TPEE |
Outer jacket color: | Black, gray, Green, Yellow,Red,more colors can be customized as per customer’s request. |
Advantage & characteristic:
special characteristic | coil stretched length is at least 4times of unextended length |
High resilience(typical big coil), TPEE jacket | |
Advantage | abrasion resistance,water and oil resistance,highly flexible,high resilience,UV-resistance |
OEM and Customized | We can customize special and different types of spiral coiled cable. |
Specification of Electrical Spiral coiled cable
Section area of conductor: | 0.1mm,0.15mm, 0.20mm, 0.25mm2, 0.50mm2, 0.75mm2, 1.0mm2, 1.5mm, 2.0mm2,2.5mm, 4.0mm |
Core number: | from 1core ,2core, 3core,4core, 5core, 6core, 7core,8core,10core....till 30core |
More specifications can be customized as per customer’s requirements.Colors: shiny gloss, or fog,different colors can be chosen as what you like such as black, green, yellow, blue,red | |
Technical parameters:
Rated voltage | 0.75-1.0mm² 300/500V ，1.5mm² 2.0mm²: 450/750V |
Test voltage | 3000V |
Insulation resistance | >20 Gohm × cm |
Operating temperature: | -60℃ ~ 105℃ |
Flame resistance: | following IEC60332-1 or 2 |

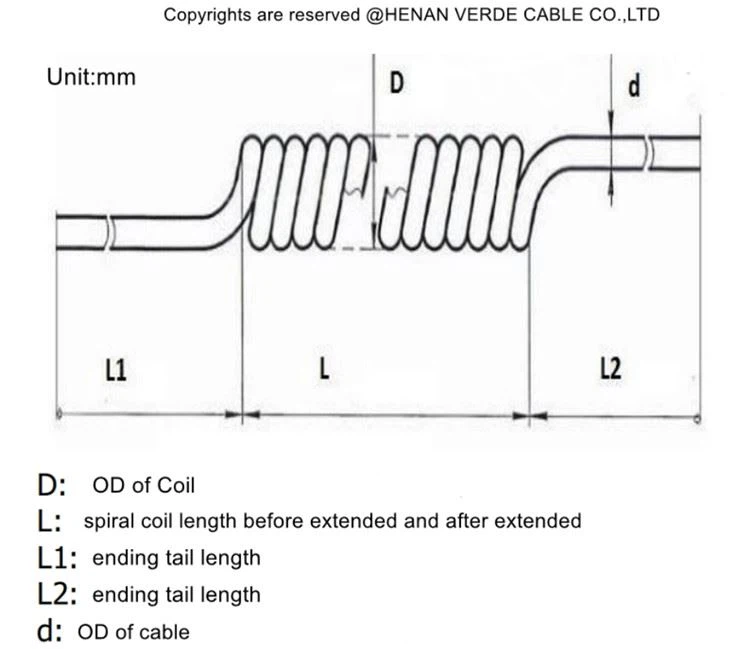

Technical drawing for spiral coiled cable

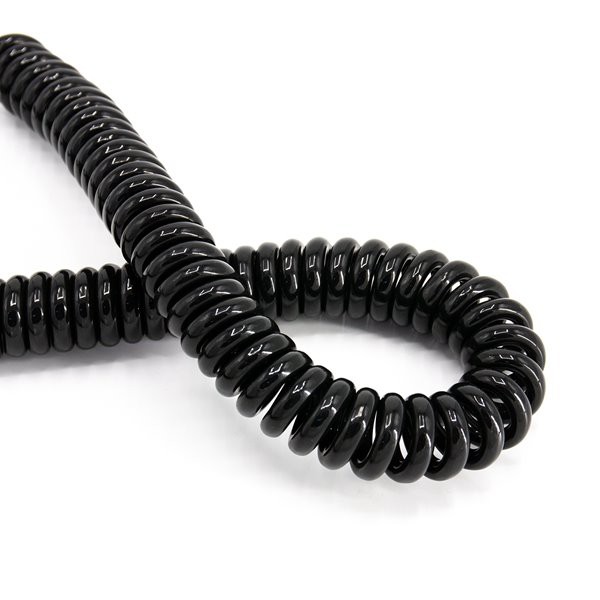

We guarantee that every UV Resistance Flexible 4cores 5cores 7core PUR Spiral Wire Coiled Cable we operate has undergone strict quality control to ensure product quality and price advantage. With the development and growth of the enterprise, the company constantly cultivates and absorbs excellent management and technical personnel to fill the various management levels, which plays a strong support to the steady development of the enterprise. We rely on our own unique advantages to provide our users with products of excellent quality, reasonable price, complete variety and fast and efficient services.
