Structure of spiral coil cable
Conductor: Oxygen-free copper wire, multi stranding wires
Insulation material: PVC , or PE ,or PP,customer can choose as per your needs.
Sheath material: PU / TPU PUR, or TPEE
For truck Spiral Coil Cable:
PVC is not suggested to be used as jacket.Coil for truck and car required high resilience,jacket need be PUR
Spiral length after extended and expanding: 4times of static length at least
Color: gloss shiny or fog can be for choice. Black, Red , Green, Blue , Yellow, Orange, White, different colors can be customized.
Specification and technical data:
Core no: 1core,2core,3core,4 core,5core,7core ,8core...till to 30core
Specification(section area):from 0.10mm,0.25mm...0.75mm... 1.5mm,till 4.0mm2
Gauge size: AWG28,awg276,awg 24, awg 22,awg20,awg18, awg16, awg14
Cable OD and Spiral OD: as per customer’s data Spiral OD bigger than 85mm: TPEE jacket is suggested.(Remarks: TPEE is harder than PU,but its resilience is excellent，it can keep spiral coil well for long time).
Coil number: 5 coils,7coils,15coils,more coils can be customized
Ending length(tail straight part) for two sides: 50mm / 1000mm /1500mm /2000mm /2500mm /4000mm ...till 2meter,4meter different length can be customized as per customer’s request
2. Technical parameter of Spiral Coil Cable:
Rated voltage: from 80V till 300V Testing voltage : 3000V
Insulation
resistance: >20 Gohm×cm
operating temperature : -40ºC - +90ºC
Flame retardancy : according to IEC60332 Spiral /Coil Extended
length: our cable can arrive at 5times of static length
3. Customer can show the data you required according to following drawing

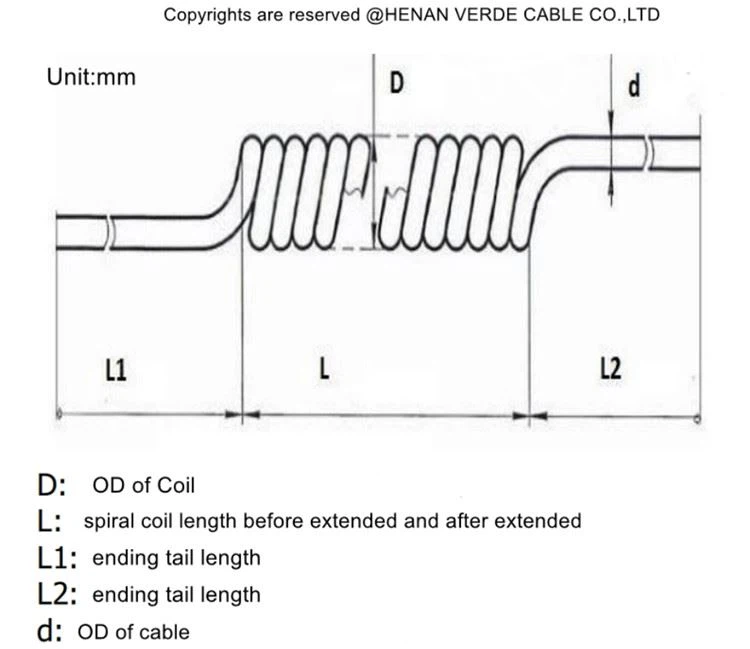

Drawing No.1

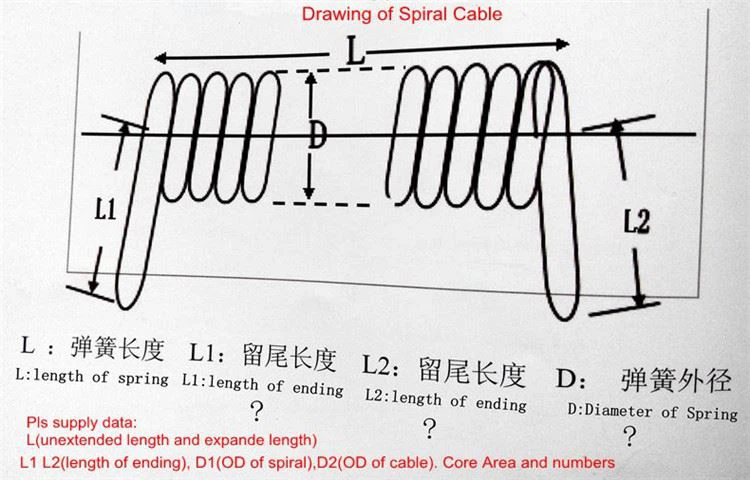

Drawing No.2: Different ending tail direction
