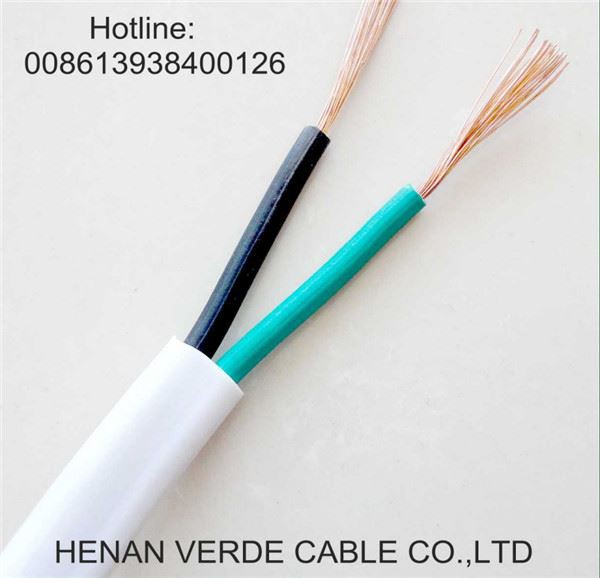

Description & Structure for PVC Insulated PVC Sheathed Flat Cable:
Conductor:solid or stranded copper, Aluminum, CCA
Insulation: PVC
Sheath: PVC
Shape: flat
Core number: 2, 3
Rated voltage:300/500 V, 450/750V,under or up to 450/750V,
Sectional area(mm2): 0.75~10mm2
Color: White, Gray, Black or customized
Packing:in roll by plastic bag or wooden drumType name:BVVB,BLVVB
Technical Data of PVC Insulated PVC Sheathed Flat Cable
Type name | Description | Properties |
BVVB | Copper-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70℃ |
BLVVB | Aluminum-core PVC insulated PVC sheathed flat wire | In normal case, max. temperature of conductor shall be 70℃ |
Core no & section area, | Conductor | Nominal | Nominal | Average external size, mm | DC resistance ≤Ω/km at 20°C | ||
mm | structure | insulation | sheath | ||||
No./mm | thickness | thickness mm | |||||
mm | Min. | Max. | Copper | Aluminum | |||
2×0.75 | 1/0.97 | 0.6 | 0.9 | 3.8×5.9 | 4.6×7.1 | 24.5 | - |
2×1.0 | 1/1.13 | 0.6 | 0.9 | 3.9×6.1 | 4.8×7.4 | 18.1 | - |
2×1.5 | 1/1.38 | 0.7 | 0.9 | 4.4×7.0 | 5.3×8.5 | 12.1 | - |
2×2.5 | 1/1.78 | 0.8 | 1 | 5.1×8.4 | 6.2×10.1 | 7.41 | 12.1 |
2×4 | 1/2.25 | 0.8 | 1 | 5.6×9.2 | 6.7×11.1 | 4.61 | 7.41 |
2×4 | 7/0.85 | 0.8 | 1 | 5.7×9.5 | 6.9×11.5 | 4.61 | - |
2×6 | 1/2.78 | 0.8 | 1.1 | 6.2×10.4 | 7.5×12.5 | 3.08 | 4.61 |
2×6 | 7/1.04 | 0.8 | 1.1 | 6.4×10.8 | 7.8×13.0 | 3.08 | - |
2×10 | 7/1.35 | 1 | 1.2 | 7.9×13.4 | 9.5×16.2 | 1.83 | 3.08 |
3×0.75 | 1/0.97 | 0.6 | 0.9 | 3.8×7.9 | 4.6×9.6 | 24.5 | - |
3×1.0 | 1/1.13 | 0.6 | 0.9 | 3.9×8.4 | 4.8×10.1 | 18.1 | - |
3×1.5 | 1/1.38 | 0.7 | 0.9 | 4.4×9.6 | 5.3×11.7 | 12.1 | - |
3×2.5 | 1/1.78 | 0.8 | 1 | 5.1×11.6 | 6.2×14.0 | 7.41 | 12.1 |
3×4 | 1/2.25 | 0.8 | 1.1 | 5.8×13.1 | 7.0×15.8 | 4.61 | 7.41 |
3×4 | 7/0.85 | 0.8 | 1.1 | 5.9×13.5 | 7.1×16.3 | 4.61 | - |
3×6 | 1/2.78 | 0.8 | 1.1 | 6.2×14.5 | 7.5×17.5 | 3.08 | 4.61 |
3×6 | 7/1.04 | 0.8 | 1.1 | 6.4×15.1 | 7.8×18.2 | 3.08 | - |
3×10 | 7/1.35 | 1 | 1.2 | 7.9×19.0 | 9.5×23.0 | 1.83 | 3.08 |
