Product Description:

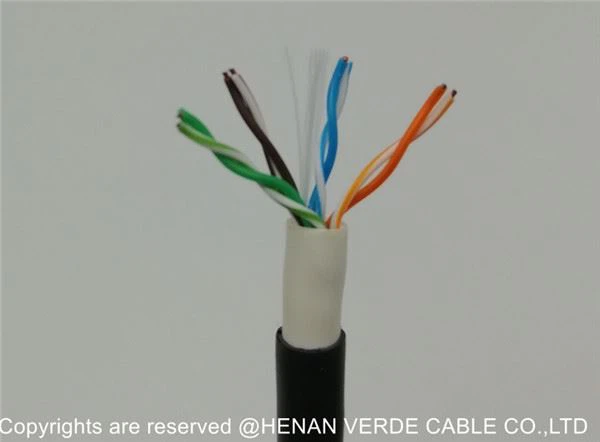

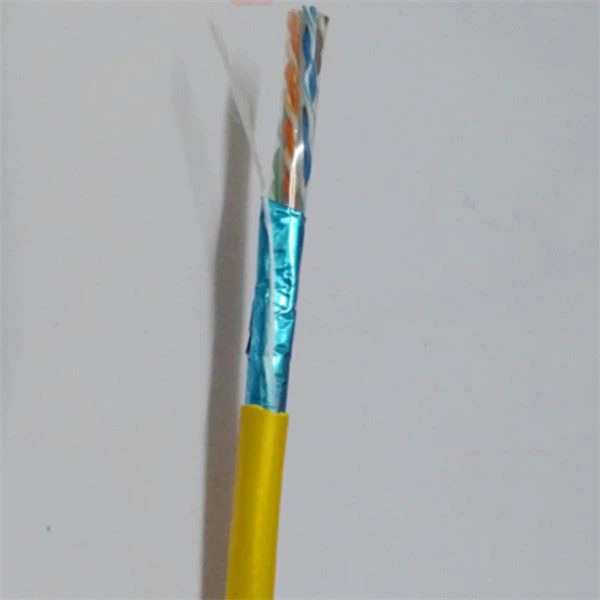

Type: Outdoor FTP Cat5e Cable Aluminum Foil Screened Network Cable
Application:Outdoor LAN wiring
Structure for Outdoor FTP Cat5e:
Conductor | 24 AWG copper wire |
Insulation | HDPE or foamed PE,white insulated wire with color marks |
Pair color | White-blue/blue,white-orange,white-green/green,white-brown/brown |
Ground electrode | Tinned copper wire |

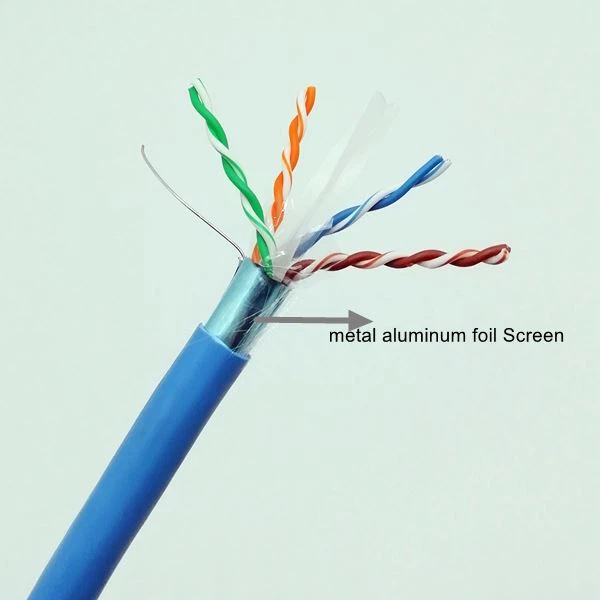

shielding | Aluminum plastic composite Tape |
Jacket | PVC+ black LLDPE, nominal diameter 6.1+/- 0.5 mm |
Auxiliaries | Poly ribbon, without rip cord, or as per customers’ option |
printing | As per customers’ requirements |
Testing standard of Outdoor FTP Cat5e:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
Max pulling force | 50N |
Min. bent radius | 60mm |
Nominal weight | 50Kg/Km |
Work temperature | -15~+70℃ |
Install temperature | +5~+40℃ |
Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
Product length | Standard length305m |
Electrical property for Outdoor FTP Cat5e:
Frequency (Mhz) | RL (dB) | ATT (Db/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | Property Impedance (ohm) |
0.772 | 16.4 | 1.85 | 67 | 64 | 67.8 | 100±15 |
1 | 17 | 2.04 | 65.3 | 62.3 | 63.8 | |
4 | 20 | 4.1 | 56.3 | 53.3 | 51.7 | |
8 | 21 | 5.8 | 51.8 | 48.8 | 45.7 | |
10 | 22 | 6.5 | 50.3 | 47.3 | 43.8 | |
16 | 20 | 8.2 | 47.3 | 44.3 | 39.7 | |
20 | 20 | 9.3 | 45.8 | 42.8 | 37.7 | |
25 | 22.5 | 10.4 | 44.3 | 41.3 | 35.8 | |
31.25 | 18 | 11.7 | 42.9 | 39.9 | 33.9 | |
62.5 | 16 | 17 | 38.4 | 35.4 | 27.8 | |
100 | 15 | 22 | 35.3 | 32.3 | 23.8 |
