Application of ASTVRP High Temperature Wire:
ASTVRP electric wire is mainly used for electric appliance equipment, interconnector of equipment and instrument,Internal wiring of electrical electronic equipment and automation equipment, etc.
Advantage of ASTVRP
It has the good character of Anti-interference, oil resistance,anti-corrosion, anti-aging and so on.

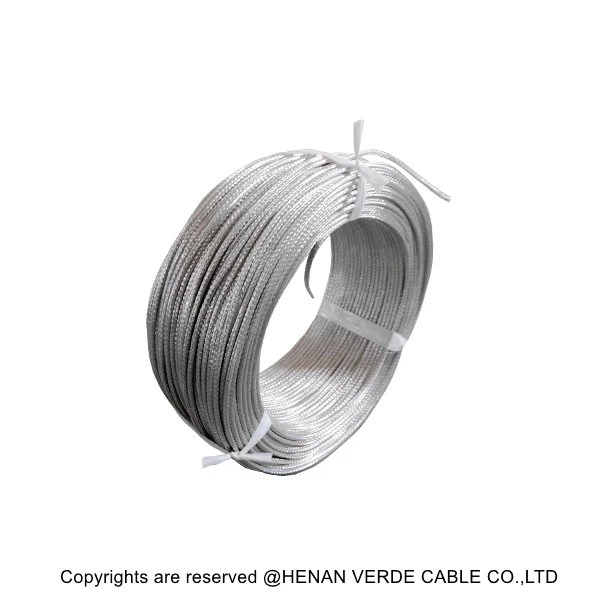

Structure of ASTVRP High Temperature Wire:
Stranded bare Copper,or tinned copper Conductor with Silk wrapping, PVC /ROHS PVC insulation,Tinned copper wire braided shield outer layer
Color: silver white color.
Voltage:
300/500V and below
Working temperature:
-20℃-75℃ Max.105℃
Technical Data for part of ASTVR Wire,ASTVRP High Temperature Wire
Area | Structure (mm) | Max.OD (mm) | Conductor resistance at 20℃ | Insulation resistance at 70℃ | Calculated weight Kg/km | ||
mm2 | Stranding Nos/dia. per wire | ASTVR | ASTVRP | ≤Ω/km | ≥MΩ·m | ASTVR | ASTVRP |
0.06 | 7/0.1 | 1.5 | 1.9 | 384 | 17 | 2.1 | 6.0 |
0.1 | 12/0.1 | 1.6 | 2.0 | 214 | 17 | 2.8 | 7.2 |
0.12 | 7/0.15 | 1.8 | 2.2 | 163 | 16 | 3.1 | 7.5 |
0.14 | 7/0.16 | 1.9 | 2.3 | 143 | 16 | 3.4 | 7.9 |
0.2 | 7/0.2 | 2.0 | 2.4 | 95.0 | 14 | 4.4 | 9.3 |
0.3 | 16/0.15 | 2.1 | 2.5 | 71.2 | 14 | 5.4 | 10.7 |
0.35 | 20/0.15 | 2.1 | 2.5 | 57.0 | 12 | 6.2 | 11.6 |
0.4 | 23/0.15 | 2.3 | 2.7 | 49.6 | 12 | 7.2 | 13.0 |
0.5 | 16/0.2 | 2.5 | 2.9 | 40.1 | 12 | 9.3 | 15.8 |
0.75 | 24/0.2 | 2.7 | 3.1 | 26.7 | 10 | 12.7 | 20.0 |
1.0 | 32/0.2 | 2.9 | 3.4 | 20.0 | 10 | 17.0 | 25.4 |
1.5 | 30/0.25 | 3.2 | 3.9 | 13.7 | 9 | 23.1 | 37.3 |
2.0 | 49/0.23 | 3.5 | 4.1 | 10 | 9 | 27 | 41 |
2.5 | 49/0.25 | 3.8 | 4.4 | 8.21 | 8 | 34 | 50 |
