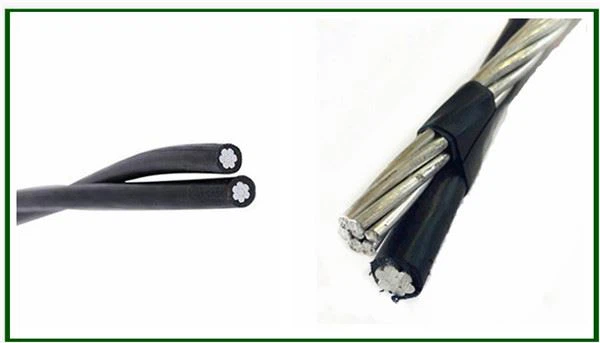

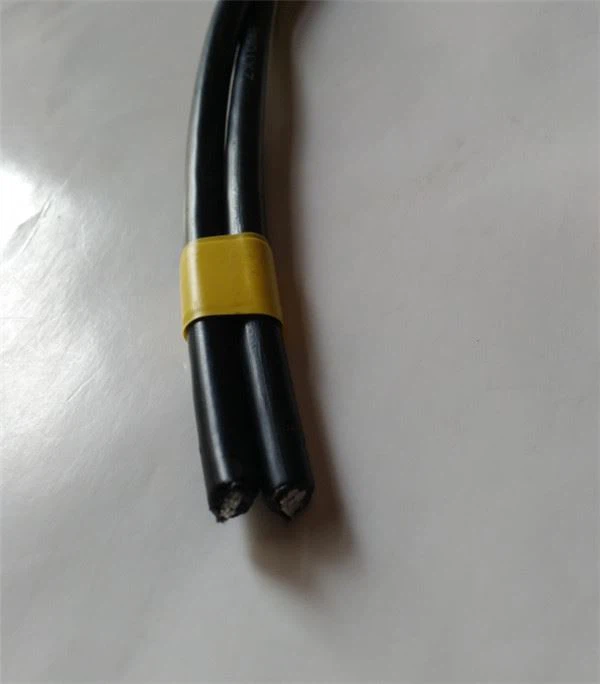

Duplex Overhead ABC Cable
1. Application:
To supply 120V aerial service for temporary service at construction sites, outdoor or street lighting,For service at 600 volt or lower at a conductor temperature with 75℃ at most.
2. Structure of Duplex Overhead ABC Cable:
Aluminum conductor, PE or XLPE Insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.
3. Duplex Overhead ABC Cable Standard: IEC,ASTM
4. Packing:
Wooden Drum,Steel wooden drum

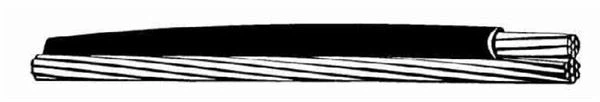

5. Drawing of Duplex service drop cable
6. Here list one part of technical data: Neutral messenger is ACSR
Neutral messenger can be also AAAC or AAC with XLPE insulation,if you want to know more, pls contact us and send email to linda@welldecable.com
Code word | AWG or kcmil | Bare neutral messenger | Phase conductor | Weight (kg/km) | ||
ACSR stranding and wires dia. (mm) | Rated strength (lbs) | AAC | Insulation thickness (mm) | |||
Stranding and wires dia. (mm) | ||||||
Setter | 1*6AWG+1*6AWG | 1/1.68+6/1.68 | 1190 | 1/4.11 | 1.14 | 111 |
Shepherd | 1*6AWG+1*6AWG | 1/1.68+6/1.68 | 1190 | 7/1.56 | 1.14 | 113 |
Eskimo | 1*4AWG+1*4AWG | 1/2.12+6/2.12 | 1860 | 1/5.19 | 1.14 | 171 |
Terrier | 1*4AWG+1*4AWG | 1/2.12+6/2.12 | 1860 | 7/1.96 | 1.14 | 173 |
Chow | 1*2AWG+1*2AWG | 1/2.67+6/2.67 | 2850 | 7/2.47 | 1.14 | 266 |
Bull | 1*1/0AWG+1*1/0AWG | 1/3.37+6/3.37 | 4380 | 19/1.89 | 1.52 | 427 |
