Our High Voltage Silicone Wire, 5 Core PVC Insulated Cable, THHN Wire are of high quality and low price, helping users reduce costs, and at the same time, we have won a high reputation. Our company has a complete product line and high market recognition. We have achieved extraordinary success and received wide acclaim in the key elements of our business, such as product leadership, value service, talent strategy, market reputation, capital structure, and social influence. Our vision is to be able to make our industry bigger and stronger with our own efforts to build an international brand. Our company takes every product and every project seriously and wins the trust of users with high quality.
Application of Single Core PVC Insulated Power Cable
It is used to transmit and distribute electric power for rated AC Voltage U0/ U (600/1000V) and below electric distribution lines.Also for overhead or underground or earth grounding cable,indoors or outdoors.
Executive standard
GB/T12706, IEC60502-1) Rated Voltage 1kV(Um=1.2kV)Power cable

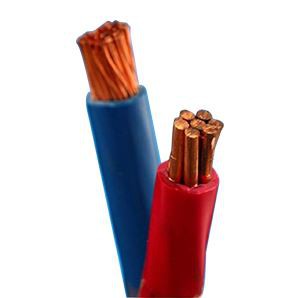

Cable Structure of Single Core PVC Insulated Power Cable
Conductor: OFC copper, stranded copper wire
Insulation: PVC or ROHS PVC
Sheath: with sheath PVC or Rohs PVC or Non-sheath
Single Core PVC Insulated Power Cable is common used for building and light, also for solar power project.Cable can be flexible type or common type,fixed application or mobile moving application.
Technical data:here list one part of technical data.If you want more,pls contact us by email: linda@welldecable.com
Nominal Area mm2 | Non armored | Tape-armored | Wire-armored | ||||||
Reference Diameter mm | Approximate Weight kg/km | Reference Diameter mm | Approximate Weight kg/km | Reference Diameter mm | Approximate Weight kg/km | ||||
VV | VLV | VV62 | VJLV62 | VV72 | VLV72 | ||||
1*4 | 6.8 | 87 | 64 | / | / | / | / | / | / |
1*6 | 7.2 | 110 | 71 | / | / | / | / | / | / |
1*10 | 8.0 | 165 | 96 | / | / | / | / | / | / |
1*16 | 8.9 | 220 | 123 | / | / | / | / | / | / |
1*25 | 10.4 | 345 | 172 | 15.5 | 16.4 | 511 | 16.0 | 680 | 525 |
1*35 | 11.5 | 424 | 212 | 17.0 | 17.0 | 615 | 17.5 | 917 | 700 |
1*50 | 13.0 | 555 | 274 | 18.4 | 18.7 | 799 | 19.2 | 1142 | 833 |
1*70 | 14.0 | 770 | 354 | 20.2 | 20.4 | 1022 | 20.9 | 1414 | 980 |
1*95 | 16.4 | 1040 | 474 | 22.5 | 22.4 | 1307 | 23.6 | 1887 | 1299 |
1*120 | 17.8 | 1290 | 565 | 24.1 | 23.6 | 1558 | 25.0 | 2201 | 1457 |
1*150 | 20.6 | 1590 | 690 | 26.1 | 25.8 | 1900 | 27.0 | 2600 | 1671 |
1*185 | 22.5 | 1944 | 854 | 28.3 | 27.9 | 2292 | 29.1 | 3065 | 1919 |
1*240 | 24.9 | 2510 | 1092 | 31.4 | 30.7 | 2888 | 31.9 | 3759 | 2271 |
1*300 | 27.3 | 3176 | 1345 | 36.4 | 33.5 | 3536 | 35.5 | 4756 | 2896 |
1*400 | 34.1 | 4160 | 1680 | 40.0 | 37.6 | 4597 | 39.7 | 5992 | 3513 |
1*500 | 36.6 | 5195 | 2096 | 40.7 | 5629 | 2531 | 42.8 | 7167 | 4069 |
1*630 | 40.2 | 6451 | 2546 | 44.4 | 6930 | 3026 | 47.4 | 9044 | 5139 |
We provide professional and personalized Double Insulated Aluminum Cable PVC Wire Single Core Power Cable and solutions according to the different needs of customers. We have been your best choice. We attach great importance to the efficiency and results of our work and advocate effective operation.
