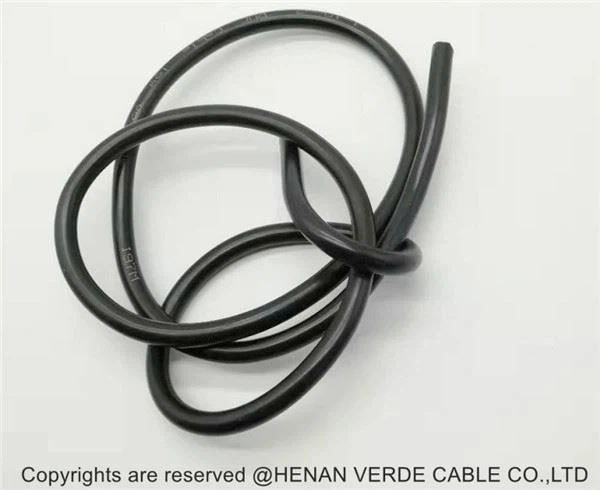

1. Description of PVC Insulated Flexible Electric Wire:
Rated voltage 300/500V,450/750V Flexible Wire Cable
Conductor class: class5 Flexible soft stranded wire
Conductor material: Stranded Copper or Stranded Tinned CopperInsulation: PVC
Sheath: PVC or Rohs PVC or LSZH LSOH Jacket can be chosen by your requests.
2.Specification of PVC Insulated Flexible Electric Wire:
Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........95mm2
More size and specification can be customized
3.Insulation Color:
Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's
request
4.Packing:
1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
5,Technical Data List of PVC Insulated Flexible Electric Wire
1). Type: Single core Flexible Cable H07V-R wire
Standard:GB/T 5023-2008,IEC60227,228, Different Standard can be customized according to your requirement | ||||||
Description:general single core Flexible wire | ||||||
Type in National standard:60227 IEC 02(RV) 450/750V H07V-R | ||||||
Size | Conductor class | Conductor Structure | Nominal Thickness of Insulation | Outer insulation diameter | D.C Resistance of conductor | Calculated Weight |
(mm2) | Nos /dia (mm) | mm | mm | Ω/km | kg/km | |
1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 |
2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 |
4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 |
6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.3 | 70.6 |
10 | 5 | 77/0.40 | 1 | 6.7 | 1.91 | 122.9 |
16 | 5 | 119/0.40 | 1 | 7.8 | 1.21 | 176.3 |
25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.78 | 272 |
35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 |
50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 |
70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 |
95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 |
120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 |
150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 |
185 | 5 | 888/0.50 | 2 | 24.3 | 0.106 | 1862.5 |
240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 |
Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 | ||||||
2)Type:Multi core Flexible cable H03VV-F / H05VV-F
Section | Max. diam. | Insulation | Sheat | Outer | Max. resistance | Cable |
of conductor | thickness* | thickness* | diameter | at 20°C | weight | |
mm² | mm | mm | mm | mm | ohms/km | kg/km |
H05VVH2-F | ||||||
2x0,75 | 0,21 | 0,6 | 0,8 | 3,9X6,2 | 26,0 | 41 |
2x1,00 | 0,21 | 0,6 | 0,8 | 4,05X6,5 | 19,5 | 56 |
H05VV-F | ||||||
2x0,75 | 0,21 | 0,6 | 0,8 | 6,2 | 26,0 | 59 |
2x1,00 | 0,21 | 0,6 | 0,8 | 6,5 | 19,5 | 67 |
2x1,5 | 0,26 | 0,7 | 0,8 | 7,4 | 13,3 | 91 |
2x2,5 | 0,26 | 0,8 | 1,0 | 9,1 | 7,98 | 139 |
2x4 | 0,31 | 0,8 | 1,1 | 10,4 | 4,95 | 159 |
3x0,75 | 0,21 | 0,6 | 0,8 | 6,55 | 26,0 | 71 |
3x1,00 | 0,21 | 0,6 | 0,8 | 6,9 | 19,5 | 83 |
3x1,5 | 0,26 | 0,7 | 0,9 | 8,05 | 13,3 | 114 |
3x2,5 | 0,26 | 0,8 | 1,1 | 9,85 | 7,98 | 175 |
3x4 | 0,31 | 0,8 | 1,2 | 11,25 | 4,95 | 244 |
4x0,75 | 0,21 | 0,6 | 0,8 | 7,2 | 26,0 | 88 |
4x1,00 | 0,21 | 0,6 | 0,9 | 7,75 | 19,5 | 104 |
4x1,5 | 0,26 | 0,7 | 1,0 | 9,0 | 13,3 | 146 |
4x2,5 | 0,26 | 0,8 | 1,1 | 10,8 | 7,98 | 217 |
4x4 | 0,31 | 0,8 | 1,2 | 12,3 | 4,95 | 305 |
5x0,75 | 0,21 | 0,6 | 0,9 | 8,05 | 26,0 | 114 |
5x1,00 | 0,21 | 0,6 | 0,9 | 8,45 | 19,5 | 131 |
5x1,5 | 0,26 | 0,7 | 1,1 | 10,05 | 13,3 | 188 |
5x2,5 | 0,26 | 0,8 | 1,2 | 12,0 | 7,98 | 279 |
5x4 | 0,26 | 0,8 | 1,4 | 13,9 | 4,95 | 398 |
Rated voltage: 300/300V & 300/500V
Conductor: Stranded bare copper
Insulation: PVC
Color: White or as customer's request.
Size: 0.5mm² To 4.0mm²
