We strictly control the quality of House Wire, Quadruplex ABC Power Cable, Triplex ABC Cable. There is no position in front of the quality and everyone is equal. We have unified and standardized management within the company based on the principle of specialization and flattening. We continue to improve the happiness, sense of honor and sense of belonging of employees, to achieve the common development of enterprises and employees. We have established an employee wage increase and equal negotiation mechanism, reasonably arranged employees' rest and vacation, and respected employee's personality. We have an advanced production team, a mature design team, and a passionate sales team.
Building wire Specification:
Single core:1.5mm, 2.5mm, 4mm2, 6 mm2, 10mm2, 16mm2, 25mm2
AWG Size:
AWG16 15# 14# 13# 12#.......AWG8 ,AWG7, AWG6,AWG5 AWG4
Cable Structure and material:
Conductor Material:
OFC copper, stranded copper wire,
Aluminum,
CCA
Insulation:
PVC or Rohs PVC(Lead free)
Technical data:here list one part of technical data.If you want more,pls contact us by email: linda@welldecable.com
Technical Datasheet PVC building wire
Conductor | Nominal.thickness of insulation(mm) | Average Overall Dia.(mm) | Max.DC Resist of conductor at 20℃ Ω/km | |||
Cross-section area(mm2) | Structure（no/mm) | Lower | Upper | Copper | ||
1.5 | 1/1.38 | 0.7 | 2.6 | 3.2 | 12.1 | |
1.5 | 7/0.52 | 0.7 | 2.7 | 3.3 | 12.1 | |
2.5 | 1/1.78 | 0.8 | 3.2 | 3.9 | 7.41 | |
2.5 | 7/0.68 | 0.8 | 3.3 | 4.0 | 7.41 | |
4 | 1/2.25 | 0.8 | 3.6 | 4.4 | 4.61 | |
4 | 7/0.85 | 0.8 | 3.8 | 4.6 | 4.61 | |
6 | 1/2.76 | 0.8 | 4.1 | 5.0 | 3.08 | |
6 | 7/1.04 | 0.8 | 4.3 | 5.2 | 3.08 | |
10 | 1/3.57 | 1.0 | 5.3 | 6.4 | 1.83 | |
10 | 7/1.35 | 1.0 | 5.6 | 6.7 | 1.83 | |
16 | 7/1.70 | 1.0 | 6.4 | 7.8 | 1.15 | |
25 | 7/2.14 | 1.2 | 8.1 | 9.7 | 0.727 | |

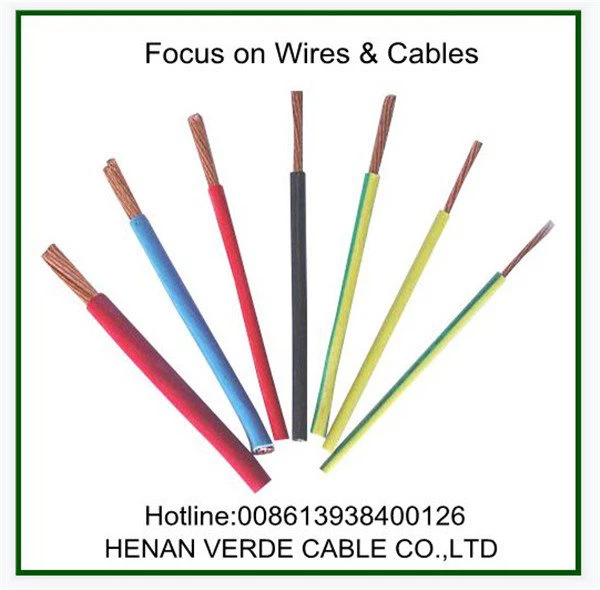

The Copper Conductor and PVC Insulation Cheap Price PVC Insulation Flexible Wire/Building Wire Rvv Screen Security Alarm Cable produced by the company enjoys a good reputation in our industry and customer groups. We promise to continue to win the trust of our new and old customers with reliable quality and excellent service! On the basis of continuous research and development and breakthroughs, we continue to seek new horizons for development, create more high-end technologies and products, and disseminate them to the society, and continuously transform them into productivity and social wealth.
