Core Construction & Technical Parameter
- Conductor: Stranded oxygen-free bare copper, high flexibility, excellent conductivity
- Insulation: High elastic rubber, insulation stable, anti-break
- Filler: Rubber strip/cotton yarn/PP rope, round cable shaping
- Outer Sheath: Reinforced rubber, wear&oil&UV resistant
- Working Temp: -20℃~60℃ , -40℃~90℃
Technical Specifications
(Custom configurations available upon request.)
|
Classification |
YZ/H05RN-F/Light-Duty Rubber Cable |
YZW/Medium-Duty Rubber Cable |
YC/YCW/H07RN-F/Heavy-Duty Rubber Cable |
|
Standard |
JB/T 8735,GB/T 5023 |
JB/T 8735,GB/T 5023 |
JB/T 8735,GB/T 12706,IEC 60245 |
|
Voltage |
300/500V |
300/500V |
450/750V |
|
Section |
0.75--2.5 mm²,2--3 cores |
0.75--6 mm²,2--5 cores |
1--70 mm²,2--5 cores |
|
Characteristic |
Thin sheath, soft, lightweight, economical |
Thick protective sheath, wear-resistant, oil resistant, light drag resistant, suitable for outdoor use |
High strength thick rubber, oil resistant, roller resistant, drag resistant, waterproof, weather resistant, and anti-aging |
|
Purpose |
Indoor, dry environment, handheld power tools, small appliances, mobile sockets |
Temporary power supply for construction sites, garden machinery, small water pumps, and mobile equipment in workshops |
Cranes, tower cranes, mines, ports, welding machines, construction machinery, outdoor heavy-duty mobile equipment |
Application Fields of Rubber Cable
- Industrial Heavy Load: Cranes, hoists, mining & port equipment

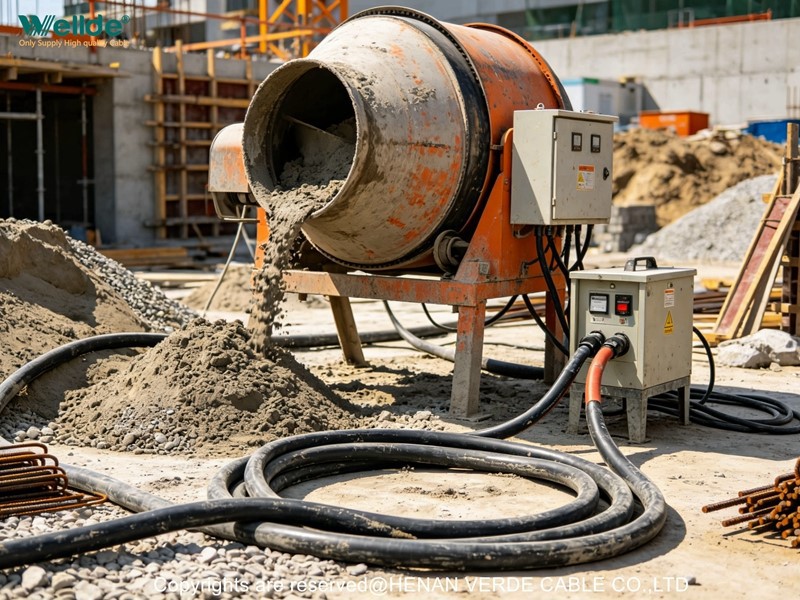

- Construction Outdoor: Site temporary power, concrete mixer, stage lighting
- Electric Tools: Welders, submersible water pumps, handheld power tools
- Harsh Environment: Humid/oily workshop, outdoor UV exposure, frequent dragging&bending equipment
- New Energy: Solar inverter, energy storage cabinet, mobile transformer connecting
Factory Advantage, Certification & Package
- Certifications: CE, RoHS, CCC, ISO9001, meet EU & global market access requirement
- Factory Supply: Henan original manufacturer, monthly output 500KM, strict raw material inspection & finished cable test
- Custom Service: Custom core number, cross-section, length, printing OEM brand & marks
- Packing: Standard wooden/plastic reel + moisture-proof film; Optional coil packing/pallet packing as client demand
